SQUARE D

Meter accessory, EZ Meter-Pak, lug kit, 400A, mechanical

METERING LUG KIT (MECH. LUGS)

SQDCMELK4 CMELK4 785901074236
53.44 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Meter accessory, EZ Meter-Pak, lug kit, 400A, mechanical-2
  • Country of Origin: USA
  • Depth: 1.94 in
  • Height: 3.06 in
  • Warranty Length: 18 mth
  • Width: 6.63 in

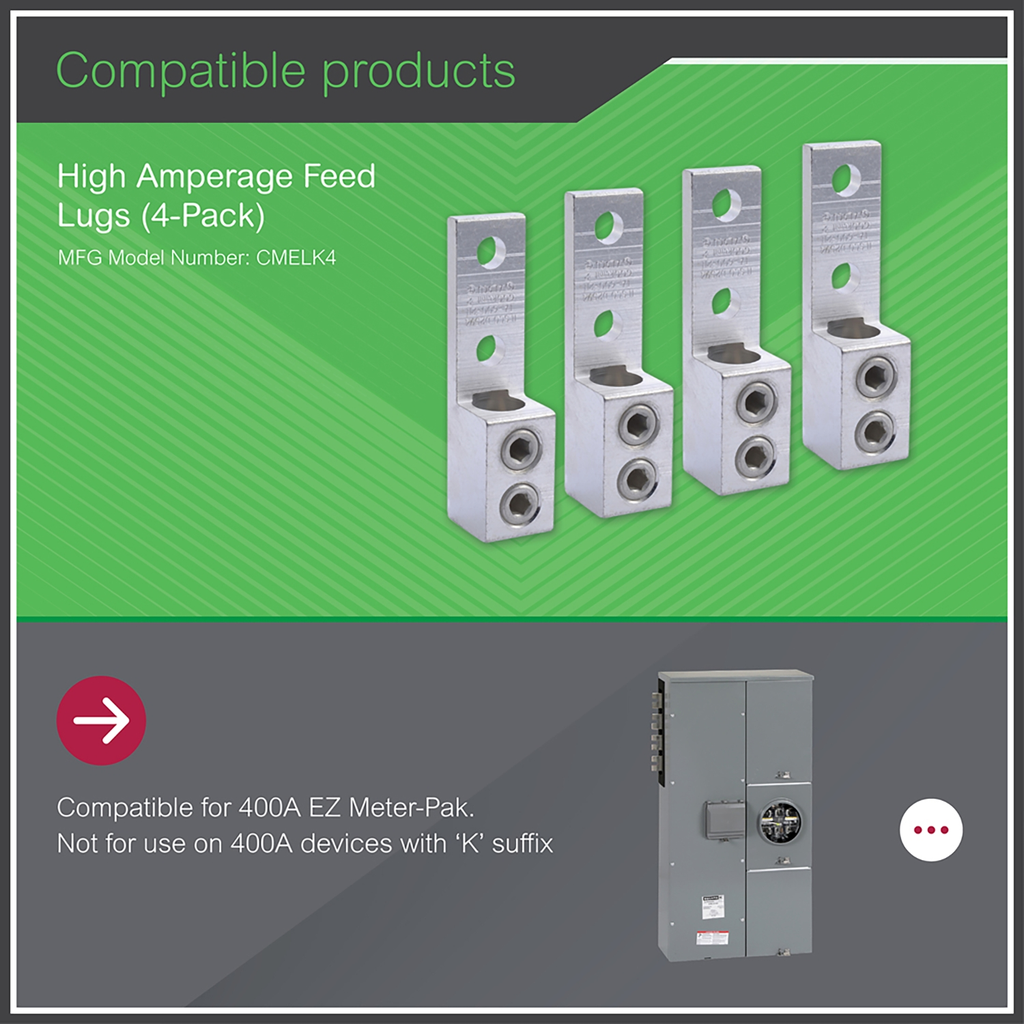

Square D EZ Meter-Pak meter centers provide reliable, versatile, and compact multi metering equipment for multi unit residential and commercial construction. The main devices are available as main circuit breakers, main fusible switches, or main lug terminal boxes, and residential and commercial branches are available in ring or ringless type. EZ Meter-Pak meter centers have accessories and spare parts for field replacements and design flexibility. This part is a mechanical lug kit rated at 400A. The kit contains four TA-600-2N, ILSCO mechanical lugs. The wire range is 2 AWG to 600kcmil for aluminum and copper.
QTY
  • Product Description
  • Features
  • Specifications
Square D EZ Meter-Pak meter centers provide reliable, versatile, and compact multi metering equipment for multi unit residential and commercial construction. The main devices are available as main circuit breakers, main fusible switches, or main lug terminal boxes, and residential and commercial branches are available in ring or ringless type. EZ Meter-Pak meter centers have accessories and spare parts for field replacements and design flexibility. This part is a mechanical lug kit rated at 400A. The kit contains four TA-600-2N, ILSCO mechanical lugs. The wire range is 2 AWG to 600kcmil for aluminum and copper.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2005009
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : N/A
    • Take-Back : No
    • Eu Rohs Directive : Compliant with Exemptions
  • Contractual warranty
    • Warranty : 18 months
  • Complementary
    • Product Certifications : UL Listed
    • Height : 3.06 in
    • Product Destination : CSED 400-400 A
    • Number Of Mounting Holes : 2
    • Width : 6.63 in
    • Depth : 1.94 in
    • Awg Gauge : AWG 2...600 kcmil aluminium/copper)line
  • Specifications
    • Country of Origin : United States
    • Width : 6.63 in
    • Height : 3.06 in
