SQUARE D

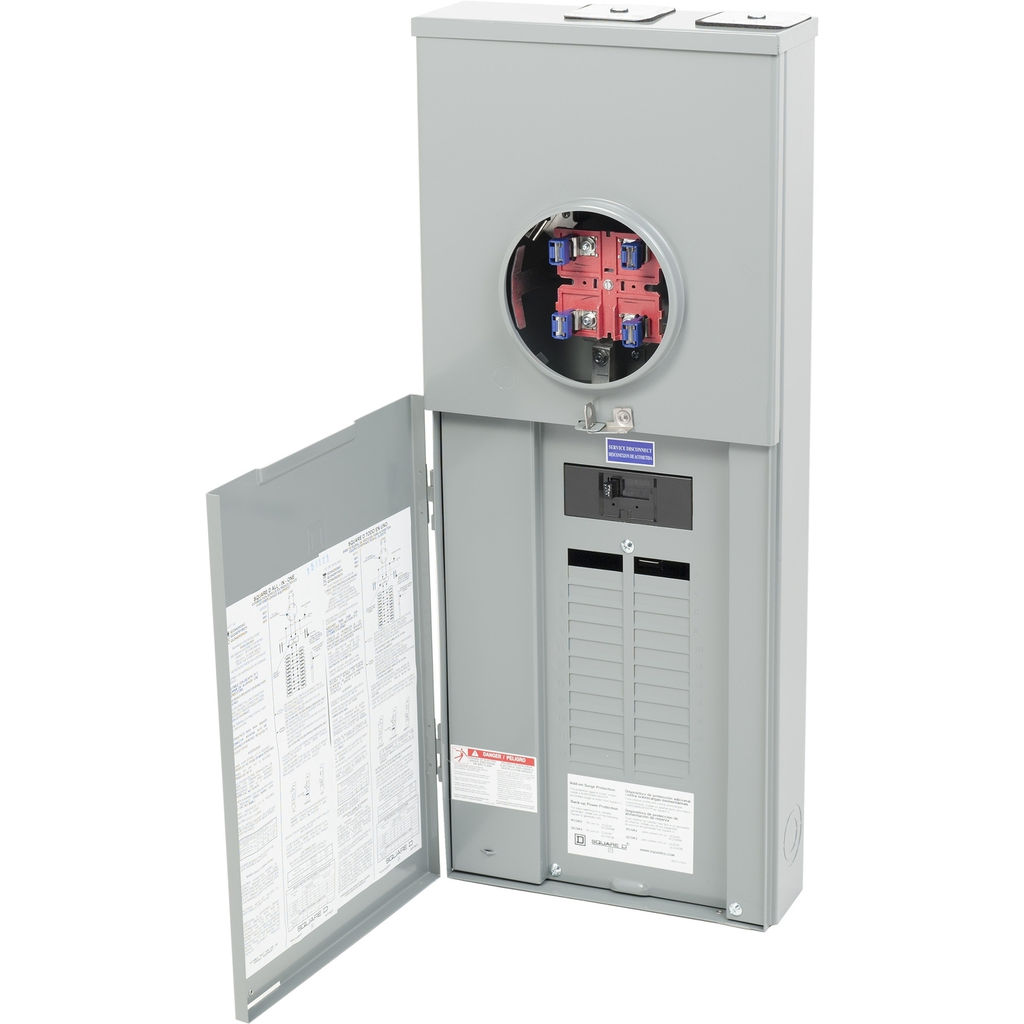

All in one, QO, combination service entrance, ringless socket, 200A, surface, 24 spaces, 42 circuits, 22kA SCCR, OH, UG, no bypass

ALL-IN-ONE RINGLESS HORN OH/UG

SQDQC2442M200C QC2442M200C 785901396680
1957.55 / EACH
http://schema.org/OutOfStock
Mayer-DDS-All in one, QO, combination service entrance, ringless socket, 200A, surface, 24 spaces, 42 circuits, 22kA SCCR, OH, UG, no bypass-2
  • Depth: 5.07 in
  • Height: 35.13 in
  • Number of Circuits: 42
  • Number of Spaces: 24
  • Short Circuit Current Rating: 22 kA
  • Warranty Length: 18 mth
  • Width: 14.12 in
Square D All in One devices are single phase power distribution panels ideal for residential use for when the local codes allow main breaker load centers to be mounted outside. These devices come with a meter socket that supports a standard utility meter, a main disconnect and a load center distribution with spaces up to 42 circuits. QO All in One products are single compact solution provides a time and space saving solution for contractors and installers as well as meet a wide range of applications in use today. This All in One is designed for QO range, has a 24 spaces,is rated at 200 A and has a short circuit current rating of 22 kA. This device has no bypass type, uses a ringless meter socket type and can be service feed either overhead or underground. This CSED uses lugs on both the line and service ground side of the device, has a wire range of 6 AWG to 350 kcmil on the line side and 8 to 2/0 AWG on the service ground side. It is UL rated.
QTY
  • Product Description
  • Features
  • Specifications
Square D All in One devices are single phase power distribution panels ideal for residential use for when the local codes allow main breaker load centers to be mounted outside. These devices come with a meter socket that supports a standard utility meter, a main disconnect and a load center distribution with spaces up to 42 circuits. QO All in One products are single compact solution provides a time and space saving solution for contractors and installers as well as meet a wide range of applications in use today. This All in One is designed for QO range, has a 24 spaces,is rated at 200 A and has a short circuit current rating of 22 kA. This device has no bypass type, uses a ringless meter socket type and can be service feed either overhead or underground. This CSED uses lugs on both the line and service ground side of the device, has a wire range of 6 AWG to 350 kcmil on the line side and 8 to 2/0 AWG on the service ground side. It is UL rated.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1407020EN
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : N/A
    • Take-Back : No
    • Eu Rohs Directive : Compliant with Exemptions
  • Complementary
    • Height : 35.13 in
    • Tightening Torque : main lugs 250 lb.in, AWG 6...350 kcmil, aluminium/copper || service ground 50 lb.in, AWG 8...AWG 2/0, aluminium/copper || branch lugs 50 lb.in, AWG 3...AWG 1/0, aluminium/copper || branch lugs 45 lb.in, AWG 6...AWG 4, aluminium/copper || branch lugs 40 lb.in, AWG 8, aluminium/copper || branch lugs 35 lb.in, AWG 14...AWG 10, aluminium/copper || branch lugs 35 lb.in, AWG 12...AWG 10, aluminium/copper || Cover 10 lb.in
    • Branch Circuit Breaker Rated Current : 200 A
    • Bypass Type : no bypass
    • Service Feed Location : OH || UG
    • Bus Rated Current : 200.0 A
    • Electrical Connection : lugs, line side || lugs, service ground
    • Number Of Circuits : 42
    • Number Of Spaces : 24
    • Short-Circuit Current : 22 kA
    • Number Of Tandem Circuit Breakers : 18
    • Service Disconnect Rated Current : 200 A
    • Line Rated Current : 200 A
    • Width : 14.12 in
    • Awg Gauge : AWG 6...350 kcmil (aluminium) line side || AWG 6...350 kcmil (copper) line side || AWG 8...AWG 2/0 (aluminium) service ground || AWG 8...AWG 2/0 (copper) service ground
    • Depth : 5.07 in
    • Device Composition : service disconnect (factory installed)
    • Device Mounting : surface
  • Specifications
    • Country of Origin : Mexico
    • Width : 14.12 in
    • Height : 35.13 in
    • Range Of Product : QO
    • Product Or Component Type : All-In-One
    • Hub Type : A
    • Meter Socket Type : ringless
  • Contractual warranty
    • Warranty : 18 months
