SQUARE D

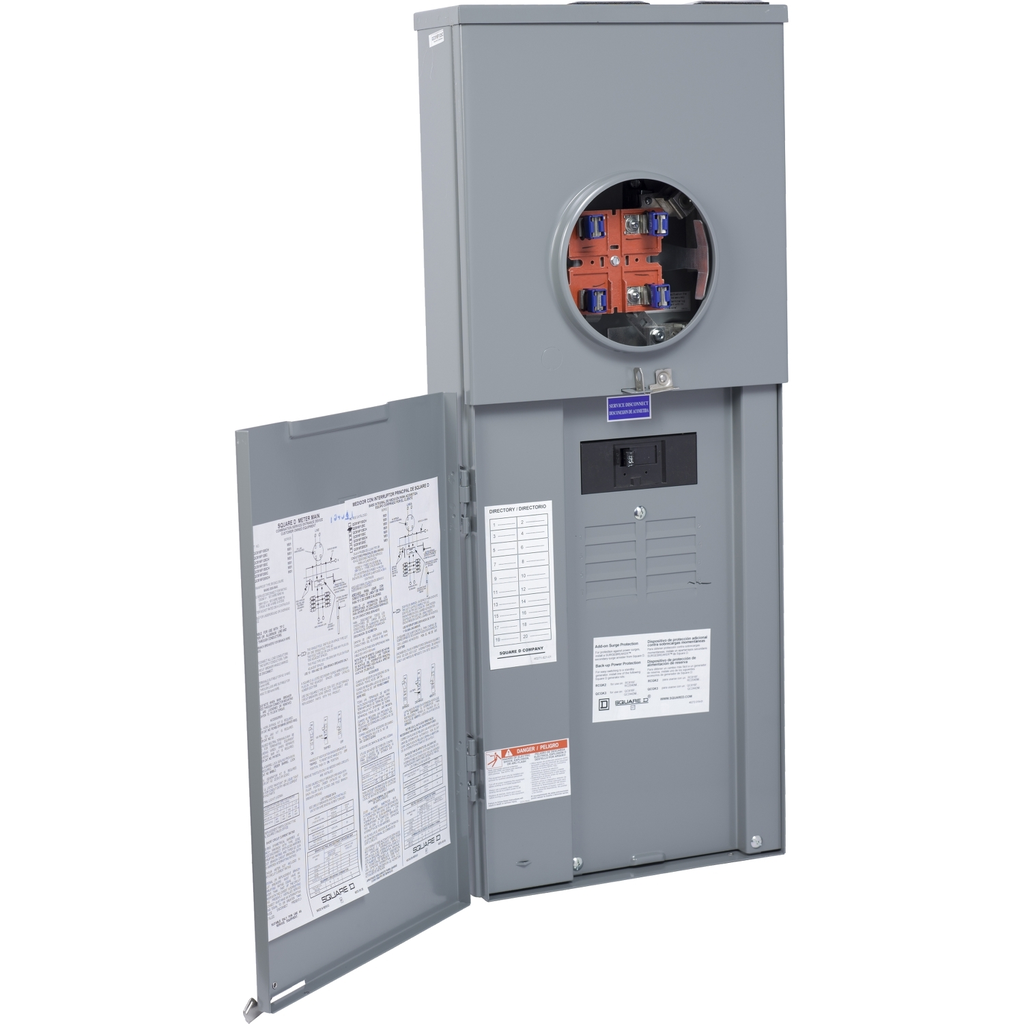

Meter mains, QO, CSED, ringless socket, 150A, surface mount, maximum 8 spaces, 16 circuits, no bypass

METER MAIN RINGLESS OH/UG 150A

SQDQC816F150C QC816F150C 785901001058
1213.56 / EACH
http://schema.org/OutOfStock
Meter mains, QO, CSED, ringless socket, 150A, surface mount, maximum 8 spaces, 16 circuits, no bypass
  • Certifications: UL E-6294
  • Depth: 5.07 in
  • Height: 35.15 in
  • Line Rated Current: 150 A
  • Mounting Type: Surface
  • Number of Circuits: 16
  • Number of Phases: 1
  • Short Circuit Current: 22 kA
  • Warranty Length: 18 mth
  • Width: 14.37 in
The Square D® QO Load Centers and Combination Service Entrance Devices, QC816F150C. Enclosure mounting style performed as surface mount or convertible to semi-flush (use appropriate flange kit). This HOM Ringless Meter Mains meets Federal Specification W-P-115c as Type 1, Class 2, are UL Listed, suitable only for use as service equipment. In interior single main service disconnect with feed-thru lugs. Meter Socket has no By-pass.
QTY
  • Product Description
  • Specifications
The Square D® QO Load Centers and Combination Service Entrance Devices, QC816F150C. Enclosure mounting style performed as surface mount or convertible to semi-flush (use appropriate flange kit). This HOM Ringless Meter Mains meets Federal Specification W-P-115c as Type 1, Class 2, are UL Listed, suitable only for use as service equipment. In interior single main service disconnect with feed-thru lugs. Meter Socket has no By-pass.
  • Environment
    • Product Certifications : UL E-6294
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1407020EN
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Circularity Profile : N/A
    • Eu Rohs Directive : Compliant with Exemptions
  • Complementary
    • Height : 35.15 in
    • Tightening Torque : main lugs 250 lb.in, AWG 6...350 kcmil, aluminium/copper || service ground 50 lb.in, AWG 14...AWG 2/0, copper || service ground 50 lb.in, AWG 12...AWG 2/0, aluminium || branch lugs 35 lb.in, AWG 6...AWG 4, aluminium/copper || branch lugs 25 lb.in, AWG 8, aluminium/copper || branch lugs 20 lb.in, AWG 14...AWG 10, copper || branch lugs 20 lb.in, AWG 12...AWG 10, aluminium || Cover 10 lb.in
    • Branch Circuit Breaker Rated Current : 150 A
    • Bypass Type : no bypass
    • Service Feed Location : OH || UG
    • Bus Rated Current : 200.0 A
    • Electrical Connection : feed-thru lugs, line side || feed-thru lugs, service ground
    • Number Of Circuits : 16
    • Number Of Spaces : 8
    • Short-Circuit Current : 22 kA
    • Number Of Tandem Circuit Breakers : 8
    • Hub Type : A
    • Meter Socket Type : ringless
    • Service Disconnect Rated Current : 150 A
    • Line Rated Current : 150 A
    • Awg Gauge : AWG 6...350 kcmil aluminium/copper)line side || AWG 12...AWG 2/0 aluminium/copper)service ground
    • Width : 14.37 in
    • Depth : 5.07 in
    • Network Number Of Phases : 1
    • Device Composition : service disconnect (factory installed)
    • Device Mounting : surface
  • Specifications
    • Range Of Product : QO
    • Product Or Component Type : Meter Mains
