SQUARE D

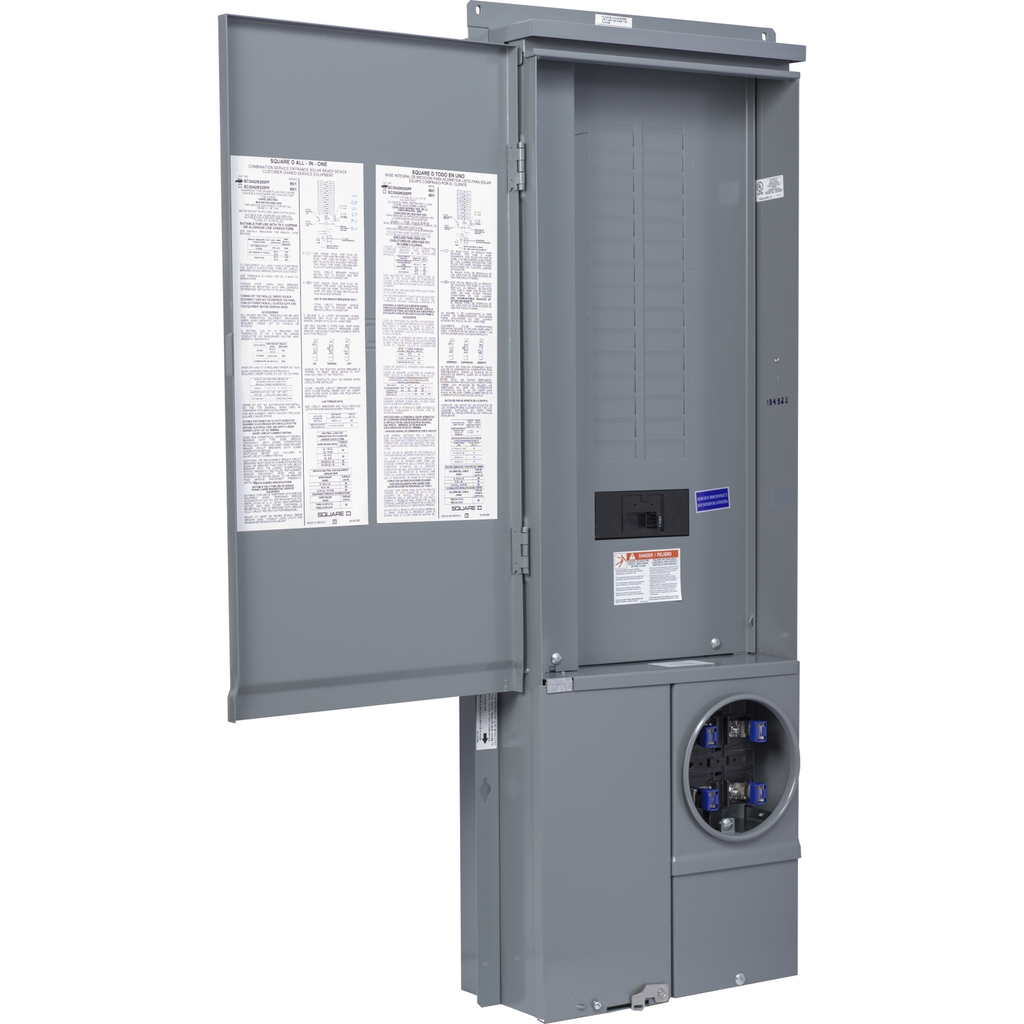

All in one, Homeline, combination service entrance, ringed socket, 125A, semi flush, 20 spaces, 40 circuits, 10kA SSCR, OH, UG, no bypass, solar ready

ALL-IN-ONE RING OH/UG SEMIFLUS

SQDSC2040M125PF SC2040M125PF 785901903826
237.91 / EA
http://schema.org/OutOfStock
Mayer-DDS-All in one, Homeline, combination service entrance, ringed socket, 125A, semi flush, 20 spaces, 40 circuits, 10kA SSCR, OH, UG, no bypass, solar ready-2
  • Depth: 3.40 in
  • Height: 39.80 in
  • Number of Circuits: 40
  • Number of Spaces: 20
  • Short Circuit Current Rating: 22 kA
  • Width: 16.80 in
Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W P 115c as Type 1, Class 2 specifications. This Homeline All In One combination service entrance device has a ringed meter socket with no bypass. This unit can be feed from an overhead service with the addition of tunnel kit (SCTKP20) or underground service. The service disconnect has a QOM2125VH with a maximum rating of 125 A. Device has a 22 kA short circuit current rating. Load center has 20 spaces which will accept up to 20 tandem Homeline circuit breakers. This unit has a NEMA 3R semi flush mount enclosure that is 39.80 inches tall, 16.80 inches wide and 3.40 inches deep. The line side lugs will accept 4 AWG to 250 kcmil copper or aluminum wire. The service ground lug will accept 8 AWG to 2/0 AWG copper or aluminum wire. This Homeline All In One combination service entrance meter main unit is UL Listed. Device meets EUSERC standards.
QTY
  • Product Description
  • Features
  • Specifications
Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W P 115c as Type 1, Class 2 specifications. This Homeline All In One combination service entrance device has a ringed meter socket with no bypass. This unit can be feed from an overhead service with the addition of tunnel kit (SCTKP20) or underground service. The service disconnect has a QOM2125VH with a maximum rating of 125 A. Device has a 22 kA short circuit current rating. Load center has 20 spaces which will accept up to 20 tandem Homeline circuit breakers. This unit has a NEMA 3R semi flush mount enclosure that is 39.80 inches tall, 16.80 inches wide and 3.40 inches deep. The line side lugs will accept 4 AWG to 250 kcmil copper or aluminum wire. The service ground lug will accept 8 AWG to 2/0 AWG copper or aluminum wire. This Homeline All In One combination service entrance meter main unit is UL Listed. Device meets EUSERC standards.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1407020EN
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : N/A
    • Take-Back : No
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 422.8916841208
  • Complementary
    • Connections - Terminals : plug-on neutral
    • Height : 39.80 in
    • Tightening Torque : main lugs 250 lb.in, AWG 4...250 kcmil, aluminium/copper || service ground 50 lb.in, AWG 14...AWG 2/0, copper || service ground 50 lb.in, AWG 12...AWG 2/0, aluminium || branch lugs 50 lb.in, AWG 14...AWG 4, copper || branch lugs 50 lb.in, AWG 12...AWG 2, aluminium || branch lugs 35 lb.in, AWG 6...AWG 4, aluminium/copper || branch lugs 25 lb.in, AWG 8, aluminium/copper || branch lugs 20 lb.in, AWG 14...AWG 10, aluminium/copper || branch lugs 20 lb.in, AWG 12...AWG 10, aluminium/copper || Cover 10 lb.in
    • Branch Circuit Breaker Rated Current : 110 A
    • Bypass Type : no bypass
    • Service Feed Location : UG || OH outdoor
    • Bus Rated Current : 225.0 A
    • Electrical Connection : lugs, line side || lugs, service ground
    • Number Of Circuits : 40
    • Number Of Spaces : 20
    • Phase : 1 phase
    • Short-Circuit Current : 22 kA
    • Number Of Tandem Circuit Breakers : 20
    • Service Disconnect Rated Current : 125 A
    • Line Rated Current : 125 A
    • Width : 16.80 in
    • Awg Gauge : AWG 8...AWG 2/0 (aluminium/copper) service ground || AWG 4...250 kcmil (aluminium/copper) line side
    • Depth : 3.40 in
    • Product Compatibility : solar ready
    • Colour Of Enclosure : grey
    • Device Composition : service disconnect (factory installed)
    • Device Mounting : semi flush (outdoor)
  • Specifications
    • Country of Origin : Mexico
    • Width : 16.80 in
    • Height : 39.80 in
    • Range Of Product : Homeline
    • Product Or Component Type : All-In-One
    • Hub Type : A-L
    • Meter Socket Type : ringed
