All in one, Homeline, combination service entrance, ringless socket, 200A, surface, 30 spaces, 42 circuits, 22kA SCCR, OH, UG, no bypass, PON

ALL IN ONE RINGLESS OH UG 200A

SQDRC3042M200PS RC3042M200PS 785901009733
467.08 / EA
http://schema.org/OutOfStock

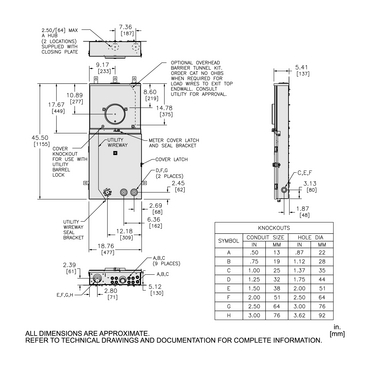

Mayer-DDS-All in one, Homeline, combination service entrance, ringless socket, 200A, surface, 30 spaces, 42 circuits, 22kA SCCR, OH, UG, no bypass, PON-2
  • Depth: 5.41 in
  • Height: 45.47 in
  • Line Rated Current: 200 A
  • Mounting Type: Surface
  • Number of Circuits: 42
  • Short Circuit Current: 22 kA
  • Width: 18.76 in
Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W-P-115c as Type 1, Class 2 specifications. This Homeline All In One combination service entrance device with a plug on neutral has a ringless meter socket. This unit has no bypass. This unit can be feed from an overhead or underground service. The service disconnect is a QOM2200VH which has a maximum rating of 200 A. Device has a 22 kA short circuit current rating. Load center has 30 spaces which will accept up to 12 tandem Homeline circuit breakers. This unit has a NEMA 3R surface mounting enclosure that is 45.47 inches tall, 18.78 inches wide and 4.41 inches deep. The line side lugs will accept 6 AWG to 350 kcmil copper or aluminum wire. The service ground lug will accept 8 AWG to 2/0 AWG copper or aluminum wire. This Homeline All In One combination service entrance device with plug on neutral is UL Listed.
QTY
  • Product Description
  • Specifications
Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W-P-115c as Type 1, Class 2 specifications. This Homeline All In One combination service entrance device with a plug on neutral has a ringless meter socket. This unit has no bypass. This unit can be feed from an overhead or underground service. The service disconnect is a QOM2200VH which has a maximum rating of 200 A. Device has a 22 kA short circuit current rating. Load center has 30 spaces which will accept up to 12 tandem Homeline circuit breakers. This unit has a NEMA 3R surface mounting enclosure that is 45.47 inches tall, 18.78 inches wide and 4.41 inches deep. The line side lugs will accept 6 AWG to 350 kcmil copper or aluminum wire. The service ground lug will accept 8 AWG to 2/0 AWG copper or aluminum wire. This Homeline All In One combination service entrance device with plug on neutral is UL Listed.
  • Complementary
    • Connections - Terminals : plug-on neutral
    • Height : 45.47 in
    • Tightening Torque : main lugs 250 lb.in, AWG 6...350 kcmil, aluminium/copper || service ground 50 lb.in, AWG 3...AWG 2/0, aluminium/copper || service ground 45 lb.in, AWG 6...AWG 4, aluminium/copper || service ground 40 lb.in, AWG 8, aluminium/copper || branch lugs 35 lb.in, AWG 6...AWG 4, aluminium/copper || branch lugs 25 lb.in, AWG 8, aluminium/copper || branch lugs 20 lb.in, AWG 14...AWG 10, aluminium/copper || branch lugs 20 lb.in, AWG 12...AWG 10, aluminium/copper || Cover 10 lb.in
    • Branch Circuit Breaker Rated Current : 200 A
    • Bypass Type : no bypass
    • Service Feed Location : OH || UG
    • Bus Rated Current : 200.0 A
    • Electrical Connection : lugs, line side || lugs, service ground
    • Number Of Circuits : 42
    • Number Of Spaces : 30
    • Short-Circuit Current : 22 kA
    • Number Of Tandem Circuit Breakers : 12
    • Service Disconnect Rated Current : 200 A
    • Line Rated Current : 200 A
    • Width : 18.76 in
    • Awg Gauge : AWG 6...350 kcmil (aluminium/copper) line side || AWG 12...AWG 2/0 (aluminium/copper) service ground
    • Depth : 5.41 in
    • Device Composition : service disconnect (factory installed)
    • Device Mounting : surface
  • Specifications
    • Range Of Product : Homeline
    • Product Or Component Type : All-In-One
    • Hub Type : A
    • Meter Socket Type : ringless
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1407020EN
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Circularity Profile : N/A
    • Eu Rohs Directive : Compliant with Exemptions
  • Environment
    • Nema Degree Of Protection : NEMA 3R
