Homeline All In One combination service entrance device, ringed socket, no bypass, OH, 200 A, 10 kA, 20 spaces

ALL-IN-ONE RING TYPE SURFACE O

SQDSO2040M200S SO2040M200S 785901328032
1112.54 / EACH
http://schema.org/OutOfStock

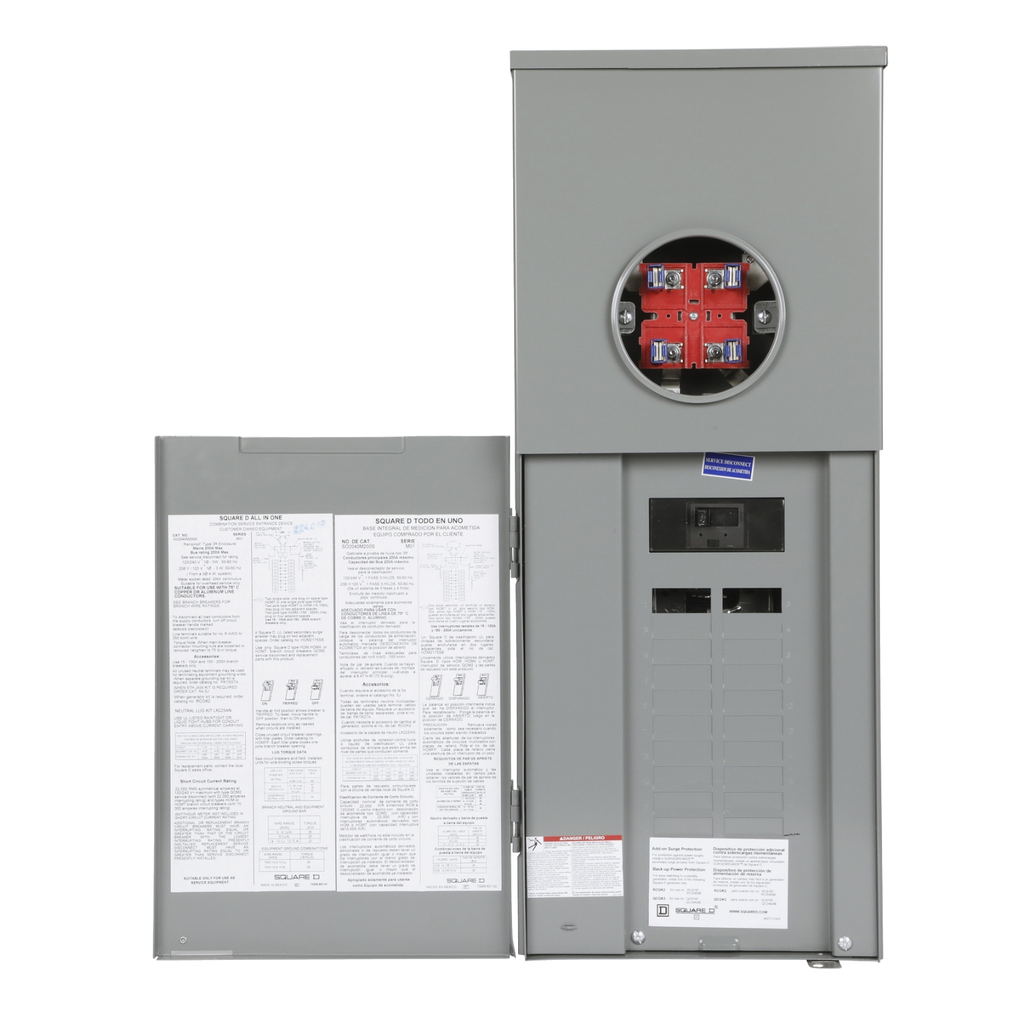

Mayer-DDS-Homeline All In One combination service entrance device, ringed socket, no bypass, OH, 200 A, 10 kA, 20 spaces-2
  • Country of Origin: Mexico
  • Depth: 5.32 in
  • Height: 40.93 in
  • Number of Circuits: 40
  • Number of Spaces: 20
  • Warranty Length: 18 mth
  • Width: 18.35 in
Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be us
QTY
  • Product Description
  • Features
  • Specifications
Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be us
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Electrical Connection
    • lugs, line side
    • lugs, service ground
  • Accessories
    • 5J
    • RCGK2
    • A125
  • Tightening Torque
    • main lugs 250 lb.in, AWG 6...350 kcmil, aluminium/copper
    • branch lugs 50 lb.in, AWG
  • AWG Gauge
    • AWG 6...350 kcmil (aluminium) line side
    • AWG 6...350 kcmil (copper) line side
    • AWG 8...AWG 2/0 (alumin
  • Conformance Attributes
    • Product Certifications : UL Listed
  • Complementary Attributes
    • Branch Circuit Breaker Rated Current : 200 A
    • Bus Rated Current : 200.0 A
    • Line Rated Current : 200 A
    • Service Disconnect Rated Current : 200 A
  • Important Information Attributes
    • B2B Bullet Point 1 : Compatible with Homeline plug-in mount breakers
    • B2B Bullet Point 2 : This single compact solution provides a time and space saving solution for contractors and installers
    • B2B Bullet Point 3 : Suitable for use as service entrance equipment
    • B2B Bullet Point 4 : CSED allows for the meter socket to integrate with the load center into one compact design
    • B2B Bullet Point 5 : Accommodates plug-on secondary surge arrester and features a plug-in deisgn for easy installation
    • B2B Bullet Point 6 : NEMA type 3R enclosure for outdoor use
    • B2B Bullet Point 7 : UL listed and ANSI certified
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : Yes
    • ROHS Eur Status : Compliant with Exemptions
    • ROHS Eur Conformity Date : 2534
    • ROHS Eur Full Compliance Status : Compliant with Exemptions
    • ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Meter enclosures
    • H And D Enrichment Class 4 : Combination service entrance device
    • Device Composition : service disconnect (factory installed)
    • Energy Efficiency Optimized : False
    • Hub Type : A
    • Meter Socket Type : ringed
    • Number Of Circuits : 40
    • Number Of Spaces : 20
    • Number Of Tandem Circuit Breakers : 20
    • Package Weight Lbs : 18.824 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : All-In-One
    • Range Of Product : Homeline
    • Returnability : Yes
    • Service Feed Location : OH
    • Short Circuit Current : 22 kA
    • Sustainable Packaging : No
    • Connections Terminals : lugs
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Product Or Component Type : All-In-One
    • Range Of Product : Homeline
  • Output Attributes
    • Bypass Type : no bypass
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=361859&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2509019
    • Eu Rohs Directive : Compliant with Exemptions
    • Nema Degree Of Protection : NEMA 3R
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
    • Height : 40.93 in
    • Width : 18.35 in
    • Depth : 5.32 in
