All in one, Homeline, CSED, ringed socket, 400A, surface/semi, 30 spaces, 40 circuits, 25kA SCCR, 320 manual bypass

ALL-IN-ONE RING UG 400A MANUAL

SQDSU3040D400CB SU3040D400CB 785901521792
6704.52 / EACH
http://schema.org/OutOfStock
Mayer-DDS-All in one, Homeline, CSED, ringed socket, 400A, surface/semi, 30 spaces, 40 circuits, 25kA SCCR, 320 manual bypass-2

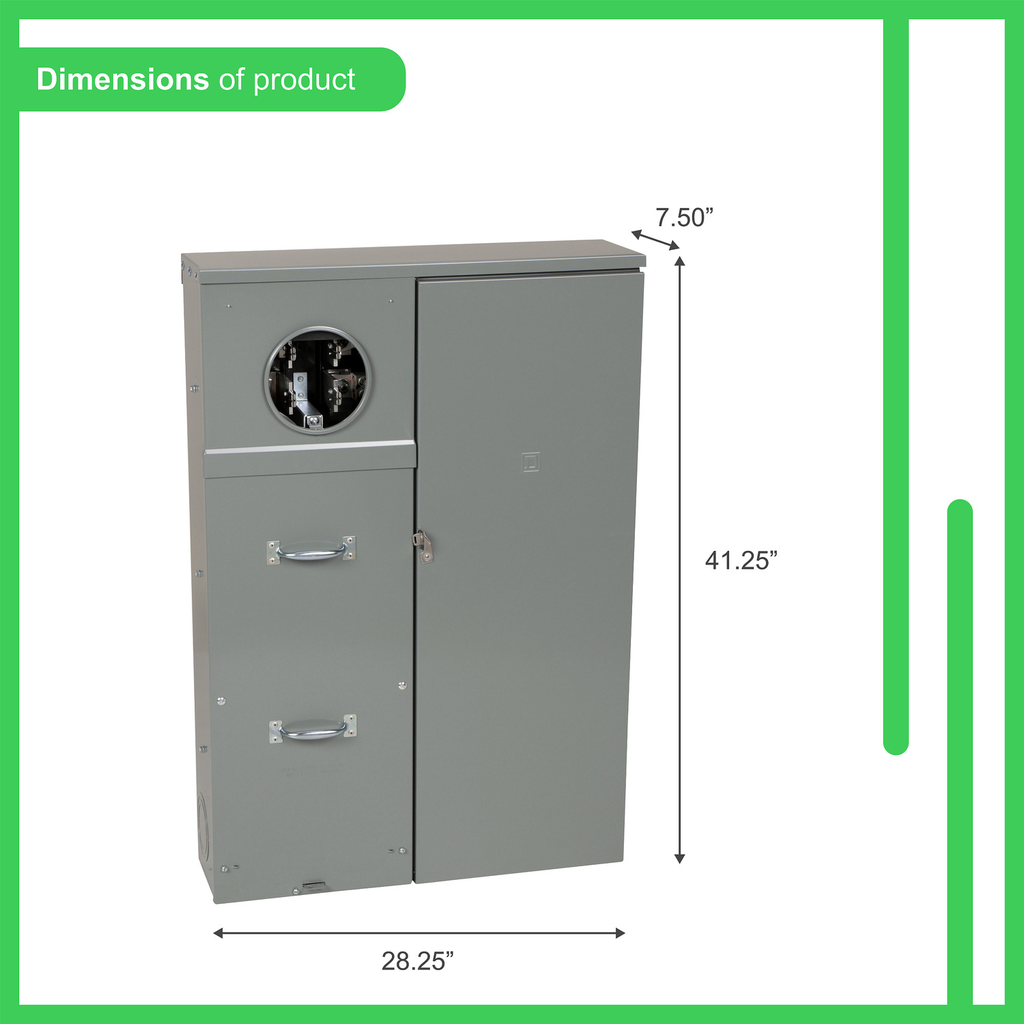

  • Depth: 7.50 in
  • Height: 41.25 in
  • Number of Circuits: 40
  • Number of Spaces: 30
  • Short Circuit Current Rating: 25 kA
  • Warranty Length: 18 mth
  • Width: 28.25 in
Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W P 115c as Type 1, Class 2 specifications. This Homeline All In One combination service entrance device has a ringed meter socket with a Class 320 Manual bypass. The socket has 4 jaws. This unit can be feed from an underground service. The service disconnect has a QDL22200 with a maximum rating of 200 A. Device has a 25 kA short circuit current rating. Load center has 30 spaces which will accept up to 10 tandem Homeline circuit breakers. This unit has a NEMA 3R surface mount enclosure that is 41.25 inches tall, 28.25 inches wide and 7.50 inches deep. The line side has two studs. The service ground lug will accept 4 AWG to 250 kcmil copper or aluminum wire. This Homeline All In One combination service entrance unit is UL Listed.
QTY
  • Product Description
  • Features
  • Specifications
Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W P 115c as Type 1, Class 2 specifications. This Homeline All In One combination service entrance device has a ringed meter socket with a Class 320 Manual bypass. The socket has 4 jaws. This unit can be feed from an underground service. The service disconnect has a QDL22200 with a maximum rating of 200 A. Device has a 25 kA short circuit current rating. Load center has 30 spaces which will accept up to 10 tandem Homeline circuit breakers. This unit has a NEMA 3R surface mount enclosure that is 41.25 inches tall, 28.25 inches wide and 7.50 inches deep. The line side has two studs. The service ground lug will accept 4 AWG to 250 kcmil copper or aluminum wire. This Homeline All In One combination service entrance unit is UL Listed.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL Listed
    • Nema Degree Of Protection : NEMA 3R
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1407020EN
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Circularity Profile : N/A
    • Take-Back : No
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 533.4328301625
  • Complementary
    • Height : 41.25 in
    • Tightening Torque : terminal screw 250 lb.in, AWG 4...250 kcmil, aluminium/copper || service ground 50 lb.in, AWG 1/0, aluminium/copper || service ground 45 lb.in, AWG 6...AWG 1, aluminium/copper || service ground 40 lb.in, AWG 8, aluminium/copper || branch lugs 50 lb.in, AWG 3...AWG 2/0, aluminium/copper || branch lugs 35 lb.in, AWG 6...AWG 4, aluminium/copper || branch lugs 25 lb.in, AWG 8, aluminium/copper || branch lugs 20 lb.in, AWG 14...AWG 10, aluminium/copper || branch lugs 20 lb.in, AWG 12...AWG 10, aluminium/copper || Cover 10 lb.in
    • Branch Circuit Breaker Rated Current : 200 A
    • Bypass Type : class 320 manual bypass
    • Service Feed Location : UG
    • Bus Rated Current : 200.0 A
    • Electrical Connection : lugs, service ground || studs, line side
    • Number Of Circuits : 40
    • Number Of Spaces : 30
    • Short-Circuit Current : 25 kA
    • Number Of Tandem Circuit Breakers : 10
    • Service Disconnect Rated Current : 200 A
    • Line Rated Current : 400 A
    • Width : 28.25 in
    • Awg Gauge : AWG 4...250 kcmil (aluminium) service ground || AWG 4...250 kcmil (copper) service ground
    • Depth : 7.50 in
    • Device Composition : service disconnect (factory installed)
    • Device Mounting : surface || semi flush with field installed flange kit
  • Specifications
    • Country of Origin : Mexico
    • Width : 28.25 in
    • Height : 41.25 in
    • Range Of Product : Homeline
    • Product Or Component Type : All-In-One
    • Hub Type : A-L
    • Meter Socket Type : ringed
