Main circuit breaker busway tap right, EZ Meter-Pak, 1200A, 240VAC max, 3ph/4W, 1200A bus, 65kA, neut back, Type 1

EZ METER PAK, MAIN BREAKER, BU

SQDEZM31200GBNBBTR EZM31200GBNBBTR 785901984634
10623.07 / EA
http://schema.org/OutOfStock

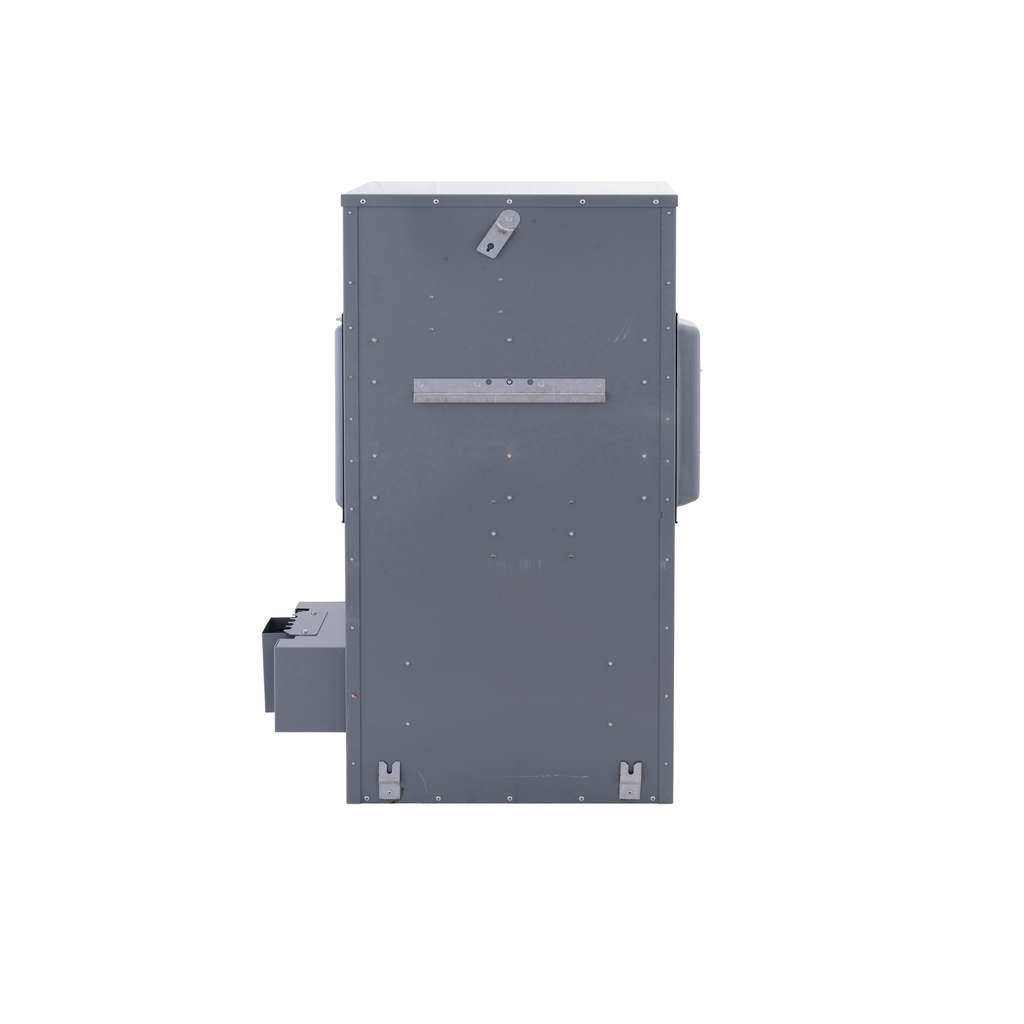

Mayer-DDS-Main circuit breaker busway tap right, EZ Meter-Pak, 1200A, 240VAC max, 3ph/4W, 1200A bus, 65kA, neut back, Type 1-2
  • Certifications: UL
  • Depth: 13.63 in
  • Enclosure Material: Painted Steel
  • Height: 50.48 in
  • Material: Copper: Busbar
  • Number of Phases: 3
  • Warranty Length: 18 mth
  • Width: 22.36 in
EZ Meter Pak devices are the industry choice for providing a better solution for multi unit construction needs. EZM main devices are available as main circuit breakers, as main fusible switches or as main lug terminal boxes. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. This main circuit breaker with busway side tap has busway to right of EZM metering equipment lineup. This unit has a neutral in the back. Unit has a 3P 1200 A circuit breaker with a 65 kA interrupting rating. The unit has a 1200 A copper bus. This unit has a NEMA 3R surface mounting enclosure that is 50.48 inches tall, 22.36 inches wide and 13.63 inches deep. This main circuit breaker with busway side tap unit is UL Listed.
QTY
  • Product Description
  • Specifications
EZ Meter Pak devices are the industry choice for providing a better solution for multi unit construction needs. EZM main devices are available as main circuit breakers, as main fusible switches or as main lug terminal boxes. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. This main circuit breaker with busway side tap has busway to right of EZM metering equipment lineup. This unit has a neutral in the back. Unit has a 3P 1200 A circuit breaker with a 65 kA interrupting rating. The unit has a 1200 A copper bus. This unit has a NEMA 3R surface mounting enclosure that is 50.48 inches tall, 22.36 inches wide and 13.63 inches deep. This main circuit breaker with busway side tap unit is UL Listed.
  • Environment
    • Product Certifications : UL Listed
    • Nema Degree Of Protection : NEMA 1
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Eu Rohs Directive : Compliant with Exemptions
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Height : 50.48 in
    • Phase : 3 phase in || 3 phase out
    • [Ue] Rated Operational Voltage : 208Y/120 V AC || 240/120 V delta || 240/120 V delta AC
    • Material : copper: busbar
    • Bus Rated Current : 1200 A
    • Enclosure Material : painted steel
    • Wiring Configuration : 4-wire
    • Width : 22.36 in
    • Depth : 13.63 in
    • Type Of Installation : indoor
    • Main Rated Current : 1200 A
    • Electrical Connection : busway right side || lugsneutral back
  • Specifications
    • Width : 22.36 in
    • Height : 50.48 in
    • Range Of Product : EZ meter-pak
    • Main Type : Main Circuit Breaker
    • Provided Equipment : circuit-breaker 1 ) 3P 1200 A 65 kA || closing plate
    • Product Or Component Type : meter center main unit
