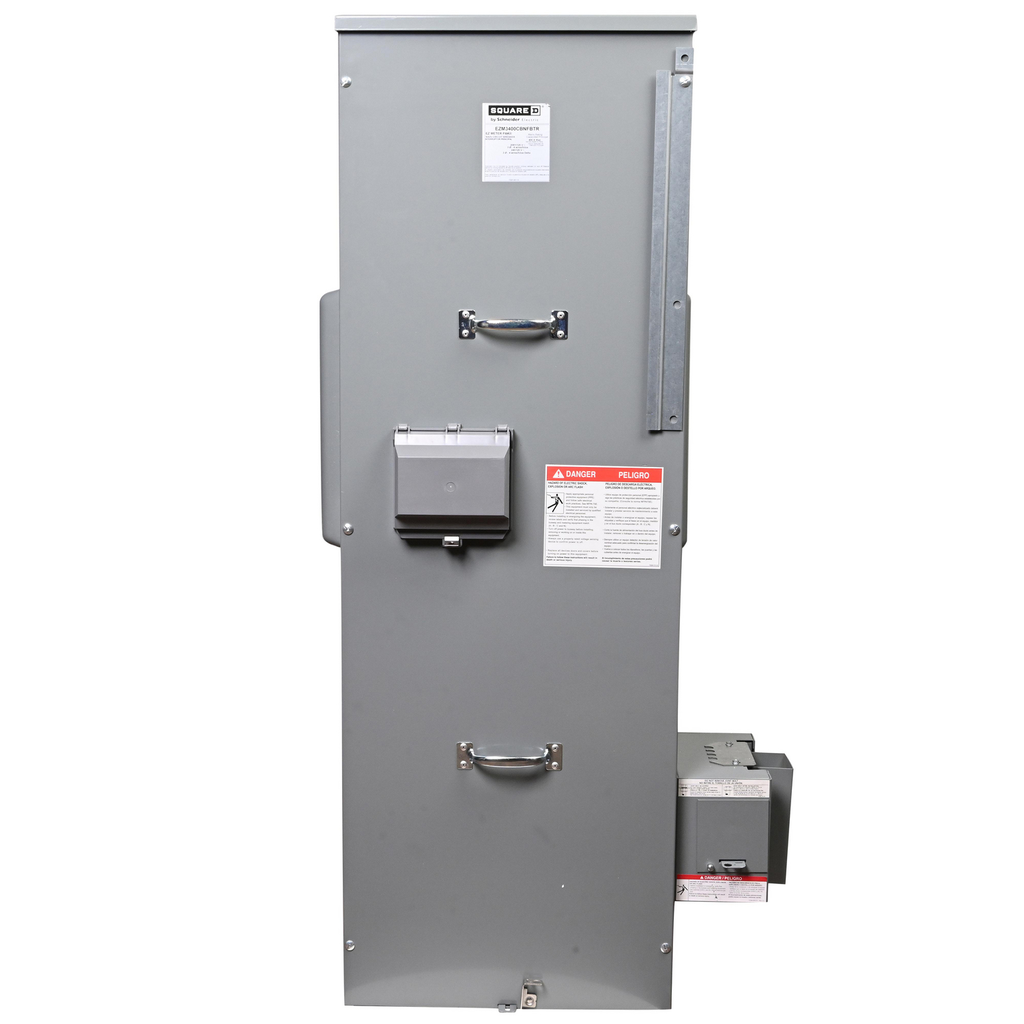

Square D EZ Meter-Pak meter centers provide reliable, versatile, and compact multi metering equipment for multi unit residential and commercial construction. The main devices are available as main circuit breakers, main fusible switches, or main lug term

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Provided Equipment
• circuit-breaker 1 ) 3P 400 A 65 kA
• closing plate
• Ue Rated Operational Voltage
• 208Y/120 V AC
• 240/120 V delta
• 240/120 V delta AC
• Phase
• 3 phase in
• 3 phase out
• Electrical Connection
• busway right side
• lugsneutral front

• Conformance Attributes
• Product Certifications : UL Listed
• Complementary Attributes
• Bus Rated Current : 400 A
• Main Rated Current : 400 A
• Important Information Attributes
• B2B Bullet Point 1 : Main circuit breaker, fusible switch, or lug terminal boxes available
• B2B Bullet Point 2 : Meter-Pak units from 225A to 2000A
• B2B Bullet Point 3 : Visi-Tite nuts eliminate special tools and torque readings
• B2B Bullet Point 4 : Rotating mounting brackets pivot for drilling holes without moving the device
• B2B Bullet Point 5 : External mounting channels allow immediate installation
• B2B Bullet Point 6 : Compact footprint for installation flexibility
• Local Data Status : Publishable
• Local Publishable Date : 2025-04-09
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : Outside of Europe
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 2534
• ROHS Eur Full Compliance Status : Compliant with Exemptions
• ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Persona Type Ids : LC
• Persona Type Names : Contractor
• Tier Id : 3
• Tier : 3
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : COMMERCIAL
• Market Segmentation : Commercial
• H And D Domain : Safety
• H And D Subrange : RESI
• H And D Enrichment Assignment : no
• H And D Enrichment Function : ENCLOSURES
• H And D Enrichment Class 3 : Meter enclosures
• H And D Enrichment Class 4 : Three-phase multi-tenant meter enclosure
• Enclosure Material : painted steel
• Energy Efficiency Optimized : False
• Main Type : Main Circuit Breaker
• Package Weight Lbs : 4.536 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : meter center main unit
• Range Of Product : EZ meter-pak
• Returnability : No
• Sustainable Packaging : No
• Type Of Installation : indoor
• Wiring Configuration : 4-wire
• General Attributes
• Product Or Component Type : meter center main unit
• Range Of Product : EZ meter-pak
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=357843&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2011003
• Eu Rohs Directive : Compliant with Exemptions
• Nema Degree Of Protection : NEMA 1
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
• Height : 53.87 in
• Width : 18.66 in
• Depth : 10.94 in
