SQUARE D

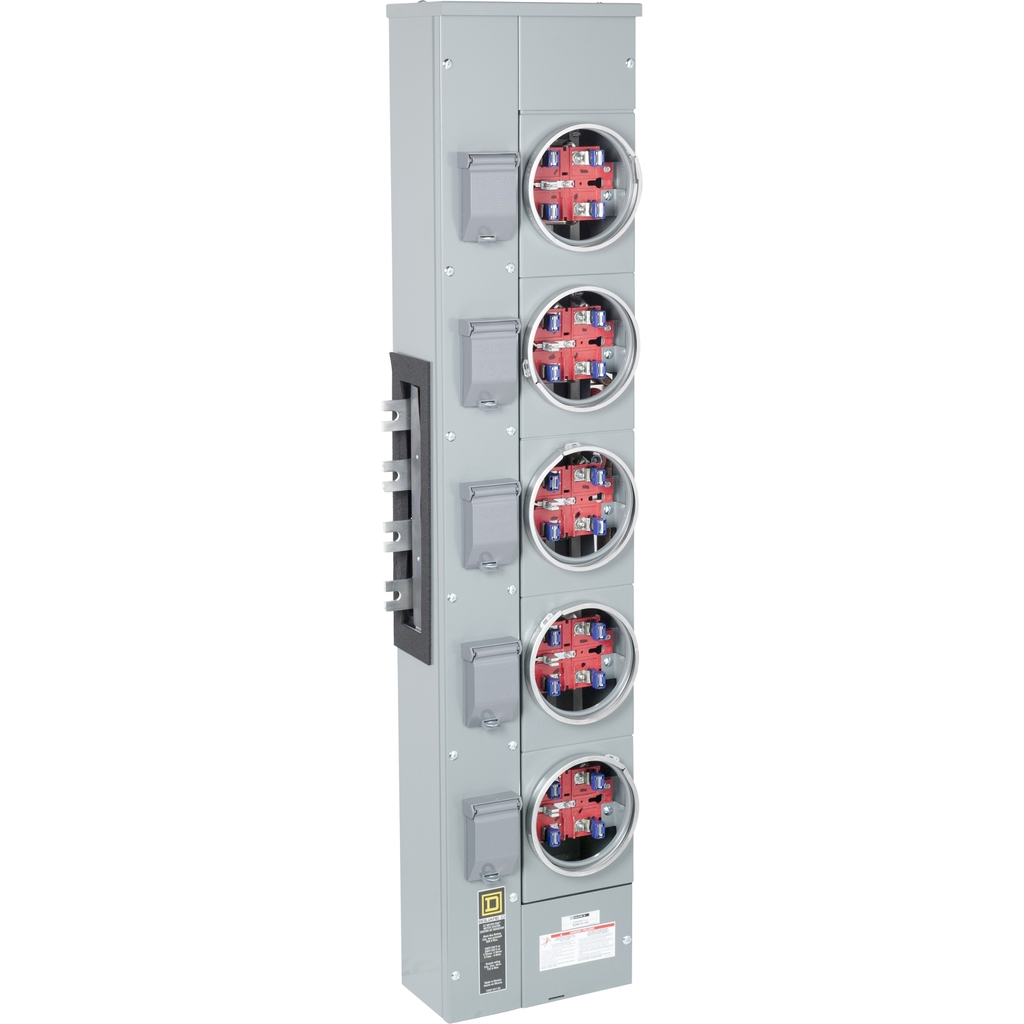

Branch unit, EZ Meter-Pak, 125A, 5 x 5 jaw sockets, 208Y/120VAC, no bypass, ringed, 1200A Al/Cu busbar

RESI BRANCH 1200A CROSS BAR

SQDEZM315125X EZM315125X 785901373797
1130.00 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Branch unit, EZ Meter-Pak, 125A, 5 x 5 jaw sockets, 208Y/120VAC, no bypass, ringed, 1200A Al/Cu busbar-2
  • Country of Origin: USA
  • Depth: 7.09 in
  • Enclosure Material: Steel
  • Height: 57.12 in
  • Number of Jaws: 5 Without Jaw Release
  • Warranty Length: 18 mth
  • Width: 12.25 in
Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This branch unit is ringed and rated 125A. It has 5 five jaw sockets for use. The system voltage is 208Y/120 VAC and has no bypass. It includes a 1200 A aluminium/copper busbar. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.
QTY
  • Product Description
  • Features
  • Specifications
Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This branch unit is ringed and rated 125A. It has 5 five jaw sockets for use. The system voltage is 208Y/120 VAC and has no bypass. It includes a 1200 A aluminium/copper busbar. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Specifications
    • Country of Origin : United States
    • Width : 12.25 in
    • Height : 57.12 in
    • Range Of Product : Meter-Pak
    • Bypass Type : no bypass
    • Number Of Meter Sockets : 5
    • Bus Rated Current : 1200 A
    • Product Or Component Type : Meter Center Branch Unit
    • Meter Socket Type : ringed
    • Line Rated Current : 125 A
    • Number Of Jaws : 5 without jaw release
  • Environmental data
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2005009
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Circularity Profile : N/A
    • Take-Back : No
    • Global Warming ; Total Life Cycle​ : 650 kg CO2 eq.
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 649.9425038078
  • Complementary
    • Product Certifications : UL Listed
    • Height : 57.12 in
    • Phase : 3 phase in || 1 phase out
    • Device Mounting : surface
    • [Ue] Rated Operational Voltage : 208Y/120 V AC
    • Nema Degree Of Protection : NEMA 3R
    • Material : aluminium/copper: busbar
    • Enclosure Material : steel
    • Wiring Configuration : 4-wire
    • Width : 12.25 in
    • Depth : 7.09 in
  • Contractual warranty
    • Warranty : 18 months
