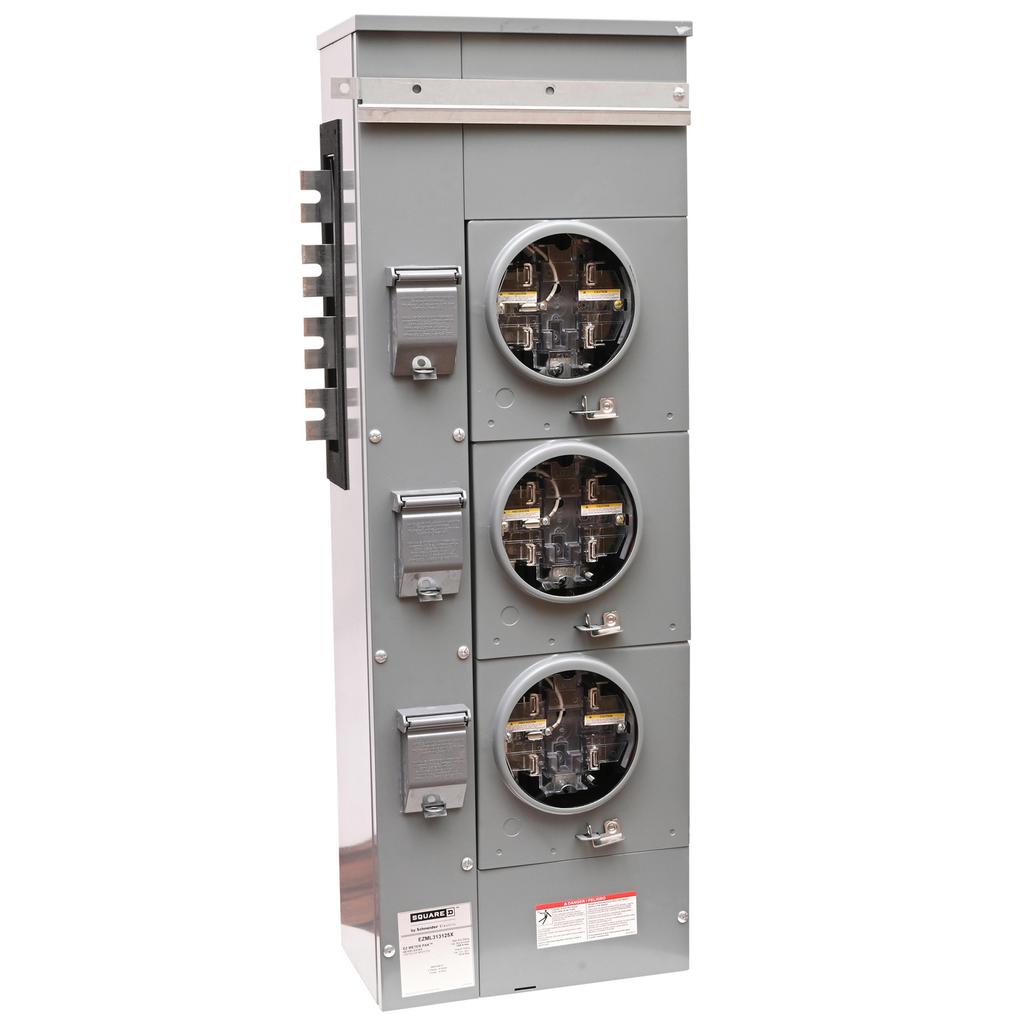

Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This branch unit is ringless and rated 125A. It has 3 five jaw sockets for use. The system voltage is 208Y/120 VAC and has a lever bypass. It includes a 800 A aluminium busbar. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.

• Complementary
• Height : 45 in
• Phase : 3 phase in || 1 phase out
• Device Mounting : surface
• [Ue] Rated Operational Voltage : 208Y/120 V AC
• Short-Circuit Current : 10 kA
• Nema Degree Of Protection : NEMA 3R
• Material : aluminium: busbar
• Width : 15.38 in
• Wiring Configuration : 4-wire
• Depth : 8.95 in
• Specifications
• Country of Origin : Mexico
• Width : 15.38 in
• Height : 45 in
• Range Of Product : Meter-Pak
• Bypass Type : lever bypass
• Number Of Meter Sockets : 3
• Bus Rated Current : 800 A
• Product Or Component Type : Meter Center Branch Unit
• Meter Socket Type : ringless
• Line Rated Current : 125 A
• Number Of Jaws : 5 with jaw release
• Environmental data
• Packaging Made With Recycled Cardboard : No
• Environmental Disclosure : ENVPEP2005009
• Packaging Without Single Use Plastic : No
• Circularity Profile : N/A
• Take-Back : No
