SQUARE D

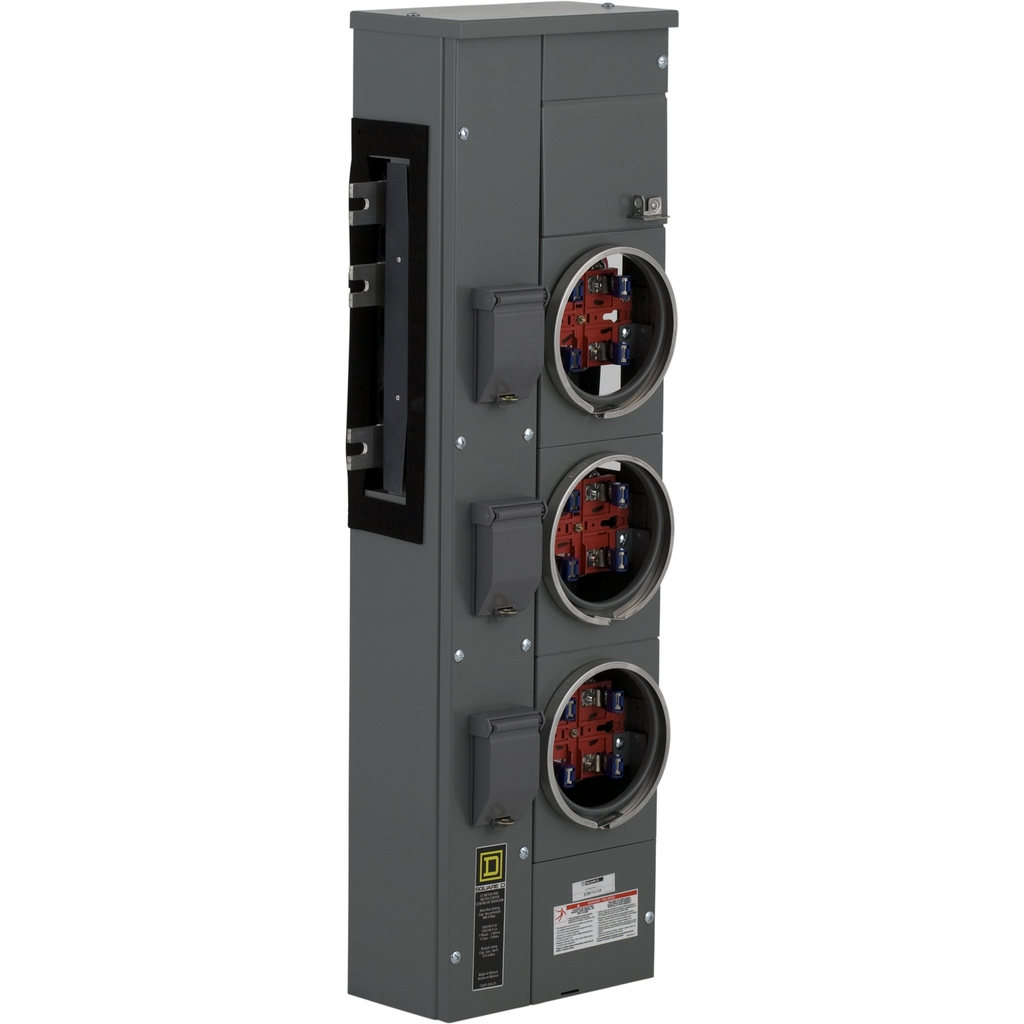

Branch unit, EZ Meter-Pak, 125A, 3 x 4 jaw sockets, 120/240VAC, no bypass, ringed, 800A Al busbar

METER EZM BRANCH RING 125A QO

SQDEZM113125 EZM113125 785901402053
560.13 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Branch unit, EZ Meter-Pak, 125A, 3 x 4 jaw sockets, 120/240VAC, no bypass, ringed, 800A Al busbar-2
  • Country of Origin: USA
  • Depth: 180 mm
  • Enclosure Material: Steel
  • Height: 1076 mm
  • Net Weight: 23.200 kg
  • Number of Jaws: 4 Without Jaw Release
  • Warranty Length: 18 mth
  • Weight: 23.200 kg
  • Width: 311 mm
Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This branch unit is ringed and rated 125A. It has 3 four jaw sockets for use. The system voltage is 120/240 VAC and has no bypass. It includes a 800 A aluminium busbar. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.
QTY
  • Product Description
  • Features
  • Specifications
Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This branch unit is ringed and rated 125A. It has 3 four jaw sockets for use. The system voltage is 120/240 VAC and has no bypass. It includes a 800 A aluminium busbar. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Specifications
    • Country of Origin : United States
    • Width : 311 mm
    • Height : 1076 mm
    • Weight : 23.200 kg
    • Range Of Product : Meter-Pak
    • Bypass Type : no bypass
    • Number Of Meter Sockets : 3
    • Bus Rated Current : 800 A
    • Product Or Component Type : Meter Center Branch Unit
    • Meter Socket Type : ringed
    • Line Rated Current : 125 A
    • Number Of Jaws : 4 without jaw release
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2005009
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : N/A
    • Take-Back : No
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 618.631586219
  • Complementary
    • Product Certifications : UL Listed
    • Height : 1076 mm
    • Phase : 1 phase in || 1 phase out
    • Device Mounting : surface
    • [Ue] Rated Operational Voltage : 120/240 V AC
    • Net Weight : 23.200 kg
    • Nema Degree Of Protection : NEMA 3R
    • Material : aluminium: busbar
    • Enclosure Material : steel
    • Wiring Configuration : 3-wire
    • Width : 311 mm
    • Depth : 180 mm
  • Contractual warranty
    • Warranty : 18 months
