SQUARE D

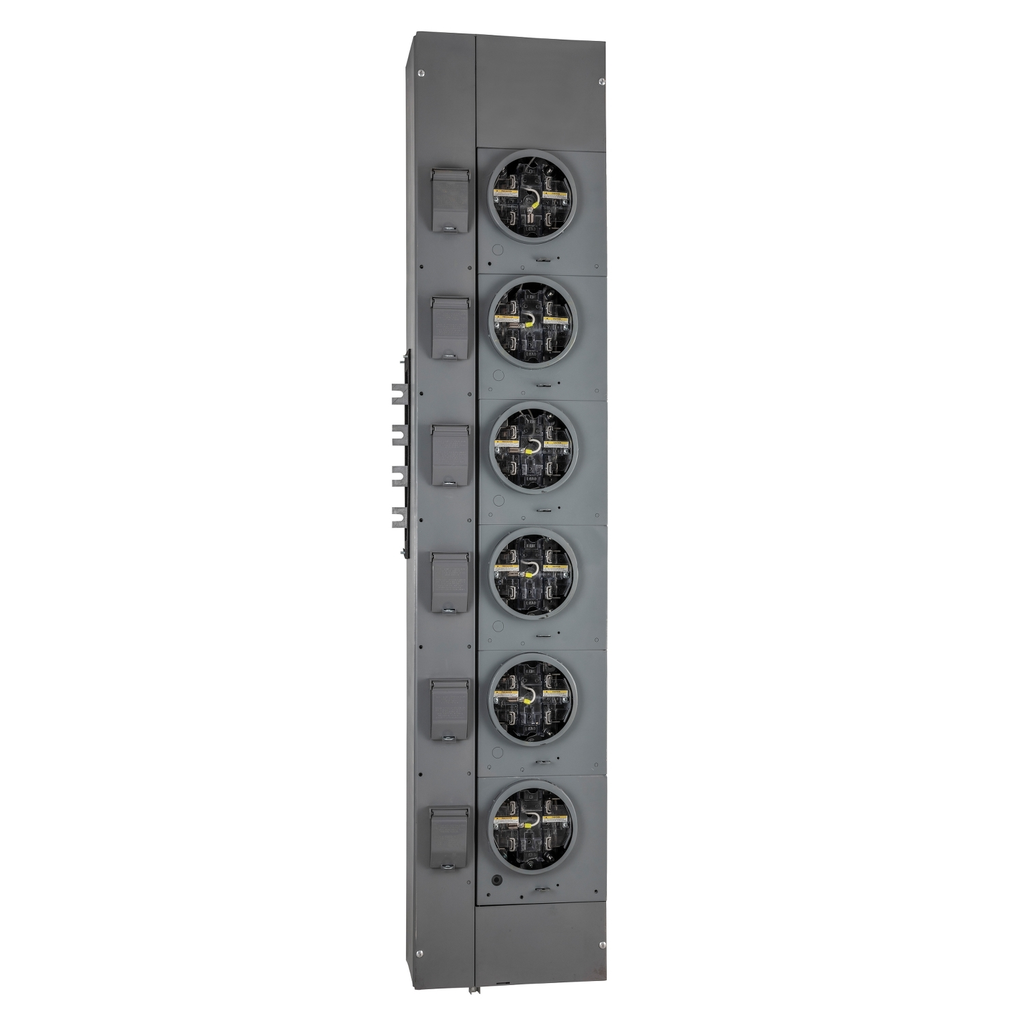

Branch unit, EZ Meter-Pak, 125A, 3 x 5 jaw sockets, 120/240VAC, lever bypass, ringless, 800A Al busbar

MTRING EZML BRANCH RINGLESS 3

SQDEZML113125 EZML113125 785901068136
2340.35 / EA
http://schema.org/OutOfStock
Mayer-DDS-Branch unit, EZ Meter-Pak, 125A, 3 x 5 jaw sockets, 120/240VAC, lever bypass, ringless, 800A Al busbar-1
  • Depth: 8.95 in
  • Height: 45 in
  • Number of Jaws: 5 With Jaw Release
  • Short Circuit Current Rating: 10 kA
  • Width: 15.38 in
Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This branch unit is ringless and rated 125A. It has 3 five jaw sockets for use. The system voltage is 120/240 VAC and has a lever bypass. It includes a 800 A aluminium busbar. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.
QTY
  • Product Description
  • Features
  • Specifications
Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This branch unit is ringless and rated 125A. It has 3 five jaw sockets for use. The system voltage is 120/240 VAC and has a lever bypass. It includes a 800 A aluminium busbar. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Height : 45 in
    • Phase : 1 phase in || 1 phase out
    • Device Mounting : surface
    • [Ue] Rated Operational Voltage : 120/240 V AC
    • Short-Circuit Current : 10 kA
    • Nema Degree Of Protection : NEMA 3R
    • Material : aluminium: busbar
    • Wiring Configuration : 3-wire
    • Width : 15.38 in
    • Depth : 8.95 in
  • Specifications
    • Country of Origin : Mexico
    • Width : 15.38 in
    • Height : 45 in
    • Range Of Product : Meter-Pak
    • Bypass Type : lever bypass
    • Number Of Meter Sockets : 3
    • Bus Rated Current : 800 A
    • Product Or Component Type : Meter Center Branch Unit
    • Meter Socket Type : ringless
    • Line Rated Current : 125 A
    • Number Of Jaws : 5 with jaw release
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Environmental Disclosure : ENVPEP2005009
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : N/A
    • Take-Back : No
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 734.997627988
