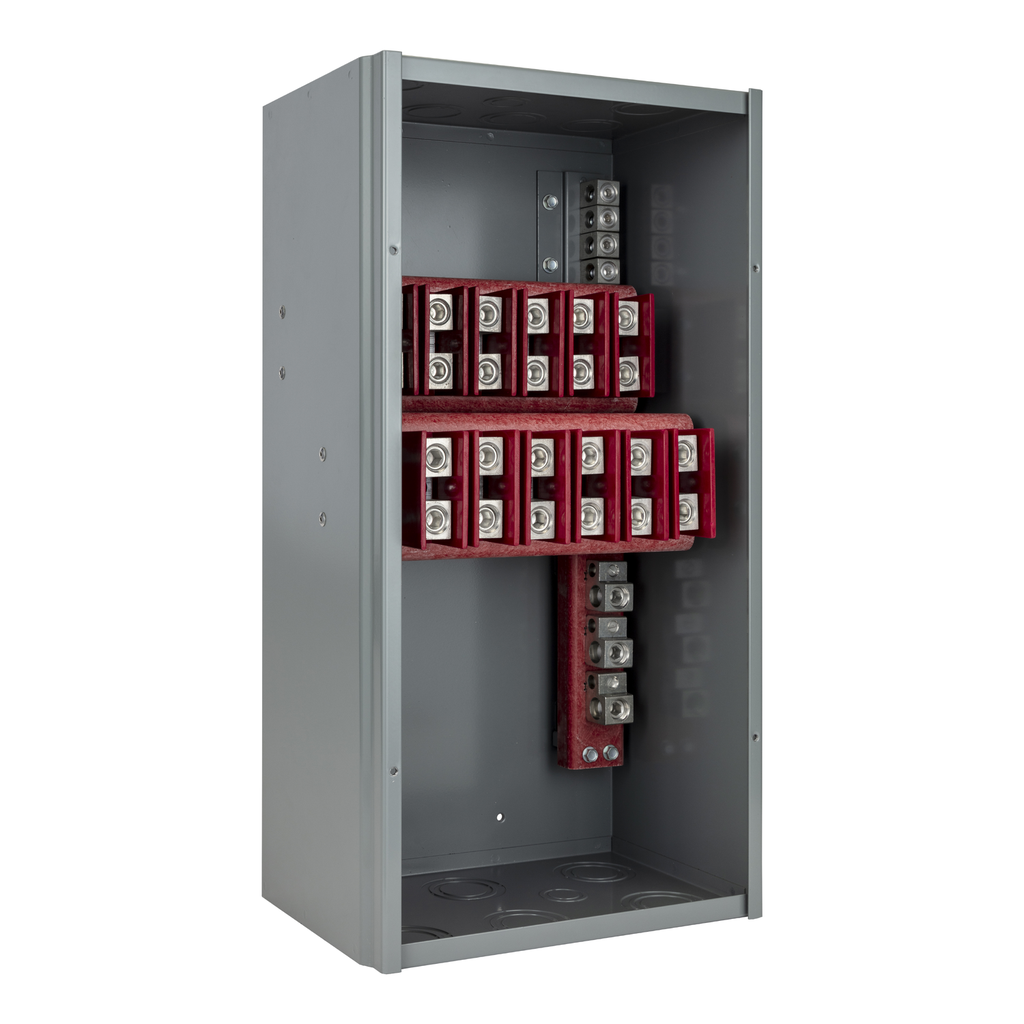

Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This terminal box is rated 125 A and has 6 circuits.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Conformance Attributes
• Product Certifications : UL Listed
• Complementary Attributes
• Line Rated Current : 125 A
• Important Information Attributes
• Persona Type Ids : EU, LC
• Persona Type Names : End User, Contractor
• Product Or Component Type : Meter Center Branch Unit, box
• Carbon Footprint Of The Distribution Phase A4 : 4.5157357357, 5 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 4 kg CO2 eq., 3.6244444444
• Carbon Footprint Of The Installation Phase A5 : 0.0343493994, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 147 kg CO2 eq., 146.8738738739
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 505 kg CO2 eq., 504.64
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-13
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : L - LOB initialized
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : COMMERCIAL
• Market Segmentation : Commercial
• H And D Domain : Safety
• H And D Subrange : RESI
• H And D Enrichment Assignment : yes
• H And D Enrichment Function : ACCESSORIES
• H And D Enrichment Class 3 : Meter enclosures
• H And D Enrichment Class 4 : Meter enclosure accessory
• Energy Efficiency Optimized : False
• Package Weight Lbs : 35 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Returnability : Yes
• Short Circuit Current : 100 kA
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 660 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2005009EN
• Pep Verification Date : 2020-11-01
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent external review
• Functional Unit Description : Protect persons during 20 years against direct contact with live parts and allow grouping monitoring. control and protection devices in a single enclosure or a cabinet having the following dimensions 22.6 cm x 37.6 cm x147.3 cm.
• Functional Unit Unit : unit
• Product Kit Identifier : N
• Product Manager : MAURICIO MORENO
• Environment Attributes Main
• EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Carbon Footprint : 659.6884034535
• Environmental Disclosure : ENVPEP2005009EN
• Nema Degree Of Protection : NEMA 1
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2005009EN
• Pep Verification Date : 2020-11-01
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : Meter Center Branch Unit, box
• Specifications
• Height : 22.99 in
• Width : 12.13 in
• Depth : 7.99 in
