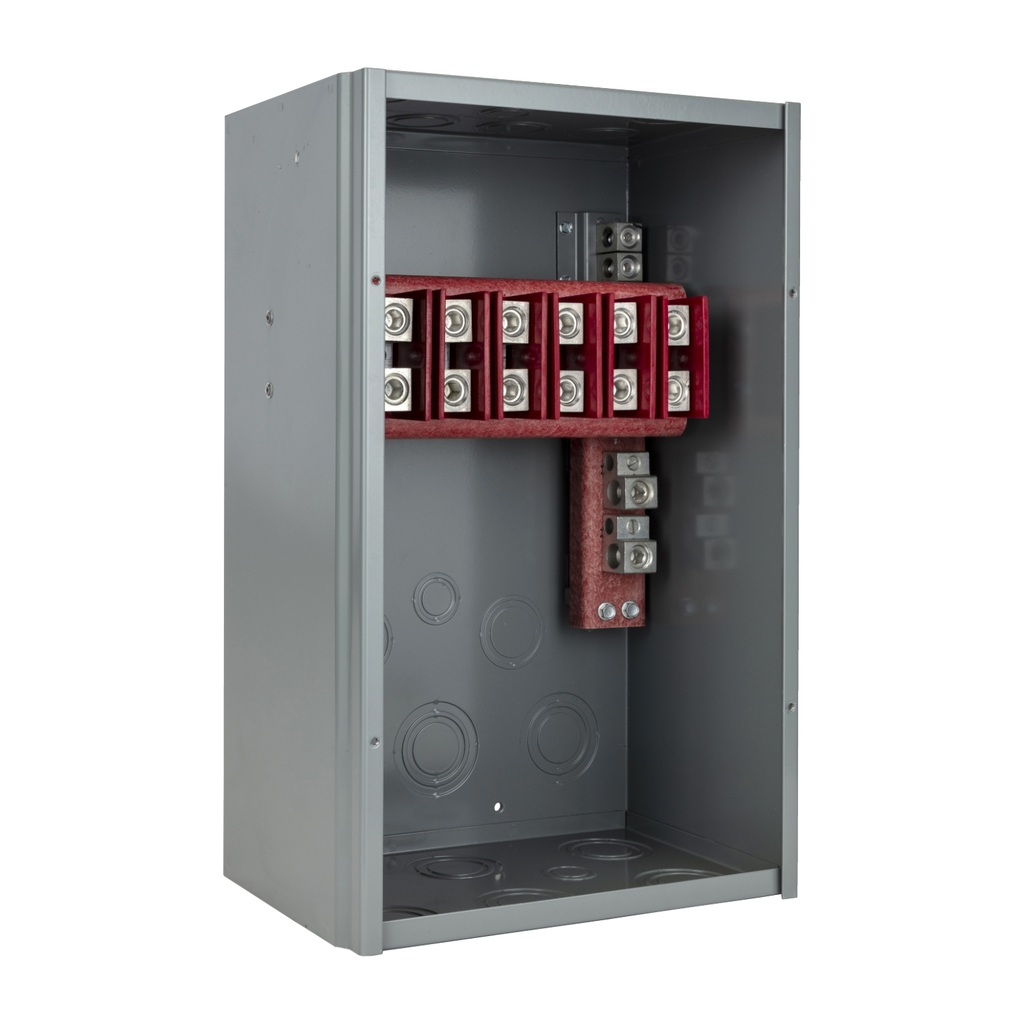

Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This terminal box is rated 125 A and has 3 circuits.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Line Rated Current : 125 A
• Important Information Attributes
• Persona Type Ids : EU, LC
• Persona Type Names : End User, Contractor
• Product Or Component Type : Meter Center Branch Unit, box
• Carbon Footprint Of The Distribution Phase A4 : 3.2255255255, 3 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 3 kg CO2 eq., 2.5888888889
• Carbon Footprint Of The Installation Phase A5 : 0.0245352853, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 105 kg CO2 eq., 104.9099099099
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 505 kg CO2 eq., 504.64
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-13
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• H And D Domain : Safety
• H And D Subrange : RESI
• H And D Enrichment Assignment : yes
• H And D Enrichment Function : ACCESSORIES
• H And D Enrichment Class 3 : Meter enclosures
• H And D Enrichment Class 4 : Meter enclosure accessory
• Use Carbon Footprint : 504.64
• Weee Scope : In
• Weee Product Category : 4
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 2532
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : No
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 3
• Tier : 3
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : COMMERCIAL
• Market Segmentation : Commercial
• Product Kit Identifier : N
• Energy Efficiency Optimized : False
• Product Availability : Stock - Normally stocked in distribution facility
• Range Of Product : Meter-Pak
• Returnability : Yes
• Short Circuit Current : 100 kA
• Software Version : EIME v5.8.1
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 615 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Warranty In Months : 18
• Pep Code : ENVPEP2005009EN
• Database Version : 2016-11
• Pep Verification Date : 2020-11-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent external review
• Data Source : extrapolated product
• Functional-unit Description : Protect persons during 20 years against direct contact with live parts and allow grouping monitoring. control and protection devices in a single enclosure or a cabinet having the following dimensions 22.6 cm x 37.6 cm x147.3 cm.
• Functional-unit Quantity : 1
• Functional-unit Unit : unit
• Reference Lifetime, In Y : 20
• Energy Consumption On Product Lifetime, In Kwh : 728.832
• Energy Model - Manufacturing [A1-a3] : Energy model used: Mexico
• Energy Model - Installation [A5] : Electricity mix; AC; consumption mix. at consumer; 120V; US
• Energy Model - Use [B6] : Electricity mix; AC; consumption mix. at consumer; 120V; US
• Energy Model - End Of Life [C1-c4] : Electricity mix; AC; consumption mix. at consumer; 120V; US
• Offer Owner Code : 190788
• Pn : 1
• Height Nominal : 490 mm
• Width Nominal : 311 mm
• Certificate Agency : UL Listed
• Air Pollution (M3) Operational Energy Use [B6] : 42855
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] : 6144.1
• Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6] : 504.64
• Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] : 13.492
• Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] : 77.159
• Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] : 6385.6
• Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] : 6793.6
• Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] : 408
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] : 6385.6
• Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] : 408
• Water Pollution (M3) Operational Energy Use [B6] : 24878
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
• Nema Degree Of Protection : NEMA 3R, NEMA 1
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• Mercury Free : Yes
• Carbon Footprint : 615.3888596096
• Environmental Disclosure : ENVPEP2005009EN
• Eu Rohs Directive : Compliant By Exemption
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2005009EN
• Pep Verification Date : 2020-11-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : Meter Center Branch Unit, box
• Range Of Product : Meter-Pak
• Specifications
• Country of Origin : Mexico
• Depth : 214 mm
