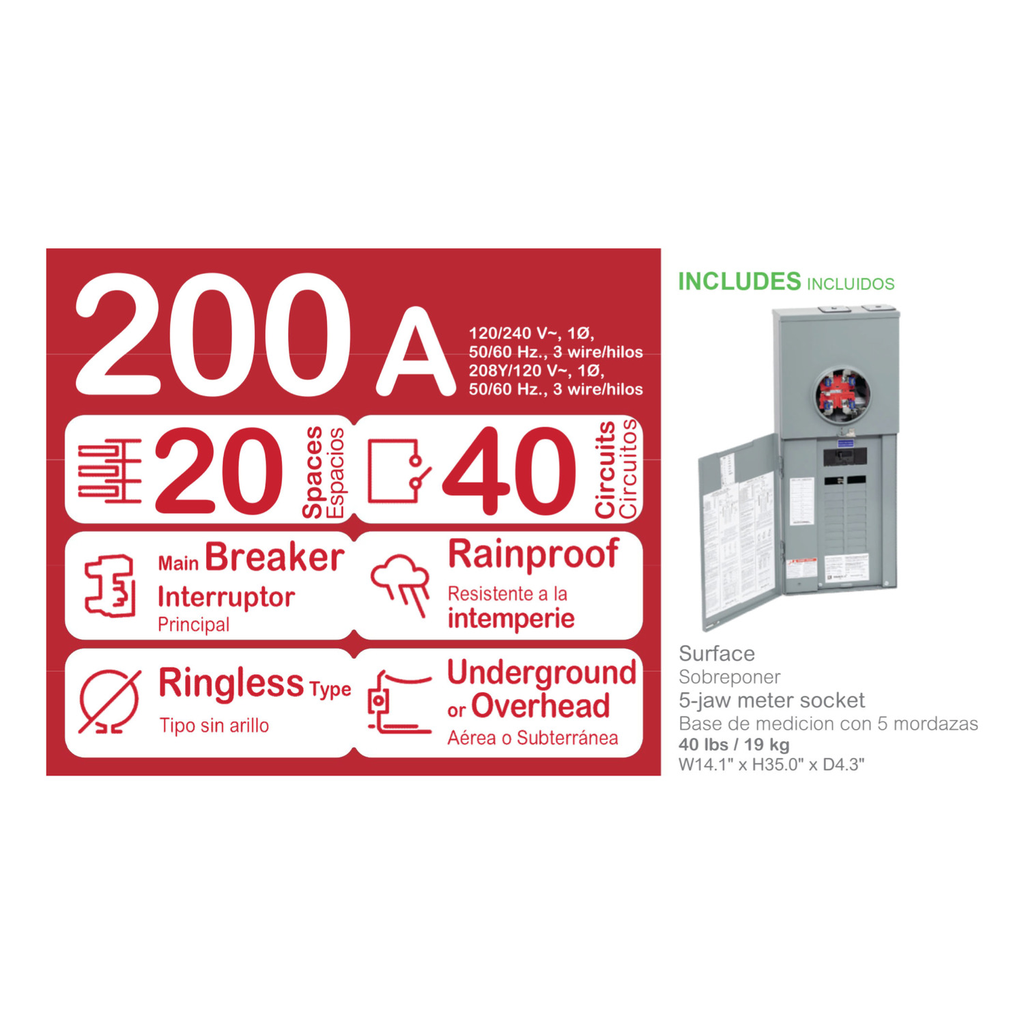

All in one, Homeline, combination service entrance, ringless socket, 200A, surface mount, 20 spaces, 40 circuits, 22kA SCCR, horn bypass

ALL-IN-ONE RINGLESS HORN OH/UG

SQDRC2040M200CH RC2040M200CH 785901841166
1641.50 / EACH
http://schema.org/OutOfStock
Mayer-DDS-All in one, Homeline, combination service entrance, ringless socket, 200A, surface mount, 20 spaces, 40 circuits, 22kA SCCR, horn bypass-2
  • Country of Origin: Mexico
  • Depth: 4.67 in
  • Height: 35.13 in
  • Number of Circuits: 40
  • Number of Spaces: 20
  • Warranty Length: 18 mth
  • Width: 14.37 in
Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be us
QTY
  • Product Description
  • Features
  • Specifications
Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be us
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0.046099451
    • 0 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 2 kg CO2 eq.
    • 1.7373122865
  • Electrical Connection
    • lugs, line side
    • lugs, service ground
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 77 kg CO2 eq.
    • 77.0682406771
  • Accessories
    • LK225AN
    • RCGK2
    • 5J
  • Persona Type Names
    • End User
    • Contractor
    • Electrician
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 317 kg CO2 eq.
    • 316.61
  • Persona Type Ids
    • EU
    • LC
    • SC
  • Service Feed Location
    • OH
    • UG
  • Carbon Footprint Of The Distribution Phase A4
    • 2.4579758958
    • 2 kg CO2 eq.
  • Tightening Torque
    • main lugs 250 lb.in, AWG 6...350 kcmil, aluminium/copper
    • service ground 50 lb.in, A
  • AWG Gauge
    • AWG 6...350 kcmil (aluminium) line side
    • AWG 6...350 kcmil (copper) line side
    • AWG 12...AWG 2/0 (alumi
  • Complementary Attributes
    • Branch Circuit Breaker Rated Current : 200 A
    • Bus Rated Current : 200.0 A
    • Line Rated Current : 200 A
    • Service Disconnect Rated Current : 200 A
  • Important Information Attributes
    • B2B Bullet Point 1 : Compatible with Homeline plug in mount breakers
    • B2B Bullet Point 2 : 5-jaw horn-bypass ringless meter socket
    • B2B Bullet Point 3 : Suitable for use as service entrance equipment
    • B2B Bullet Point 4 : 20-spaces, 40 circuits
    • B2B Bullet Point 5 : Accommodates plug-on secondary surge arrester and features a plug-in deisgn for easy installation
    • B2B Bullet Point 6 : NEMA type 3R enclosure for outdoor use
    • B2B Bullet Point 7 : UL listed and ANSI certified
    • B2B Bullet Point 8 : California residents see Prop 65 WARNINGS
    • Local Data Status : Publishable
    • Local Publishable Date : 7/9/2025
    • Manufacturing Carbon Footprint : 77.06824068
    • Distribution Carbon Footprint : 2.457975896
    • Installation Carbon Footprint : 0.046099451
    • Use Carbon Footprint : 316.61
    • End Of Life Carbon Footprint : 1.737312287
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : Yes
    • ROHS Eur Status : Compliant with Exemptions
    • ROHS Eur Conformity Date : 2534
    • ROHS Eur Full Compliance Status : Compliant with Exemptions
    • ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Meter enclosures
    • H And D Enrichment Class 4 : Combination service entrance device
    • Device Composition : service disconnect (factory installed)
    • Energy Efficiency Optimized : FALSE
    • Hub Type : A
    • Meter Socket Type : ringless
    • Number Of Circuits : 40
    • Number Of Spaces : 20
    • Number Of Tandem Circuit Breakers : 20
    • Package Weight Lbs : 19.051 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : All-In-One
    • Range Of Product : Homeline
    • Returnability : Yes
    • Short Circuit Current : 22 kA
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 398 kg CO2 eq.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 397.9196283
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Product Or Component Type : All-In-One
    • Range Of Product : Homeline
  • Output Attributes
    • Bypass Type : horn bypass
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=361717&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0%
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Carbon Footprint : 397.9196283
    • Environmental Disclosure : ENVPEP2509019
    • Eu Rohs Directive : Compliant with Exemptions
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
    • Height : 35.13 in
    • Width : 14.37 in
    • Depth : 4.67 in
