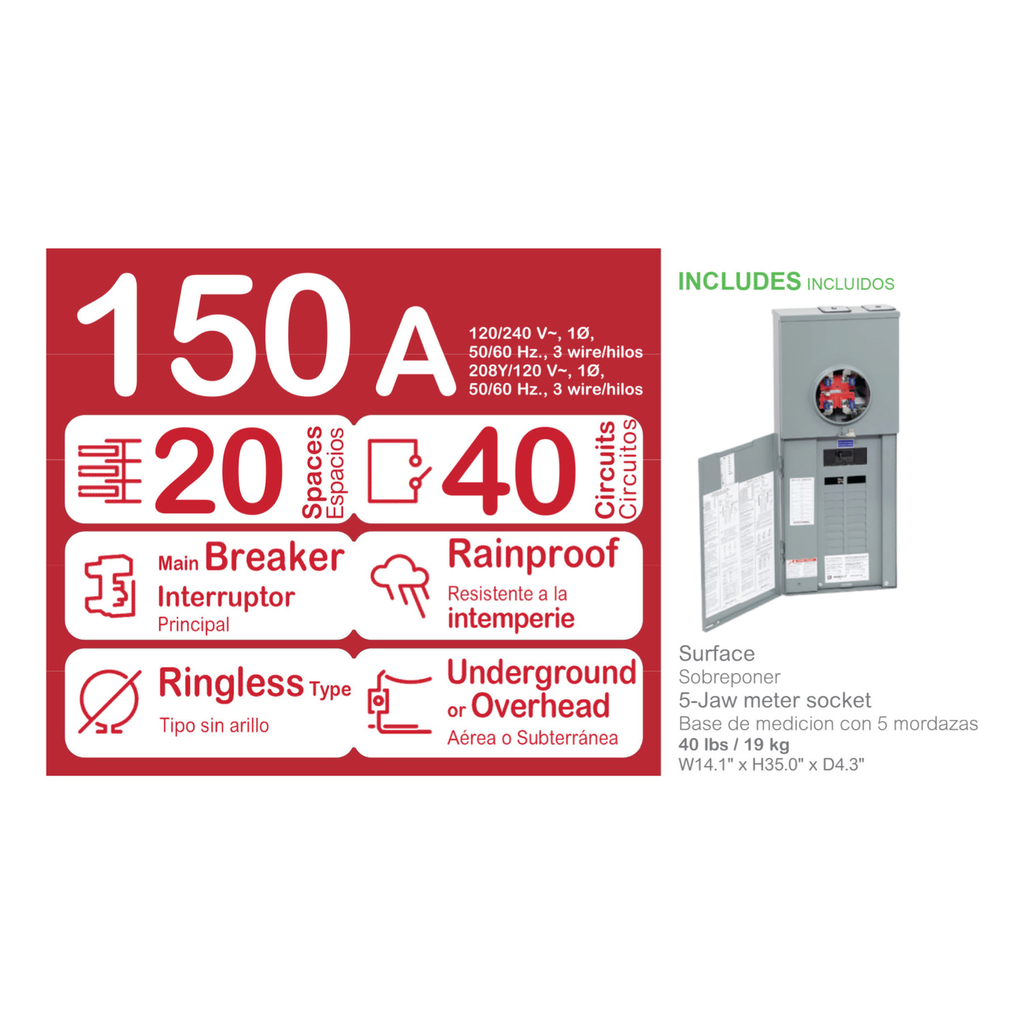

All in one, Homeline, CSED, ringless socket, 150A, surface mount, 20 spaces, 40 circuits, 22kA SCCR, horn bypass

ALL-IN-ONE RINGLESS HORN OH/UG

SQDRC2040M150CH RC2040M150CH 785901878315
1825.60 / EACH
http://schema.org/OutOfStock
Mayer-DDS-All in one, Homeline, CSED, ringless socket, 150A, surface mount, 20 spaces, 40 circuits, 22kA SCCR, horn bypass-1
  • Country of Origin: Mexico
  • Depth: 5.07 in
  • Number of Circuits: 40
  • Number of Spaces: 20
  • Warranty Length: 18 mth
Homeline ringless single phase All-In-One designed specifically for areas where local codes allow main breaker load centers for residential use to be mounted outdoors. They provide a meter socket that supports a standard utility meter, a main disconnect and load center distribution for 20 spaces and 40 circuits. This surface mounted device has UL listed rated current rating as 150A and short-circuit current 22kA. Factory installed main breaker, compact design, overhead and or underground feed, bypass type, wiring room with 6.5inch deep enclosures are ideal solution for easy installation. Knockouts above the top right-side wire gutter provides easy exit for load center wires. Factory installed blade guides on line and load meter jaws ensures proper alignment of meter blades with meter jaws to prevent meter socket damage. Forward tilted top endwall promotes water run-off to prevent pooling. All units built per ANSI C12.7, NEMA PB-1, UL standards 50, 67 and 414 and are listed in UL file number E-6294. Devices meet Federal Specifications W-P-115C for government housing. Devices meet the Electric Utility Service Equipment Requirements Committee (EUSERC) standards, meets EUSERC Requirements.
QTY
  • Product Description
  • Features
  • Specifications
Homeline ringless single phase All-In-One designed specifically for areas where local codes allow main breaker load centers for residential use to be mounted outdoors. They provide a meter socket that supports a standard utility meter, a main disconnect and load center distribution for 20 spaces and 40 circuits. This surface mounted device has UL listed rated current rating as 150A and short-circuit current 22kA. Factory installed main breaker, compact design, overhead and or underground feed, bypass type, wiring room with 6.5inch deep enclosures are ideal solution for easy installation. Knockouts above the top right-side wire gutter provides easy exit for load center wires. Factory installed blade guides on line and load meter jaws ensures proper alignment of meter blades with meter jaws to prevent meter socket damage. Forward tilted top endwall promotes water run-off to prevent pooling. All units built per ANSI C12.7, NEMA PB-1, UL standards 50, 67 and 414 and are listed in UL file number E-6294. Devices meet Federal Specifications W-P-115C for government housing. Devices meet the Electric Utility Service Equipment Requirements Committee (EUSERC) standards, meets EUSERC Requirements.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Branch Circuit Breaker Rated Current : 150 A
    • Bus Rated Current : 200.0 A
    • Line Rated Current : 150 A
    • Service Disconnect Rated Current : 150 A
  • Important Information Attributes
    • Persona Type Ids : EU, LC, SC
    • Persona Type Names : End User, Contractor, Electrician
    • Awg Gauge : AWG 12...AWG 2/0 (copper) service groundAWG 6...350 kcmil (aluminium) line side, AWG 6...350 kcmil (copper) line side, AWG 12...AWG 2/0 (aluminium) service ground
    • Electrical Connection : lugs, line side, lugs, service ground
    • Service Feed Location : OH, UG
    • Tightening Torque : main lugs 250 lb.in, AWG 6...350 kcmil, aluminium/copper, service ground 50 lb.in, AWG 14...AWG 2/0, copper, service ground 50 lb.in, AWG 12...AWG 2/0, aluminium, branch lugs 50 lb.in, AWG 14...AWG 1/0, copper, branch lugs 50 lb.in, AWG 12...AWG 1/0, aluminium, branch lugs 35 lb.in, AWG 6...AWG 4, aluminium/copper, branch lugs 25 lb.in, AWG 8, aluminium/copper, branch lugs 20 lb.in, AWG 14...AWG 10, aluminium/copper, branch lugs 20 lb.in, AWG 12...AWG 10, aluminium/copper, Cover 10 lb.in
    • Carbon Footprint Of The Distribution Phase A4 : 12.87841541627189, 13 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 30 kg CO2 eq., 30.05903044291496
    • Carbon Footprint Of The Installation Phase A5 : 0.25153906316057767, 0.3 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 120 kg CO2 eq., 120.06766137681272
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 20 kg CO2 eq., 19.79338009122855
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-18
    • Return Indicator : Y
    • Stocking Flag : N
    • Stock Policy : 2
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Meter enclosures
    • H And D Enrichment Class 4 : Combination service entrance device
    • Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : Outside of Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 2534
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : No
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • Product Kit Identifier : N
    • Device Composition : service disconnect (factory installed)
    • Energy Efficiency Optimized : False
    • Hub Type : A
    • Meter Socket Type : ringless
    • Number Of Circuits : 40
    • Number Of Spaces : 20
    • Number Of Tandem Circuit Breakers : 20
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : All-In-One
    • Range Of Product : Homeline
    • Returnability : Yes
    • Short Circuit Current : 22 kA
    • Software Version : v6.2.5-6
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 183 kg CO2 eq.
    • Warranty In Months : 18
    • Pep Code : ENVPEP2509019EN
    • Database Version : 2024-01
    • Pep Verification Date : 2025-09-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional-unit Description : When a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functionsThe installation must be protected against overloads and short circuits in accordance with the circuit’s rated voltage (Ue), rated current (In), number of poles (Np), rated breaking capacity (Icn), and tripping curve (Cd). The protective device should be capable of establishing, carrying, and interrupting the rated current at the rated voltage. It must be suitable for wall-mounted or enclosure/cabinet installations in household or commercial environments, depending on the intended use. Additionally, the device should be designed to maintain reliable performance throughout a reference service life of 20 years.
    • Functional-unit Quantity : 1
    • Functional-unit Unit : unit
    • Reference Lifetime, In Y : 20
    • Energy Model - Manufacturing [A1-a3] : Electricity Mix; Low voltage; 2020; Mexico, MX
    • Energy Model - Installation [A5] : No energy used
    • Energy Model - Use [B6] : Electricity Mix; Low voltage; 2020; United States, US
    • Energy Model - End Of Life [C1-c4] : Global, European and French datasets are used.
    • Recyclability Potential, In % : 89
    • Offer Owner Code : 190788
    • Pn : 1
    • Height Nominal : 36.69 in
    • Width Nominal : 14.37 in
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • Mercury Free : Yes
    • Carbon Footprint : 183.05002639038872
    • Environmental Disclosure : ENVPEP2509019EN
    • Eu Rohs Directive : Compliant By Exemption
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2509019EN
    • Pep Verification Date : 2025-09-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : All-In-One
    • Range Of Product : Homeline
  • Output Attributes
    • Bypass Type : horn bypass
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
    • Depth : 5.07 in
