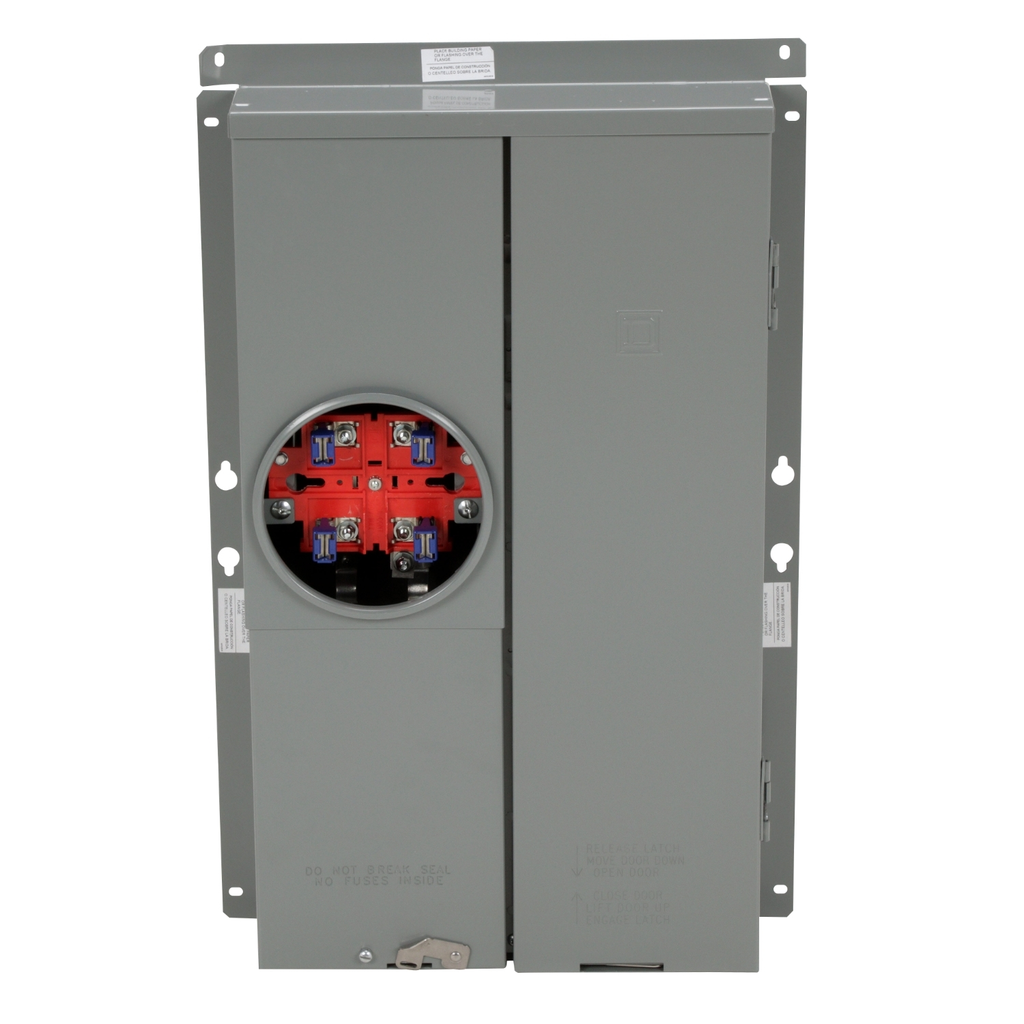

All in one, Homeline, CSED, ringed socket, 125A, semi flush mount, 16 spaces, 24 circuits, 10kA SCCR, no bypass

CSED ALL-IN-ONE SEMI-FLUSH 125

SQDSC1624M125F SC1624M125F 785901107804
1420.05 / EACH
http://schema.org/OutOfStock
Mayer-DDS-All in one, Homeline, CSED, ringed socket, 125A, semi flush mount, 16 spaces, 24 circuits, 10kA SCCR, no bypass-2
  • Depth: 3.40 in
  • Height: 26.42 in
  • Number of Circuits: 24
  • Number of Spaces: 16
  • Short Circuit Current Rating: 10 kA
  • Warranty Length: 18 mth
  • Width: 14.50 in
Homeline ring type single phase All-In-One designed specifically for areas where local codes allow main breaker load centers for residential use to be mounted outdoors. They provide a meter socket that supports a standard utility meter, a main disconnect and load center distribution for 16 spaces and 24 circuits. This semiflush mounted device has UL listed rated current rating as 125A and short-circuit current 10kA. Factory installed main breaker, compact design, overhead and or underground feed, wiring room with 6.5inch deep enclosures are ideal solution for easy installation. Knockouts above the top right-side wire gutter provides easy exit for load center wires. Factory installed blade guides on line and load meter jaws ensures proper alignment of meter blades with meter jaws to prevent meter socket damage. Forward tilted top endwall promotes water run-off to prevent pooling. All units built per ANSI C12.7, NEMA PB-1, UL standards 50, 67 and 414 and are listed in UL file number E-6294. Devices meet Federal Specifications W-P-115C for government housing. Devices meet the Electric Utility Service Equipment Requirements Committee (EUSERC) standards, meets EUSERC Requirements.
QTY
  • Product Description
  • Features
  • Specifications
Homeline ring type single phase All-In-One designed specifically for areas where local codes allow main breaker load centers for residential use to be mounted outdoors. They provide a meter socket that supports a standard utility meter, a main disconnect and load center distribution for 16 spaces and 24 circuits. This semiflush mounted device has UL listed rated current rating as 125A and short-circuit current 10kA. Factory installed main breaker, compact design, overhead and or underground feed, wiring room with 6.5inch deep enclosures are ideal solution for easy installation. Knockouts above the top right-side wire gutter provides easy exit for load center wires. Factory installed blade guides on line and load meter jaws ensures proper alignment of meter blades with meter jaws to prevent meter socket damage. Forward tilted top endwall promotes water run-off to prevent pooling. All units built per ANSI C12.7, NEMA PB-1, UL standards 50, 67 and 414 and are listed in UL file number E-6294. Devices meet Federal Specifications W-P-115C for government housing. Devices meet the Electric Utility Service Equipment Requirements Committee (EUSERC) standards, meets EUSERC Requirements.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Height : 26.42 in
    • Tightening Torque : main lugs 50 lb.in, AWG 6...AWG 2/0, aluminium/copper || service ground 50 lb.in, AWG 6...AWG 2/0, aluminium/copper || branch lugs 35 lb.in, AWG 6...AWG 4, aluminium/copper || branch lugs 25 lb.in, AWG 8, aluminium/copper || branch lugs 20 lb.in, AWG 14...AWG 10, aluminium/copper || branch lugs 20 lb.in, AWG 12...AWG 10, aluminium/copper || Cover 10 lb.in
    • Branch Circuit Breaker Rated Current : 110 A
    • Bypass Type : no bypass
    • Service Feed Location : OH || UG
    • Bus Rated Current : 125.0 A
    • Electrical Connection : lugs, line side || lugs, service ground
    • Number Of Circuits : 24
    • Number Of Spaces : 16
    • Short-Circuit Current : 10 kA
    • Number Of Tandem Circuit Breakers : 8
    • Service Disconnect Rated Current : 125 A
    • Line Rated Current : 125 A
    • Width : 14.50 in
    • Awg Gauge : AWG 6...AWG 2/0 (aluminium) line side || AWG 6...AWG 2/0 (copper) line side || AWG 6...AWG 2/0 (aluminium) service ground || AWG 6...AWG 2/0 (copper) service ground
    • Depth : 3.40 in
    • Device Composition : service disconnect (factory installed)
    • Device Mounting : semi flush
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1407020EN
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : N/A
    • Take-Back : No
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 390.1177281187
  • Specifications
    • Country of Origin : Mexico
    • Width : 14.50 in
    • Height : 26.42 in
    • Range Of Product : Homeline
    • Product Or Component Type : All-In-One
    • Hub Type : B300 || A
    • Meter Socket Type : ringed
  • Contractual warranty
    • Warranty : 18 months
