SQUARE D

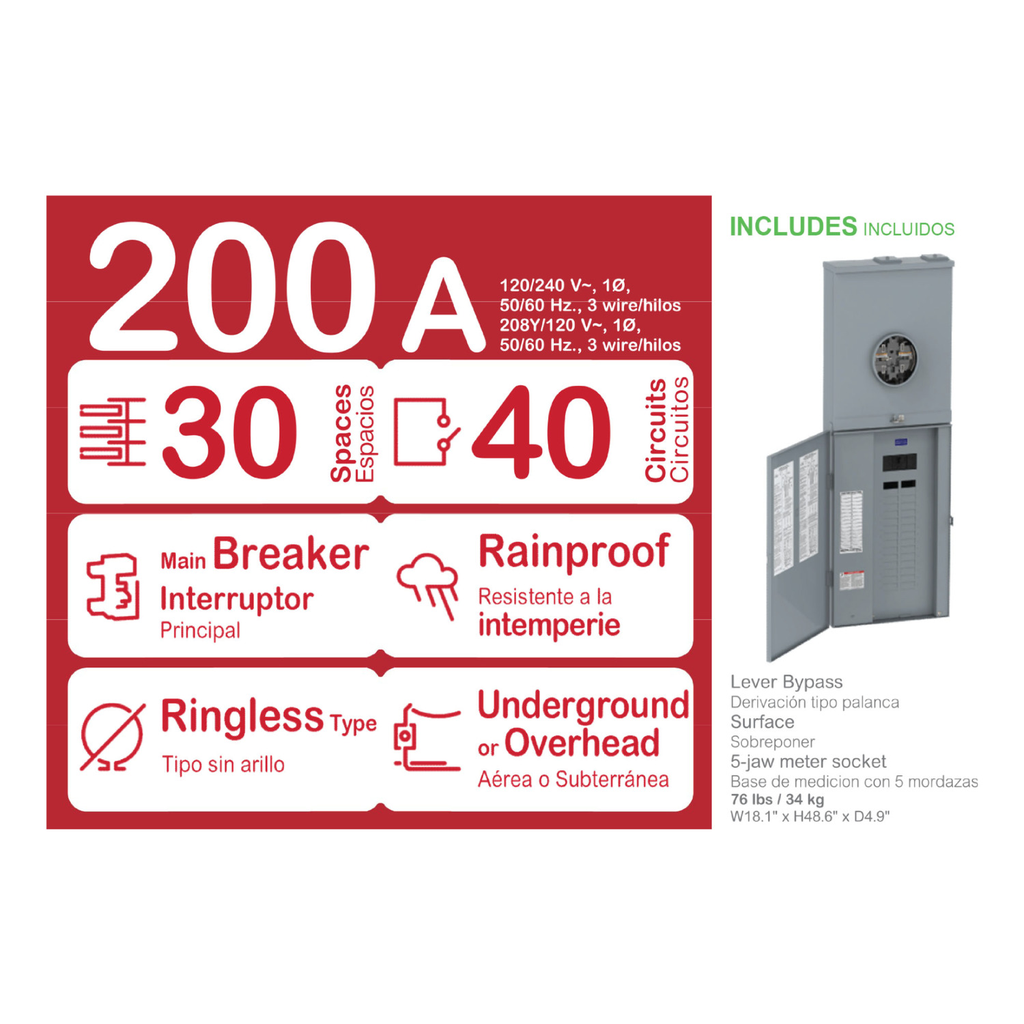

All in one, Homeline, combination service entrance, ringless socket, 200A, surface, 30 spaces, 40 circuits, 22kA SCCR, OH, UG, lever bypass

LEVER BY-PASS HOM ALL-IN-ONE O

SQDRC3040M200SL RC3040M200SL 785901525059
4583.81 / EACH
http://schema.org/OutOfStock
Mayer-DDS-All in one, Homeline, combination service entrance, ringless socket, 200A, surface, 30 spaces, 40 circuits, 22kA SCCR, OH, UG, lever bypass-2
  • Country of Origin: USA
  • Depth: 6.05 in
  • Height: 48.62 in
  • Number of Circuits: 40
  • Number of Spaces: 30
  • Short Circuit Current Rating: 22 kA
  • Warranty Length: 18 mth
  • Width: 18.35 in
The Square D® Load Centers and Combination Service Entrance Devices, RC3040M200SL, meets Federal Specification W-P-115c as Type 1, Class 2, are UL Listed, suitable only for use as service equipment, meets EUSERC standards .
QTY
  • Product Description
  • Features
  • Specifications
The Square D® Load Centers and Combination Service Entrance Devices, RC3040M200SL, meets Federal Specification W-P-115c as Type 1, Class 2, are UL Listed, suitable only for use as service equipment, meets EUSERC standards .
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Specifications
    • Country of Origin : United States
    • Width : 18.35 in
    • Height : 48.62 in
    • Range Of Product : Homeline
    • Product Or Component Type : All-In-One
    • Hub Type : A
    • Meter Socket Type : ringless
  • Complementary
    • Height : 48.62 in
    • Tightening Torque : main lugs 250 lb.in, AWG 6...350 kcmil, aluminium/copper || service ground 50 lb.in, AWG 3...AWG 2/0, aluminium/copper || service ground 45 lb.in, AWG 6...AWG 4, aluminium/copper || service ground 40 lb.in, AWG 8, aluminium/copper || branch lugs 35 lb.in, AWG 6...AWG 4, aluminium/copper || branch lugs 25 lb.in, AWG 8, aluminium/copper || branch lugs 20 lb.in, AWG 14...AWG 10, aluminium/copper || branch lugs 20 lb.in, AWG 12...AWG 10, aluminium/copper || Cover 10 lb.in
    • Branch Circuit Breaker Rated Current : 200 A
    • Bypass Type : lever bypass
    • Service Feed Location : OH || UG
    • Bus Rated Current : 200.0 A
    • Electrical Connection : lugs, line side || lugs, service ground
    • Number Of Circuits : 40
    • Number Of Spaces : 30
    • Short-Circuit Current : 22 kA
    • Number Of Tandem Circuit Breakers : 10
    • Service Disconnect Rated Current : 200 A
    • Line Rated Current : 200 A
    • Width : 18.35 in
    • Awg Gauge : AWG 6...350 kcmil (aluminium/copper) line side || AWG 8...AWG 2/0 (aluminium/copper) service ground
    • Depth : 6.05 in
    • Device Composition : service disconnect (factory installed)
    • Device Mounting : surface
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1407020EN
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : N/A
    • Take-Back : No
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 463.7406921813
  • Contractual warranty
    • Warranty : 18 months
