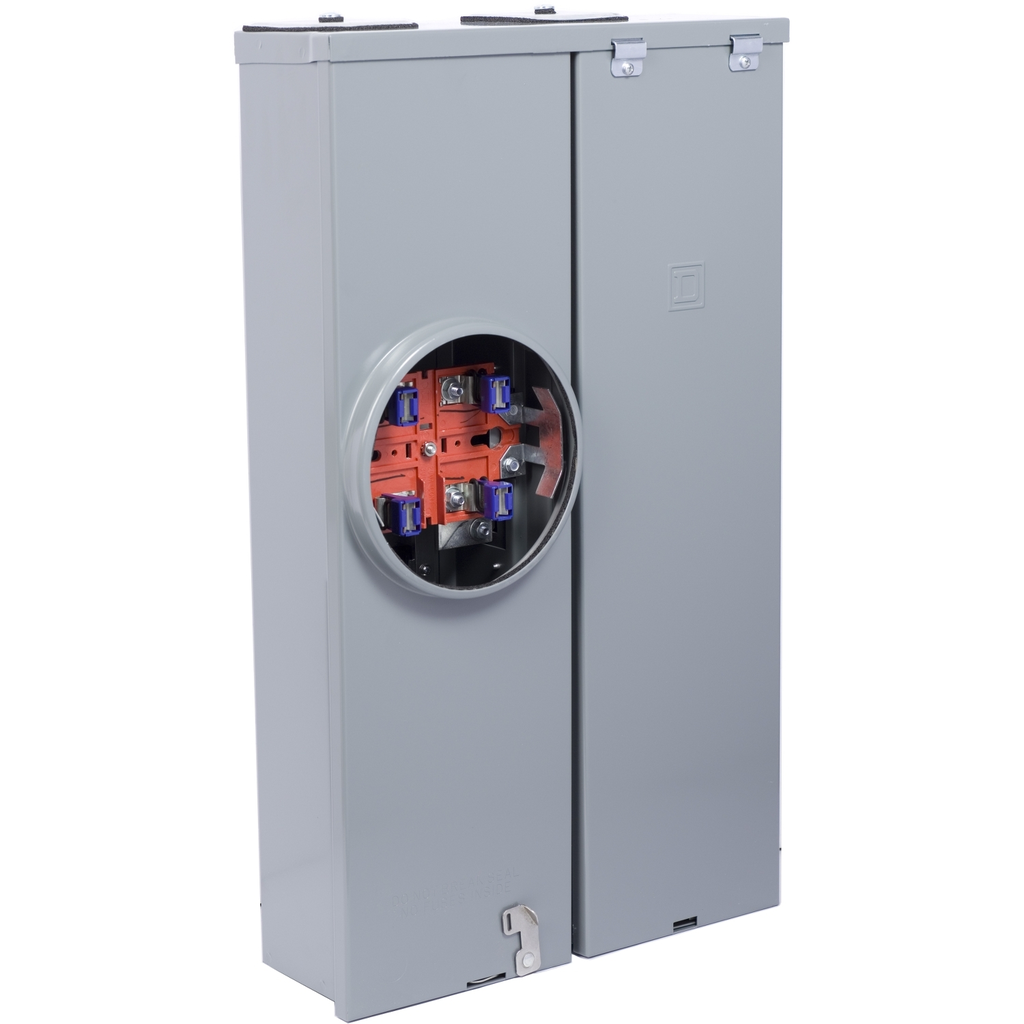

All in one, Homeline, CSED, ringless socket, 100A, surface mount, 16 spaces, 24 circuits, 10kA SCCR, no bypass

ALL IN ONE RINGLESS T-OH/UG 10

SQDRC1624M100S RC1624M100S 785901308843
712.94 / EACH
http://schema.org/OutOfStock
Mayer-DDS-All in one, Homeline, CSED, ringless socket, 100A, surface mount, 16 spaces, 24 circuits, 10kA SCCR, no bypass-2
  • Country of Origin: Mexico
  • Depth: 5.55 in
  • Height: 27.00 in
  • Number of Circuits: 24
  • Number of Spaces: 16
  • Warranty Length: 18 mth
  • Width: 14.77 in
Homeline ringless single phase All-In-One designed specifically for areas where local codes allow main breaker load centers for residential use to be mounted outdoors. They provide a meter socket that supports a standard utility meter, a main disconnect
QTY
  • Product Description
  • Features
  • Specifications
Homeline ringless single phase All-In-One designed specifically for areas where local codes allow main breaker load centers for residential use to be mounted outdoors. They provide a meter socket that supports a standard utility meter, a main disconnect
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0.0333447292
    • 0 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 1 kg CO2 eq.
    • 1.2566355208
  • Electrical Connection
    • lugs, line side
    • lugs, service ground
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 56 kg CO2 eq.
    • 55.7451239583
  • Accessories
    • 5J
    • HOMFP
    • A125
  • Persona Type Names
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • Electrician
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 317 kg CO2 eq.
    • 316.61
  • Persona Type Ids
    • EU
    • LC
    • OM
    • SC
  • Service Feed Location
    • OH
    • UG
  • Carbon Footprint Of The Distribution Phase A4
    • 1.7779070833
    • 2 kg CO2 eq.
  • AWG Gauge
    • AWG 6...AWG 2/0 (aluminium) line side
    • AWG 6...AWG 2/0 (copper) line side
    • AWG 6...AWG 2/0 (aluminium) service
  • Complementary Attributes
    • Branch Circuit Breaker Rated Current : 100 A
    • Bus Rated Current : 125.0 A
    • Line Rated Current : 100 A
    • Service Disconnect Rated Current : 100 A
  • Important Information Attributes
    • B2B Bullet Point 1 : Compatible with Homeline plug in mount breakers
    • B2B Bullet Point 2 : 4-jaw no-bypass ringless meter socket
    • B2B Bullet Point 3 : Suitable for use as service entrance equipment
    • B2B Bullet Point 4 : 16-spaces, 24 circuits
    • B2B Bullet Point 5 : Accommodates plug-on secondary surge arrester and features a plug-in deisgn for easy installation
    • B2B Bullet Point 6 : NEMA type 3R enclosure for outdoor use
    • B2B Bullet Point 7 : UL listed and ANSI certified
    • B2B Bullet Point 8 : California residents see Prop 65 WARNINGS
    • Local Data Status : Publishable
    • Local Publishable Date : 5/31/2025
    • Manufacturing Carbon Footprint : 55.74512396
    • Distribution Carbon Footprint : 1.777907083
    • Installation Carbon Footprint : 0.033344729
    • Use Carbon Footprint : 316.61
    • End Of Life Carbon Footprint : 1.256635521
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : Yes
    • ROHS Eur Status : Compliant with Exemptions
    • ROHS Eur Conformity Date : 2534
    • ROHS Eur Full Compliance Status : Compliant with Exemptions
    • ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Meter enclosures
    • H And D Enrichment Class 4 : Combination service entrance device
    • Device Composition : service disconnect (factory installed)
    • Energy Efficiency Optimized : FALSE
    • Hub Type : A
    • Meter Socket Type : ringless
    • Number Of Circuits : 24
    • Number Of Spaces : 16
    • Number Of Tandem Circuit Breakers : 8
    • Package Weight Lbs : 13.880 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : All-In-One
    • Range Of Product : Homeline
    • Returnability : Yes
    • Short Circuit Current : 10 kA
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 375 kg CO2 eq.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 375.4230113
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Product Or Component Type : All-In-One
    • Range Of Product : Homeline
  • Output Attributes
    • Bypass Type : no bypass
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=361701&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0%
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Carbon Footprint : 375.4230113
    • Environmental Disclosure : ENVPEP2509019
    • Eu Rohs Directive : Compliant with Exemptions
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
    • Height : 27.00 in
    • Width : 14.77 in
    • Depth : 5.55 in
