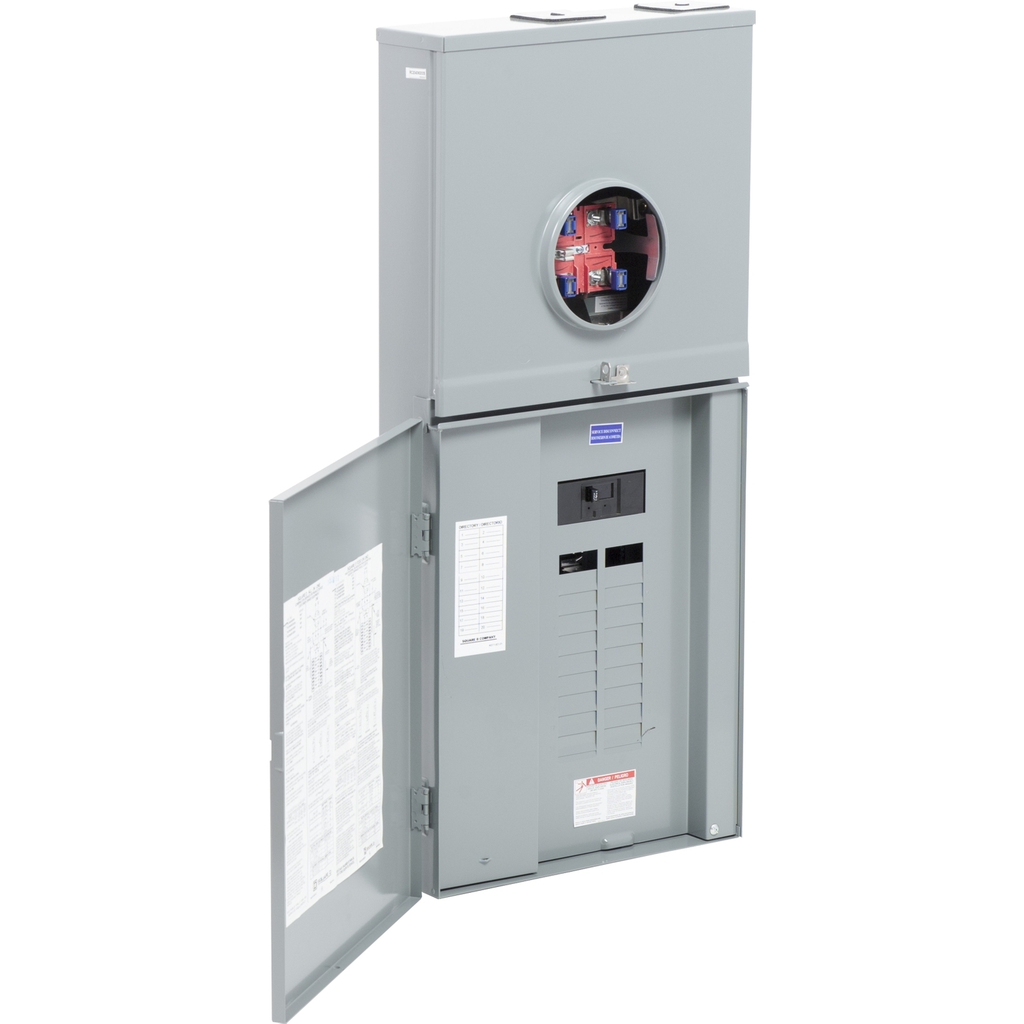

Homeline ringless single phase All-In-One designed specifically for areas where local codes allow main breaker load centers for residential use to be mounted outdoors. They provide a meter socket that supports a standard utility meter, a main disconnect

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.0713427177
• 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 3 kg CO2 eq.
• 2.6886346198
• Electrical Connection
• lugs, line side
• lugs, service ground
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 119 kg CO2 eq.
• 119.2694840104
• Accessories
• MMBLC
• SR69064A
• A125
• Persona Type Names
• End User
• Contractor
• Original Equipment Manufacturer
• Electrician
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 317 kg CO2 eq.
• 316.61
• Persona Type Ids
• EU
• LC
• OM
• SC
• Service Feed Location
• UG
• OH outdoor
• Carbon Footprint Of The Distribution Phase A4
• 3.8039212292
• 4 kg CO2 eq.
• Tightening Torque
• main lugs 250 lb.in, AWG 6...350 kcmil, aluminium/copper
• service ground 50 lb.in, A
• AWG Gauge
• AWG 6...350 kcmil (aluminium/copper) line side
• AWG 8...AWG 2/0 (aluminium/copper) service ground
• AWG 8...AWG 2

• Complementary Attributes
• Branch Circuit Breaker Rated Current : 200 A
• Bus Rated Current : 200.0 A
• Line Rated Current : 200 A
• Service Disconnect Rated Current : 200 A
• Important Information Attributes
• B2B Bullet Point 1 : Compatible with Homeline plug in mount breakers
• B2B Bullet Point 2 : 5-jaw horn-bypass ringless meter socket
• B2B Bullet Point 3 : Suitable for use as service entrance equipment
• B2B Bullet Point 4 : 20-spaces, 40 circuits
• B2B Bullet Point 5 : Accommodates plug-on secondary surge arrester and features a plug-in deisgn for easy installation
• B2B Bullet Point 6 : NEMA type 3R enclosure for outdoor use
• B2B Bullet Point 7 : UL listed and ANSI certified
• B2B Bullet Point 8 : California residents see Prop 65 WARNINGS
• Local Data Status : Publishable
• Local Publishable Date : 5/31/2025
• Manufacturing Carbon Footprint : 119.269484
• Distribution Carbon Footprint : 3.803921229
• Installation Carbon Footprint : 0.071342718
• Use Carbon Footprint : 316.61
• End Of Life Carbon Footprint : 2.68863462
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 2534
• ROHS Eur Full Compliance Status : Compliant with Exemptions
• ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : A - SELECTED - PCE ONLY (Migration)
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : RESIDENTIAL
• Market Segmentation : Residential
• H And D Domain : Safety
• H And D Subrange : RESI
• H And D Enrichment Assignment : no
• H And D Enrichment Function : ENCLOSURES
• H And D Enrichment Class 3 : Meter enclosures
• H And D Enrichment Class 4 : Combination service entrance device
• Device Composition : service disconnect (factory installed)
• Energy Efficiency Optimized : FALSE
• Hub Type : A
• Meter Socket Type : ringless
• Number Of Circuits : 40
• Number Of Spaces : 20
• Number Of Tandem Circuit Breakers : 20
• Package Weight Lbs : 29.483 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : All-In-One
• Range Of Product : Homeline
• Returnability : Yes
• Short Circuit Current : 22 kA
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 442 kg CO2 eq.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 442.4433826
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : All-In-One
• Range Of Product : Homeline
• Output Attributes
• Bypass Type : horn bypass
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=403075376&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0%
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Carbon Footprint : 442.4433826
• Environmental Disclosure : ENVPEP2509019
• Eu Rohs Directive : Compliant with Exemptions
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
• Height : 41.18 in
• Width : 18.76 in
• Depth : 5.41 in
