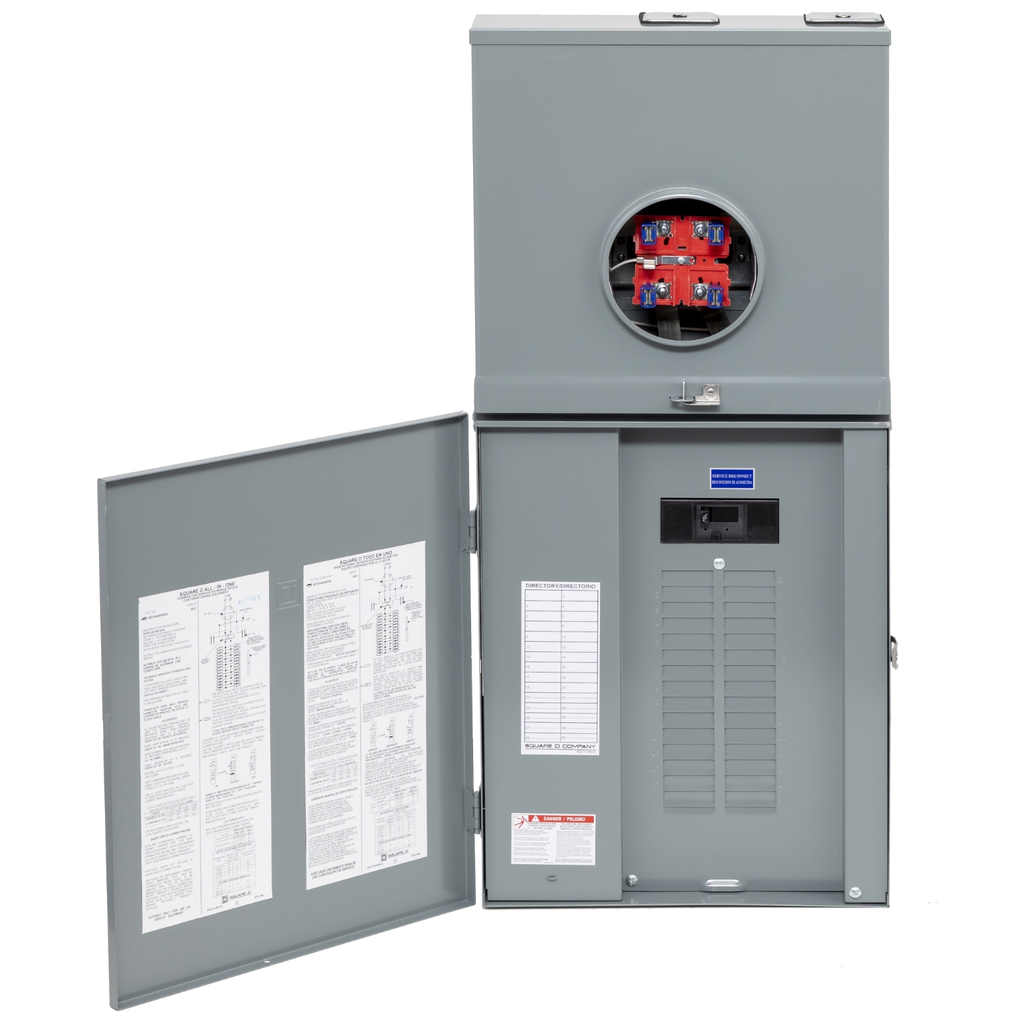

All in one, QO, CSED, ringless socket, 200A, surface mount, 30 spaces, 40 circuits, 22kA SCCR, no bypass

ALL-IN-ONE RINGLESS OH/UG 200A

SQDQC3040M200S QC3040M200S 785901953203
625.23 / EA
http://schema.org/OutOfStock
Mayer-DDS-All in one, QO, CSED, ringless socket, 200A, surface mount, 30 spaces, 40 circuits, 22kA SCCR, no bypass-2
Square D All in One devices are single phase power distribution panels ideal for residential use for when the local codes allow main breaker load centers to be mounted outside. These devices come with a meter socket that supports a standard utility meter, a main disconnect and a load center distribution with spaces up to 42 circuits. QO All in One products are single compact solution provides a time and space saving solution for contractors and installers as well as meet a wide range of applications in use today. This All in One is designed for QO range, has a 30 spaces, is rated at 200 A and has a short circuit current rating of 22 kA. This device has no bypass type, uses a ringless meter socket type and can be service feed either overhead or underground. This CSED uses lugs on both the line and service ground side of the device, has a wire range of 6 AWG to 350 kcmil on the line side and 8 to 2/0 AWG on the service ground side. It is UL rated.
QTY
  • Product Description
  • Features
  • Specifications
Square D All in One devices are single phase power distribution panels ideal for residential use for when the local codes allow main breaker load centers to be mounted outside. These devices come with a meter socket that supports a standard utility meter, a main disconnect and a load center distribution with spaces up to 42 circuits. QO All in One products are single compact solution provides a time and space saving solution for contractors and installers as well as meet a wide range of applications in use today. This All in One is designed for QO range, has a 30 spaces, is rated at 200 A and has a short circuit current rating of 22 kA. This device has no bypass type, uses a ringless meter socket type and can be service feed either overhead or underground. This CSED uses lugs on both the line and service ground side of the device, has a wire range of 6 AWG to 350 kcmil on the line side and 8 to 2/0 AWG on the service ground side. It is UL rated.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Branch Circuit Breaker Rated Current : 200 A
    • Bus Rated Current : 200.0 A
    • Service Disconnect Rated Current : 200 A
  • Important Information Attributes
    • AWG Gauge : AWG 6...350 kcmil (aluminium/copper) line side, AWG 8...AWG 2/0 (aluminium/copper) service ground
    • Electrical Connection : lugs, line side, lugs, service ground
    • Service Feed Location : OH, UG
    • Tightening Torque : main lugs 250 lb.in, AWG 6...350 kcmil, aluminium/copper, service ground 50 lb.in, AWG 3...AWG 2/0, aluminium/copper, service ground 45 lb.in, AWG 6...AWG 4, aluminium/copper, service ground 40 lb.in, AWG 8, aluminium/copper, branch lugs 50 lb.in, AWG 3...AWG 2/0, aluminium/copper, branch lugs 45 lb.in, AWG 6...AWG 4, aluminium/copper, branch lugs 40 lb.in, AWG 8, aluminium/copper, branch lugs 20 lb.in, AWG 14...AWG 10, aluminium/copper, branch lugs 20 lb.in, AWG 12...AWG 10, aluminium/copper, Cover 10 lb.in
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Persona Type Ids : LC
    • Persona Type Names : Contractor
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Meter enclosures
    • H And D Enrichment Class 4 : Combination service entrance device
    • Energy Efficiency Optimized : False
    • Meter Socket Type : ringless
    • Package Weight Lbs : 28.626 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : All-In-One
    • Range Of Product : QO
    • Returnability : Yes
    • Sustainable Packaging : No
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2509019EN
    • Product Kit Identifier : N
    • Product Manager : BRANDON MILLER
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2509019EN
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2509019EN
  • General Attributes
    • Product Or Component Type : All-In-One
    • Range Of Product : QO
  • Output Attributes
    • Bypass Type : no bypass
