All in one, Homeline, CSED, ringed socket, 300A, surface mount, 30 spaces, 40 circuits, 25kA SCCR, 320 manual bypass

ALL-IN-ONE RING TYPE UG 300A S

SQDSU3040D300FB SU3040D300FB 785901613176
6513.33 / EA
http://schema.org/OutOfStock
Mayer-DDS-All in one, Homeline, CSED, ringed socket, 300A, surface mount, 30 spaces, 40 circuits, 25kA SCCR, 320 manual bypass-2
  • Number of Spaces: 30
  • Warranty Length: 18 mth
Homeline ringless single phase All-In-One designed specifically for areas where local codes allow main breaker load centers for residential use to be mounted outdoors. They provide a meter socket that supports a standard utility meter, a main disconnect and load center distribution for 30 spaces and 40 circuits. This surface mounted device has UL listed rated current rating as 300A and short-circuit current 25kA. Factory installed main breaker, compact design, overhead and or underground feed, bypass type, wiring room with 6.5inch deep enclosures are ideal solution for easy installation. Knockouts above the top right-side wire gutter provides easy exit for load center wires. Factory installed blade guides on line and load meter jaws ensures proper alignment of meter blades with meter jaws to prevent meter socket damage. Forward tilted top endwall promotes water run-off to prevent pooling. All units built per ANSI C12.7, NEMA PB-1, UL standards 50, 67 and 414 and are listed in UL file number E-6294. Devices meet Federal Specifications W-P-115C for government housing. Devices meet the Electric Utility Service Equipment Requirements Committee (EUSERC) standards, meets EUSERC Requirements.
QTY
  • Product Description
  • Features
  • Specifications
Homeline ringless single phase All-In-One designed specifically for areas where local codes allow main breaker load centers for residential use to be mounted outdoors. They provide a meter socket that supports a standard utility meter, a main disconnect and load center distribution for 30 spaces and 40 circuits. This surface mounted device has UL listed rated current rating as 300A and short-circuit current 25kA. Factory installed main breaker, compact design, overhead and or underground feed, bypass type, wiring room with 6.5inch deep enclosures are ideal solution for easy installation. Knockouts above the top right-side wire gutter provides easy exit for load center wires. Factory installed blade guides on line and load meter jaws ensures proper alignment of meter blades with meter jaws to prevent meter socket damage. Forward tilted top endwall promotes water run-off to prevent pooling. All units built per ANSI C12.7, NEMA PB-1, UL standards 50, 67 and 414 and are listed in UL file number E-6294. Devices meet Federal Specifications W-P-115C for government housing. Devices meet the Electric Utility Service Equipment Requirements Committee (EUSERC) standards, meets EUSERC Requirements.

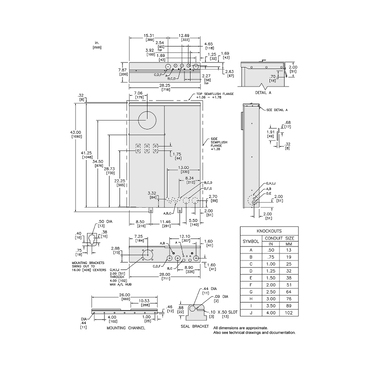

  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=3352&p_File_name=3352.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=3352&p_File_name=3352.dxf
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Electrical Connection
    • lugs, service ground
    • studs, line side
  • Accessories
    • FK400
    • A200L
    • A250L
    • A300L
  • Persona Type Names
    • End User
    • Contractor
    • Electrician
  • Persona Type Ids
    • EU
    • LC
    • SC
  • AWG Gauge
    • AWG 4...250 kcmil (aluminium) service ground
    • AWG 4...250 kcmil (copper) service ground
  • Complementary Attributes
    • Branch Circuit Breaker Rated Current : 200 A
    • Service Disconnect Rated Current : 200 A
  • Important Information Attributes
    • B2B Bullet Point 1 : Compatible with Homeline plug in mount breakers
    • B2B Bullet Point 2 : 4-jaw Class 320 manual-bypass ringed meter socket
    • B2B Bullet Point 3 : Suitable for use as service entrance equipment
    • B2B Bullet Point 4 : 30-spaces, 40 circuits
    • B2B Bullet Point 5 : Accommodates plug-on secondary surge arrester and features a plug-in deisgn for easy installation
    • B2B Bullet Point 6 : NEMA type 3R enclosure for outdoor use
    • B2B Bullet Point 7 : UL listed and ANSI certified
    • B2B Bullet Point 8 : California residents see Prop 65 WARNINGS
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-19
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 2534
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : A - SELECTED - PCE ONLY (Migration)
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • H And D Hub : SESA768490 - MILLER, Brandon
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Meter enclosures
    • H And D Enrichment Class 4 : Combination service entrance device
    • Energy Efficiency Optimized : False
    • Meter Socket Type : ringed
    • Number Of Spaces : 30
    • Number Of Tandem Circuit Breakers : 10
    • Package Weight Lbs : 49.895 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : All-In-One
    • Range Of Product : Homeline
    • Returnability : Yes
    • Service Feed Location : UG
    • Sustainable Packaging : No
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2509019EN
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : All-In-One
    • Range Of Product : Homeline
  • Output Attributes
    • Bypass Type : class 320 manual bypass
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=361871&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2509019EN
    • EU ROHS Directive : Compliant with Exemptions
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2509019EN
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
