All in one, Homeline, CSED, ringed socket, 125A, surface mount, 16 spaces, 24 circuits, 10kA SCCR, no bypass

ALL-IN-ONE RING TYPE OH/UG 125

SQDSC1624M125S SC1624M125S 785901308829
1518.00 / EACH
http://schema.org/OutOfStock
Mayer-DDS-All in one, Homeline, CSED, ringed socket, 125A, surface mount, 16 spaces, 24 circuits, 10kA SCCR, no bypass-2

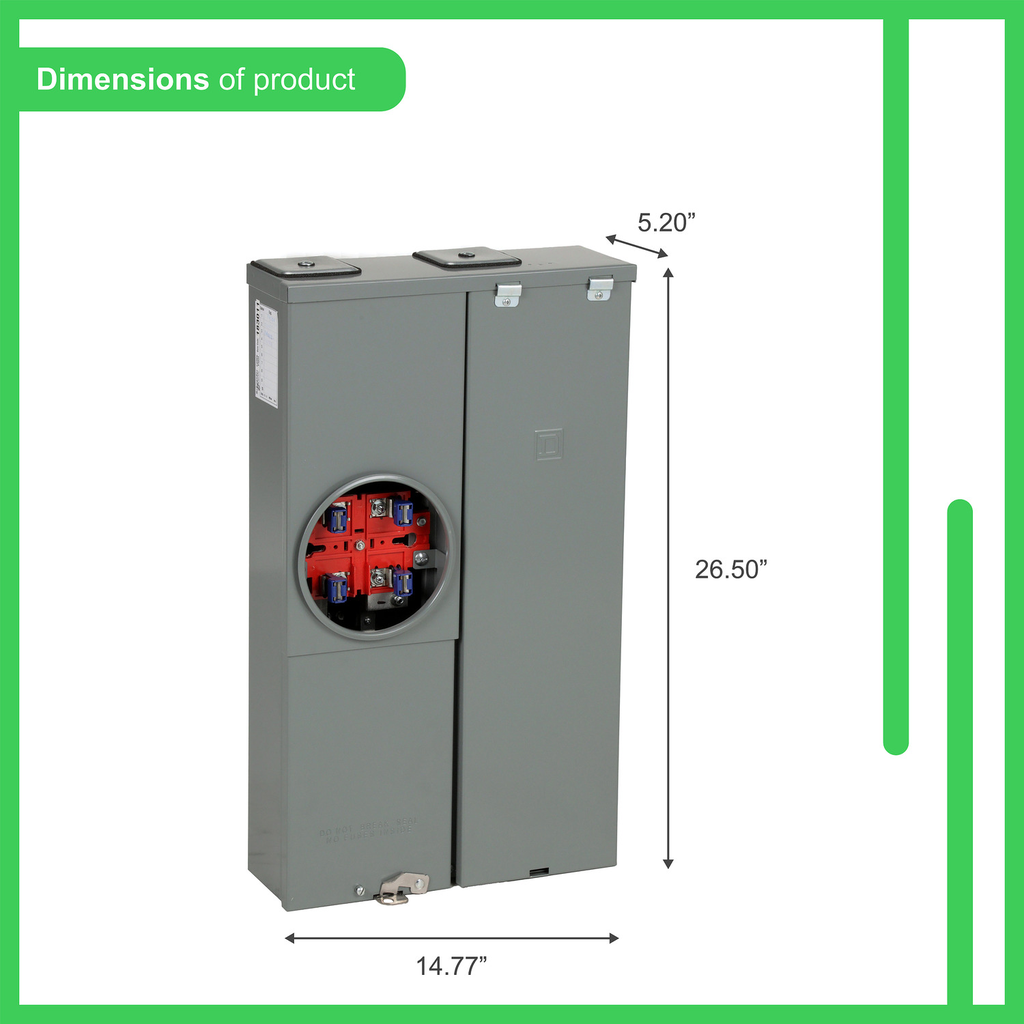

  • Depth: 5.20 in
  • Height: 26.50 in
  • Number of Circuits: 24
  • Number of Spaces: 16
  • Short Circuit Current Rating: 10 kA
  • Warranty Length: 18 mth
  • Width: 14.77 in
The Square D® Homeline® Load Centers Surface Mount CSED, SC1624M125S, provides metered service and a main circuit breaker and 16 full branch spaces up to 24 circuits using tandems. All-In-Ones are UL Listed, suitable only for use as service equipment. This device meets EUSERC standarts, Federal Specification W-P-115c as Type 1, Class 2.
QTY
  • Product Description
  • Features
  • Specifications
The Square D® Homeline® Load Centers Surface Mount CSED, SC1624M125S, provides metered service and a main circuit breaker and 16 full branch spaces up to 24 circuits using tandems. All-In-Ones are UL Listed, suitable only for use as service equipment. This device meets EUSERC standarts, Federal Specification W-P-115c as Type 1, Class 2.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Specifications
    • Country of Origin : Mexico
    • Width : 14.77 in
    • Height : 26.50 in
    • Range Of Product : Homeline
    • Product Or Component Type : All-In-One
    • Hub Type : A
    • Meter Socket Type : ringed
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1407020EN
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : N/A
    • Take-Back : No
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 377.5911542333
  • Complementary
    • Height : 26.50 in
    • Branch Circuit Breaker Rated Current : 125 A
    • Bypass Type : no bypass
    • Service Feed Location : OH || UG
    • Bus Rated Current : 125.0 A
    • Electrical Connection : lugs, line side || lugs, service ground
    • Number Of Circuits : 24
    • Number Of Spaces : 16
    • Short-Circuit Current : 10 kA
    • Number Of Tandem Circuit Breakers : 8
    • Service Disconnect Rated Current : 125 A
    • Line Rated Current : 125 A
    • Width : 14.77 in
    • Awg Gauge : AWG 6...AWG 2/0 (aluminium) line side || AWG 6...AWG 2/0 (copper) line side || AWG 6...AWG 2/0 (aluminium) service ground || AWG 6...AWG 2/0 (copper) service ground
    • Depth : 5.20 in
    • Device Composition : service disconnect (factory installed)
    • Device Mounting : surface
  • Contractual warranty
    • Warranty : 18 months
