All in one, Homeline, combination service entrance, ringed socket, 200A, surface, 20 spaces, 40 circuits, 10kA SSCR, OH, no bypass, value pack

ALL-IN-ONE RING T-SURFACE OH 2

SQDSO2040VP SO2040VP 785901396437
1301.33 / EACH
http://schema.org/OutOfStock
Mayer-DDS-All in one, Homeline, combination service entrance, ringed socket, 200A, surface, 20 spaces, 40 circuits, 10kA SSCR, OH, no bypass, value pack-1
  • Country of Origin: Mexico
  • Depth: 5.41 in
  • Number of Circuits: 40
  • Number of Spaces: 20
  • Warranty Length: 18 mth
Square D™ Homeline, SO2040VP, All-in-one Ring T-surface OH .Comes with Factory installed Service disconnect. Provided with no bass, UL listed. 18 months warranty is included.
QTY
  • Product Description
  • Features
  • Specifications
Square D™ Homeline, SO2040VP, All-in-one Ring T-surface OH .Comes with Factory installed Service disconnect. Provided with no bass, UL listed. 18 months warranty is included.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Branch Circuit Breaker Rated Current : 200 A
    • Bus Rated Current : 200.0 A
    • Line Rated Current : 200 A
    • Service Disconnect Rated Current : 200 A
  • Important Information Attributes
    • Persona Type Ids : EU, EUA, LC, SC
    • Persona Type Names : End User, Consumer, Contractor, Electrician
    • Awg Gauge : AWG 6...350 kcmil (aluminium/copper) line side, AWG 8...AWG 2/0 (aluminium/copper) service ground
    • Electrical Connection : lugs, line side, lugs, service ground
    • Provided Equipment : circuit-breaker 1 ) 2P 200 A 120/240 V AC main supply ready assembled, circuit-breaker 4 ) 1P 20 A 120 V AC, tandem circuit breaker 1 ) 1P 20 A 120 V AC, circuit-breaker 1 ) 2P 30 A 120 V AC, circuit-breaker 1 ) 2P 50 A 120 V AC
    • Carbon Footprint Of The Distribution Phase A4 : 13.225098560374514, 13 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 31 kg CO2 eq., 30.868210675559055
    • Carbon Footprint Of The Installation Phase A5 : 0.25831042054131215, 0.3 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 123 kg CO2 eq., 123.29984740325264
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 20 kg CO2 eq., 19.79338009122855
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Return Indicator : Y
    • Stocking Flag : N
    • Stock Policy : 2
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : yes
    • H And D Enrichment Function : ACCESSORIES
    • H And D Enrichment Class 3 : Meter Enclosures
    • H And D Enrichment Class 4 : Single-Phase individual meter enclosure
    • Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : Outside of Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 2534
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : No
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • Product Kit Identifier : N
    • Device Composition : service disconnect (factory installed)
    • Energy Efficiency Optimized : False
    • Hub Type : A
    • Meter Socket Type : ringed
    • Number Of Circuits : 40
    • Number Of Spaces : 20
    • Number Of Tandem Circuit Breakers : 20
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : All-In-One
    • Range Of Product : Homeline
    • Returnability : Yes
    • Service Feed Location : OH
    • Short Circuit Current : 22 kA
    • Software Version : v6.2.5-6
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 187 kg CO2 eq.
    • Warranty In Months : 18
    • Pep Code : ENVPEP2509019EN
    • Database Version : 2024-01
    • Pep Verification Date : 2025-09-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional-unit Description : When a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functionsThe installation must be protected against overloads and short circuits in accordance with the circuit’s rated voltage (Ue), rated current (In), number of poles (Np), rated breaking capacity (Icn), and tripping curve (Cd). The protective device should be capable of establishing, carrying, and interrupting the rated current at the rated voltage. It must be suitable for wall-mounted or enclosure/cabinet installations in household or commercial environments, depending on the intended use. Additionally, the device should be designed to maintain reliable performance throughout a reference service life of 20 years.
    • Functional-unit Quantity : 1
    • Functional-unit Unit : unit
    • Reference Lifetime, In Y : 20
    • Energy Model - Manufacturing [A1-a3] : Electricity Mix; Low voltage; 2020; Mexico, MX
    • Energy Model - Installation [A5] : No energy used
    • Energy Model - Use [B6] : Electricity Mix; Low voltage; 2020; United States, US
    • Energy Model - End Of Life [C1-c4] : Global, European and French datasets are used.
    • Recyclability Potential, In % : 89
    • Offer Owner Code : 190788
    • Pn : 1

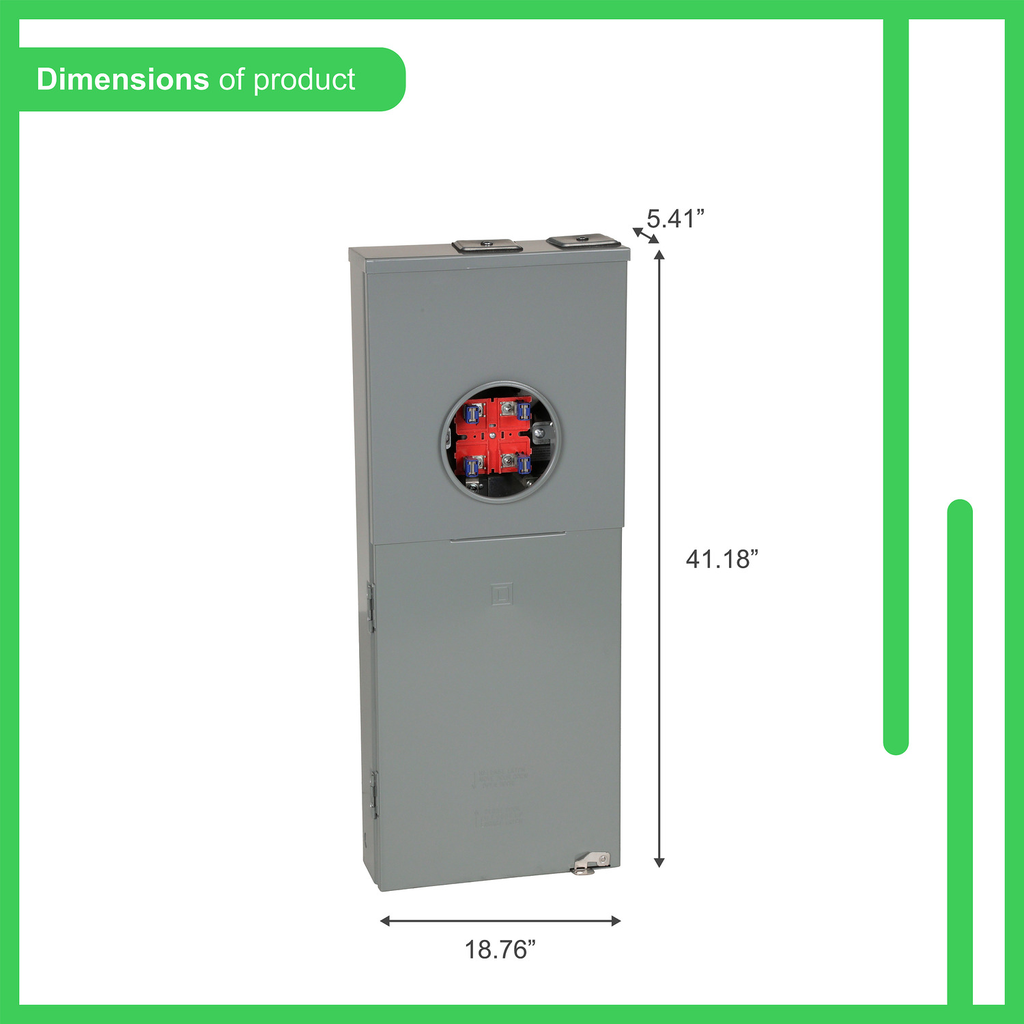

    • Height Nominal : 41.18 in
    • Width Nominal : 18.76 in
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • Mercury Free : Yes
    • Carbon Footprint : 187.44484715095606
    • Environmental Disclosure : ENVPEP2509019EN
    • Eu Rohs Directive : Compliant By Exemption
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2509019EN
    • Pep Verification Date : 2025-09-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Provided Equipment : circuit-breaker 1 ) 2P 200 A 120/240 V AC main supply ready assembled, circuit-breaker 4 ) 1P 20 A 120 V AC, tandem circuit breaker 1 ) 1P 20 A 120 V AC, circuit-breaker 1 ) 2P 30 A 120 V AC, circuit-breaker 1 ) 2P 50 A 120 V AC
    • Product Or Component Type : All-In-One
    • Range Of Product : Homeline
  • Output Attributes
    • Bypass Type : no bypass
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
    • Depth : 5.41 in
