All in one, Homeline, combination service entrance, ringed socket, 200A, semi flush, 20 spaces, 40 circuits, 10kA SSCR, OH, UG, no bypass, solar ready

ALL-IN-ONE RING OH/UG SEMIFLUS

SQDSC2040M200PF SC2040M200PF 785901122265
263.19 / EA
http://schema.org/OutOfStock
Mayer-DDS-All in one, Homeline, combination service entrance, ringed socket, 200A, semi flush, 20 spaces, 40 circuits, 10kA SSCR, OH, UG, no bypass, solar ready-2

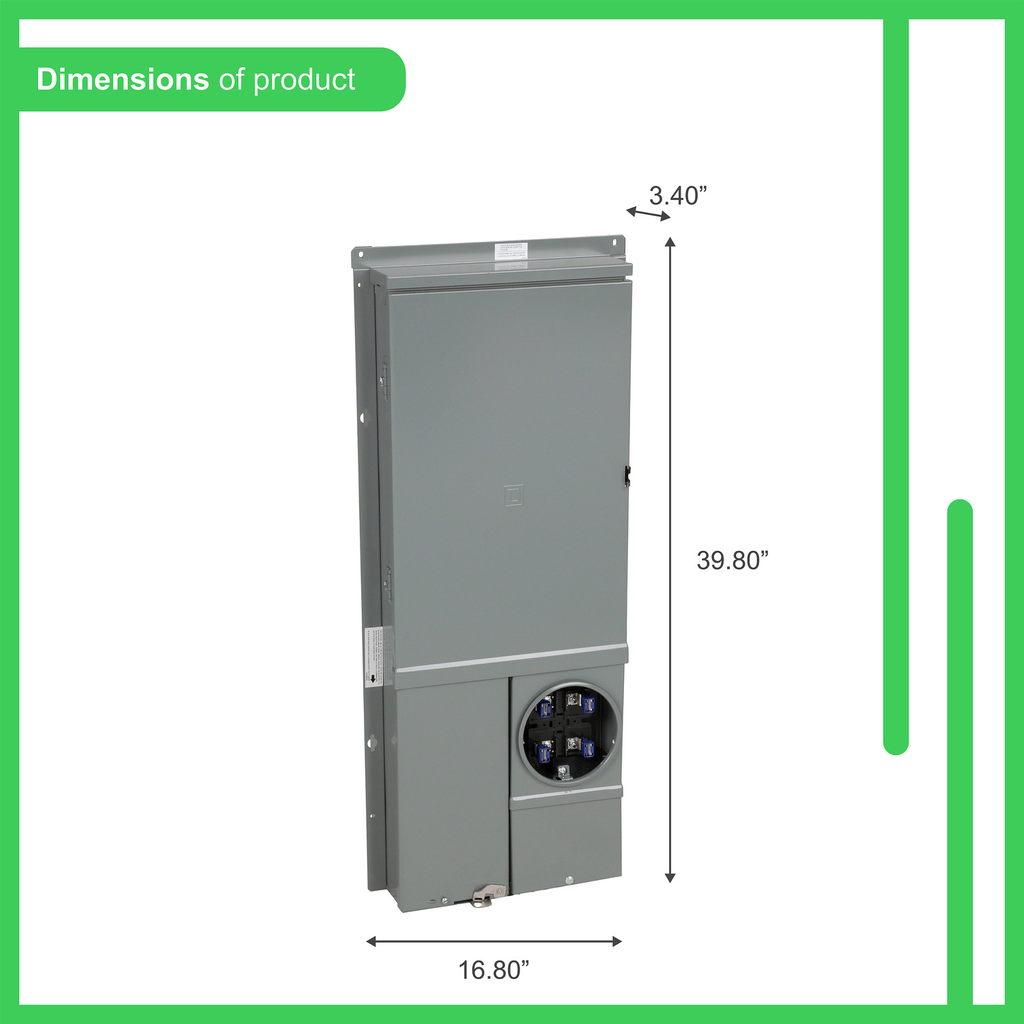

  • Country of Origin: Mexico
  • Depth: 3.40 in
  • Height: 39.80 in
  • Number of Circuits: 40
  • Number of Spaces: 20
  • Width: 16.80 in
The Square D® Homeline® Load Centers and Homeline Solar Ready PoN CSEDs, SC2040M200PF, provides metered service and a main circuit breaker and 16 full branch spaces up to 24 circuits using tandems. All-In-Ones are UL Listed, suitable only for use as serv
QTY
  • Product Description
  • Features
  • Specifications
The Square D® Homeline® Load Centers and Homeline Solar Ready PoN CSEDs, SC2040M200PF, provides metered service and a main circuit breaker and 16 full branch spaces up to 24 circuits using tandems. All-In-Ones are UL Listed, suitable only for use as serv
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0.0601487615
    • 0.1 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 2 kg CO2 eq.
    • 2.266777151
  • Electrical Connection
    • lugs, line side
    • lugs, service ground
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 101 kg CO2 eq.
    • 100.5556274479
  • Accessories
    • LK100AN
    • SR69064A
  • Persona Type Names
    • End User
    • Contractor
    • Electrician
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 317 kg CO2 eq.
    • 316.61
  • Persona Type Ids
    • EU
    • LC
    • SC
  • Service Feed Location
    • UG
    • OH outdoor
  • Carbon Footprint Of The Distribution Phase A4
    • 3.2070708542
    • 3 kg CO2 eq.
  • Tightening Torque
    • main lugs 250 lb.in, AWG 4...250 kcmil, aluminium/copper
    • service ground 50 lb.in, A
  • AWG Gauge
    • AWG 8...AWG 2/0 (aluminium/copper) service ground
    • AWG 4...250 kcmil (aluminium/copper) line side
    • AWG 4...25
  • Complementary Attributes
    • Branch Circuit Breaker Rated Current : 200 A
    • Bus Rated Current : 225.0 A
    • Line Rated Current : 200 A
    • Service Disconnect Rated Current : 200 A
  • Important Information Attributes
    • B2B Bullet Point 1 : Homeline™ All in ones CSEDs support standard utility meters and a main disconnect breakers
    • B2B Bullet Point 2 : This single compact solution provides a time and space saving solution for contractors and installers
    • B2B Bullet Point 3 : Suitable for use as service entrance equipment
    • B2B Bullet Point 4 : CSED allows for the meter socket to integrate with the load center into one compact design
    • B2B Bullet Point 5 : Product conforms to the electrical characteristics per UL and ANSL standards
    • Local Data Status : Publishable
    • Local Publishable Date : 7/28/2025
    • Manufacturing Carbon Footprint : 100.5556274
    • Distribution Carbon Footprint : 3.207070854
    • Installation Carbon Footprint : 0.060148762
    • Use Carbon Footprint : 316.61
    • End Of Life Carbon Footprint : 2.266777151
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : Yes
    • ROHS Eur Status : Compliant with Exemptions
    • ROHS Eur Conformity Date : 2534
    • ROHS Eur Full Compliance Status : Compliant with Exemptions
    • ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Meter enclosures
    • H And D Enrichment Class 4 : Combination service entrance device
    • Device Composition : service disconnect (factory installed)
    • Energy Efficiency Optimized : FALSE
    • Hub Type : A-L
    • Meter Socket Type : ringed
    • Number Of Circuits : 40
    • Number Of Spaces : 20
    • Number Of Tandem Circuit Breakers : 20
    • Package Weight Lbs : 24.857 kg
    • Phase : 1 phase
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : All-In-One
    • Range Of Product : Homeline
    • Returnability : Yes
    • Short Circuit Current : 22 kA
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 423 kg CO2 eq.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 422.6996242
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Phase : 1 phase
    • Product Or Component Type : All-In-One
    • Range Of Product : Homeline
  • Output Attributes
    • Bypass Type : no bypass
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=423254190&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0%
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Carbon Footprint : 422.6996242
    • Environmental Disclosure : ENVPEP2509019
    • Eu Rohs Directive : Compliant with Exemptions
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Product Compatibility : solar ready
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Specifications
    • Country of Origin : Mexico
    • Height : 39.80 in
    • Width : 16.80 in
    • Depth : 3.40 in
