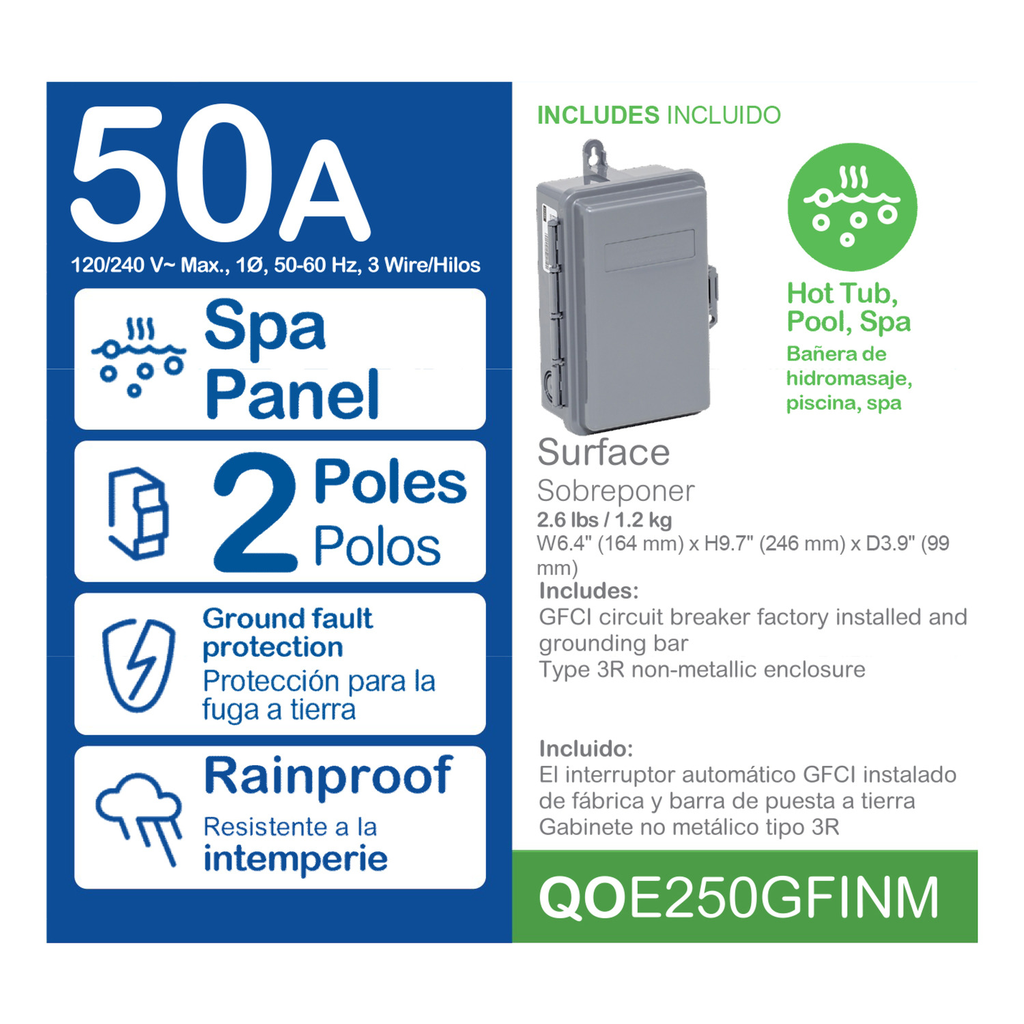

Enclosed Devices are designed for reliability and safety. Indoor NEMA type 1 and outdoor NEMA type 3R options are available. Enclosed Devices provide an easy installation for residential and commercial air conditioning systems and other single phase applications. Metallic and non-metallic enclosure options are available as well. This enclosed circuit breaker is 2 pole and 50A. It is rated at NEMA 3R and has ground fault protection. The enclosure provided is nonmetallic. It is used in spa systems.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Line Rated Current : 50 A
• Important Information Attributes
• Persona Type Ids : EU, LC, SC
• Persona Type Names : End User, Contractor, Electrician
• Carbon Footprint Of The Distribution Phase [A4] : 0.3681208929, 0.4 kg CO2 eq.
• Carbon Footprint Of The End-of-life Phase [C1 To C4] : 0.1 kg CO2 eq., 0.1141791334
• Carbon Footprint Of The Installation Phase [A5] : 0.0008592805, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 8 kg CO2 eq., 7.8584161765
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 0.1 kg CO2 eq., 0.087341
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-18
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : Outside of Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 2532
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : No
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : RESIDENTIAL
• Market Segmentation : Residential
• Product Kit Identifier : N
• Box Number : 1NM
• Device Composition : grounding bar (factory installed)
• Enclosure Material : non-metallic
• Enclosure Type : enclosure
• Energy Efficiency Optimized : False
• Load Center Type : main breaker
• Number Of Spaces : 2
• Phase : 1 phase
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : enclosed circuit breaker
• Range Of Product : QO
• Returnability : Yes
• Software Version : EIME v5.9.4
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 8 kg CO2 eq.
• Wiring Configuration : 3-wire
• Pep Code : ENVPEP2212001EN
• Database Version : 2022-01
• Pep Verification Date : 2023-08-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent external review
• Data Source : extrapolated product
• Functional-unit Description : Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 858mm×361mm×95mm, comply with UL 67 and CSA22.2 with an available offer:& 10•Suitable for use on 120/240 Vac and 48 Vdc systems& 10•Rated 30 to 400 amps 2 to 60 circuits& 10•3/4" circuit breaker width& 10•Single and three phase
• Functional-unit Quantity : 1
• Functional-unit Unit : unit
• Reference Lifetime, In Y : 20
• Energy Model - Manufacturing [A1-a3] : Energy model used: Lexington
• Energy Model - Installation [A5] : Electricity mix; AC; consumption mix, at consumer; 120V; US
• Energy Model - Use [B6] : Electricity mix; AC; consumption mix, at consumer; 120V; US
• Energy Model - End Of Life [C1-c4] : Electricity mix; AC; consumption mix, at consumer; 120V; US
• Recyclability Potential, In % : 88
• Height Nominal : 233 mm
• Width Nominal : 166 mm
• Certificate Agency : UL Listed
• Nbr. Of Units In Pkg. : 1
• Package Weight(Lbs) : 1.089 kg
• Take-back : No
• Warranty (In Months) : 18
• Air Pollution (M3) Operational Energy Use [B6] : 7.4172
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] : 1.0634
• Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] : 1.1052
• Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] : 1.1758
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] : 1.1052
• Water Pollution (M3) Operational Energy Use [B6] : 4.3059
• Customs Code : 8536200040
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• Mercury Free : Yes
• Carbon Footprint : 8.4289164832
• Environmental Disclosure : ENVPEP2212001EN
• Eu Rohs Directive : Compliant By Exemption
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2212001EN
• Pep Verification Date : 2023-08-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Phase : 1 phase
• Product Or Component Type : enclosed circuit breaker
• Range Of Product : QO
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
• Depth : 99 mm
