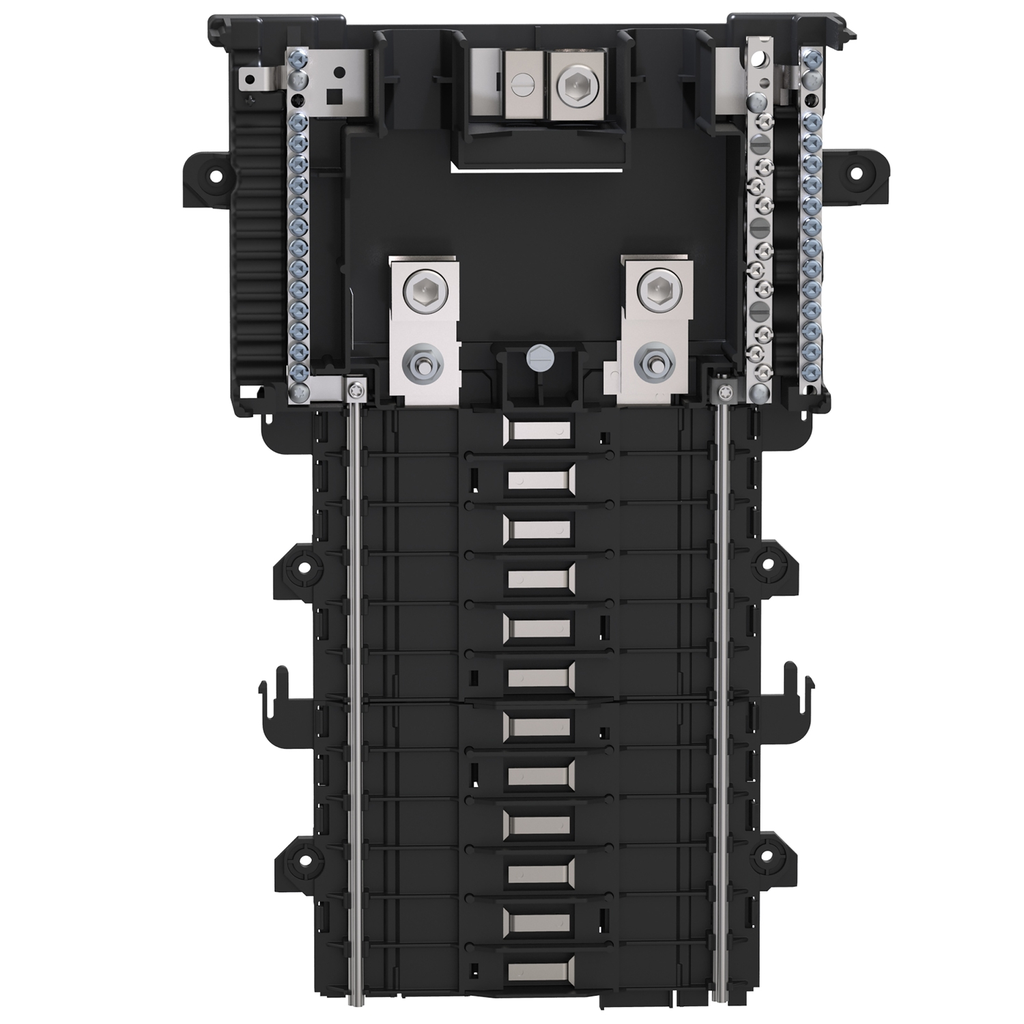

QO Load Centers offer premium features like QO breakers, ground arc fault interrupters and surge arresters. QO load centers are designed for residential and industrial use to protect electrical systems, equipment and people. Systems are single or three phase and have indoor and outdoor versions. QO Load Centers enable the use of a full complement of accessories. Indoor enclosures are designed to be rotated 180 degrees to accommodate top or bottom service entrance feed. This QO OEM plug on mounting base is for 200A 120/240 VAC 1 phase 3 wire systems. This QO OEM mounting base has a 10 kA breaking capacity. This product is for 24 spaces. This mounting base will accept only QO plug on circuit breakers. This system is plug on neutral and has a neutral bus bar. The QON mounting base is UL component recognized.

• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=MFR7032502&p_File_name=MFR7032502.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MFR7032502&p_File_name=MFR7032502.dxf
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Phase
• 1 phase 3 wires
• Persona Type Names
• End User
• Original Equipment Manufacturer
• Persona Type Ids
• EU
• OM
• AWG Gauge
• AWG 4...250 kcmil aluminium/copper
• UE Rated Operational Voltage
• 120/240 V AC

• Important Information Attributes
• B2B Bullet Point 1 : Mounting base for QO Load centers
• B2B Bullet Point 2 : 1 phase system with 24 spaces
• B2B Bullet Point 3 : 200A main lugs with plug on neutral
• B2B Bullet Point 4 : Neutral busbar
• B2B Bullet Point 5 : Designed to satisfy individual requirements
• B2B Bullet Point 6 : Compatible with Square D QO Plug-on Neutral Whole Home SPD
• B2B Bullet Point 7 : Schneider Electric empowers all to make the most of energy and resources, bridging progress and sustainability for all
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-13
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : Outside of Europe
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant
• ROHS EUR Conformity Date : 2531
• ROHS EUR Full Compliance Status : Compliant
• ROHS EUR Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : COMMERCIAL
• Market Segmentation : Commercial
• H And D Domain : Safety
• H And D Subrange : COM
• H And D Enrichment Assignment : no
• H And D Enrichment Function : ENCLOSURES
• H And D Enrichment Class 3 : Load centers (equipped)
• H And D Enrichment Class 4 : Load center OEM interiors
• Energy Efficiency Optimized : False
• Load Center Type : PoN Convertible Mains (lugs)
• Number Of Spaces : 24
• Package Weight Lbs : 1.64 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : mounting base
• Range Of Product : QO
• Returnability : Yes
• Sustainable Packaging : No
• Relationship Type : Compatible relationship
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=498982910&lang=en-us
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• EU ROHS Directive : Compliant
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• General Attributes
• Product Or Component Type : mounting base
• Range Of Product : QO
• Specifications
• Country of Origin : United States
