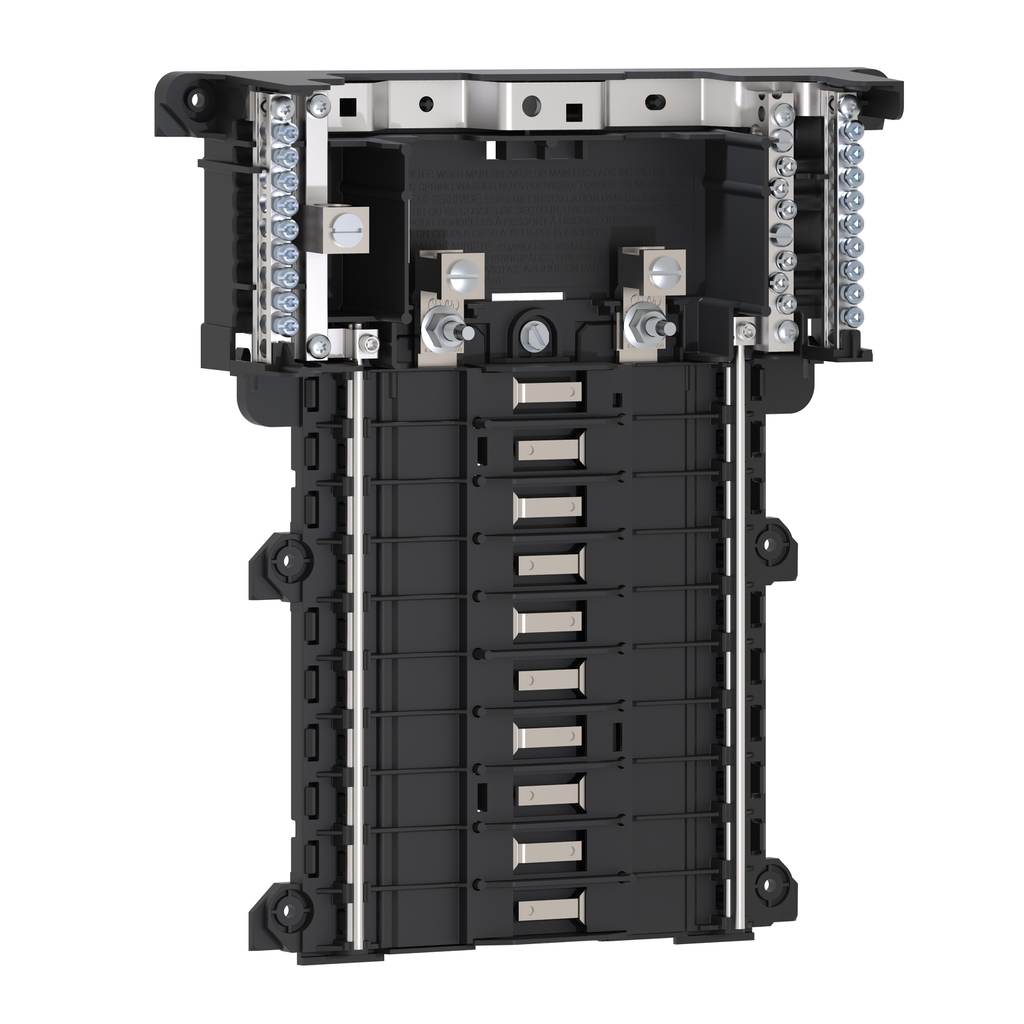

QON OEM mounting bases are for the mounting of plug on QO, QO GFI, QO AFI and QO EPD circuit breakers. These OEM mounting bases are available in single and three phase versions. This QON OEM mounting base is for a main lugs of 125 A at 240 VAC single phase. This mounting base has 20 spaces for 1 pole. The main breaker will accept 4 AWG to 2/0 AWG copper or aluminum wire. The QON mounting base is UL component recognized. The QON mounting base is UL component recognized.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Line Rated Current : 125 A
• Ue Rated Operational Voltage : 120/240 V AC
• Important Information Attributes
• Persona Type Ids : EU, OM
• Persona Type Names : End User, Original Equipment Manufacturer
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-18
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• H And D Domain : Safety
• H And D Subrange : COM
• H And D Enrichment Assignment : no
• H And D Enrichment Function : ENCLOSURES
• H And D Enrichment Class 3 : Load centers (equipped)
• H And D Enrichment Class 4 : Load center OEM interiors
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : Outside of Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1942
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : No
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : COMMERCIAL
• Market Segmentation : Commercial
• Product Kit Identifier : N
• Awg Gauge : AWG 6...AWG 2/0 aluminium/copper
• Energy Efficiency Optimized : False
• Load Center Type : PoN Convertible Mains (lugs)
• Number Of Spaces : 20
• Phase : 1 phase 3 wires
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : mounting base
• Range Of Product : QO
• Returnability : Yes
• Sustainable Packaging : No
• Warranty In Months : 18
• Pep Code : ENVPEP2212001EN
• Offer Owner Code : 190788
• Pn : 1
• Height Nominal : 11.50 in
• Width Nominal : 10.62 in
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
• Ambient Air Temperature For Operation : -5 °C, -5 °C, 40 °C
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2212001EN
• Eu Rohs Directive : Compliant By Exemption
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2212001EN
• General Attributes
• Phase : 1 phase 3 wires
• Product Or Component Type : mounting base
• Range Of Product : QO
• Specifications
• Country of Origin : United States
• Depth : 2.38 in
