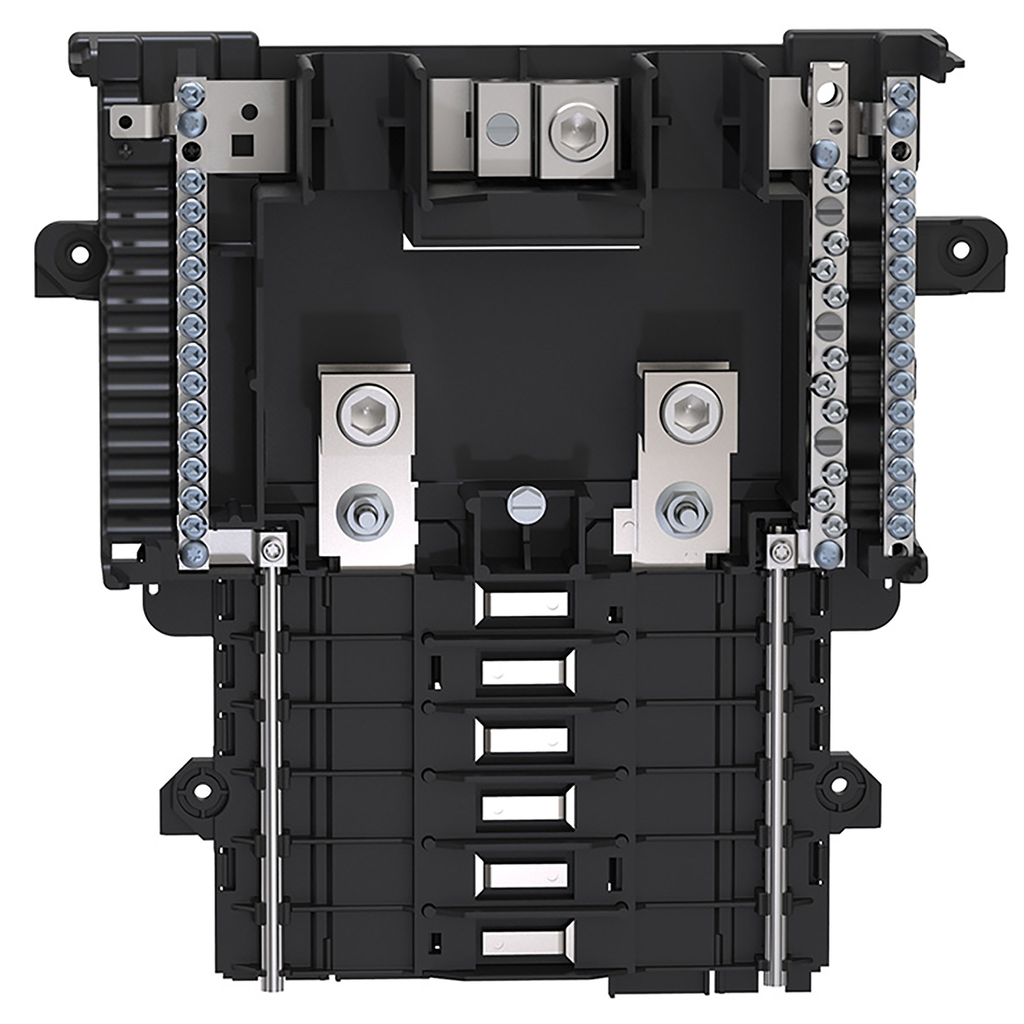

QO Load Centers offer premium features like QO breakers, ground arc fault interrupters and surge arresters. QO load centers are designed for residential and industrial use to protect electrical systems, equipment and people. Systems are single or three phase and have indoor and outdoor versions. QO Load Centers enable the use of a full complement of accessories. Indoor enclosures are designed to be rotated 180 degrees to accommodate top or bottom service entrance feed. This QO OEM plug on mounting base is for 200A 120/240 VAC 1 phase 3 wire systems. This QO OEM mounting base has a 10 kA breaking capacity. This product is for 12 spaces. This mounting base will accept only QO plug on circuit breakers. This system is plug on neutral and has a neutral bus bar. The QON mounting base is UL component recognized.

• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=MFR7032302&p_File_name=MFR7032302.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MFR7032302&p_File_name=MFR7032302.dxf
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Phase
• 1 phase 3 wires
• AWG Gauge
• AWG 4...250 kcmil aluminium/copper
• UE Rated Operational Voltage
• 120/240 V AC

• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=498982903&lang=en-us
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• EU ROHS Directive : Compliant
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Important Information Attributes
• B2B Bullet Point 1 : Provides superior performance and durability
• B2B Bullet Point 2 : Straight in wiring saves wire, labor, and time
• B2B Bullet Point 3 : Compatible with any Square D™ QO Circuit Breaker
• B2B Bullet Point 4 : The fully distributed neutral bar allows for QO™ plug-on neutral circuit breakers in any space
• B2B Bullet Point 5 : Complies with UL 67 listed, CSA, and IEC standards
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-13
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : Outside of Europe
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant
• ROHS EUR Conformity Date : 2531
• ROHS EUR Full Compliance Status : Compliant
• ROHS EUR Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Persona Type Ids : OM
• Persona Type Names : Original Equipment Manufacturer
• Tier Id : 3
• Tier : 3
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : COMMERCIAL
• Market Segmentation : Commercial
• H And D Domain : Safety
• H And D Subrange : COM
• H And D Enrichment Assignment : no
• H And D Enrichment Function : ENCLOSURES
• H And D Enrichment Class 3 : Load centers (equipped)
• H And D Enrichment Class 4 : Load center OEM interiors
• Energy Efficiency Optimized : False
• Load Center Type : PoN Convertible Mains (lugs)
• Number Of Spaces : 12
• Package Weight Lbs : 55.792 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : mounting base
• Range Of Product : QO
• Returnability : Yes
• Sustainable Packaging : No
• Relationship Type : Compatible relationship
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : mounting base
• Range Of Product : QO
• Specifications
• Country of Origin : United States
