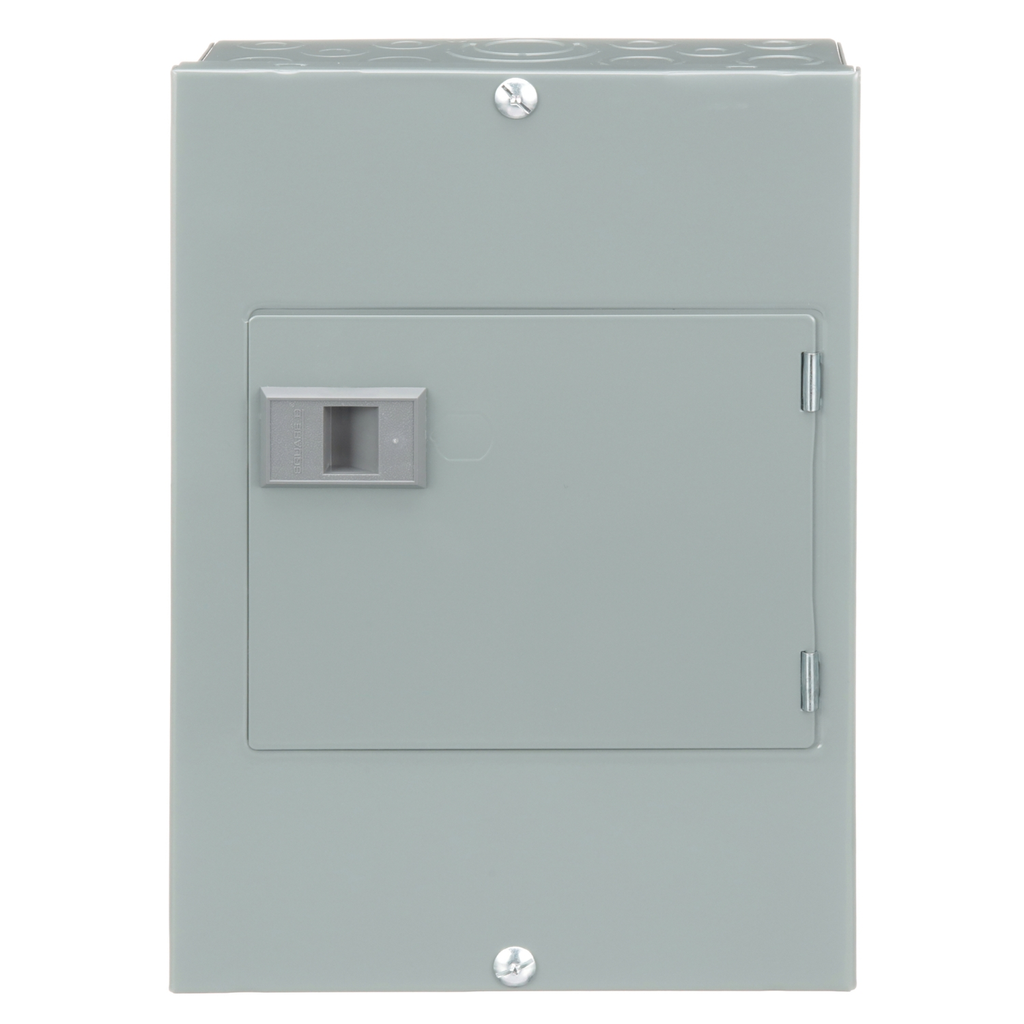

Load center, QO, 1 phase, 8 spaces, 16 circuits, 100A fixed main lugs, NEMA1, door surface cover, Cu bus

QO LDCTR MLO 240V 100A 1PH 8 S

SQDQO816L100DSCU QO816L100DSCU 785901626398
142.48 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Load center, QO, 1 phase, 8 spaces, 16 circuits, 100A fixed main lugs, NEMA1, door surface cover, Cu bus-1
  • Country of Origin: Mexico
  • Cover Type: Surface Cover With Door
  • Depth: 95 mm
  • Enclosure Material: Welded Sheet Steel
  • Number of Circuits: 16
  • Number of Spaces: 8, 8
  • Surface Finish: Baked Enamel Gray
  • Warranty Length: 18 mth
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 8 spaces and 16 circuits. This system provides 100A fixed main lugs in a NEMA 1 enclosure. It also includes a door surface cover, copper bus, and is UL rated.
QTY
  • Product Description
  • Features
  • Specifications
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 8 spaces and 16 circuits. This system provides 100A fixed main lugs in a NEMA 1 enclosure. It also includes a door surface cover, copper bus, and is UL rated.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Rated Current : 100 A
    • Line Rated Current : 100 A
    • Ue Rated Operational Voltage : 120/240 V AC
  • Important Information Attributes
    • Persona Type Ids : EU, LC, OM
    • Persona Type Names : End User, Contractor, Original Equipment Manufacturer
    • Electrical Connection : lugs
    • Load Center Type : Fixed Mains (lugs)
    • Material : tin plated copper: busbar
    • Number Of Spaces : 8, 8
    • Product Or Component Type : Load Center
    • Tightening Torque : main lugs 50 lb.in, AWG 8, aluminium/copper, main lugs 50 lb.in, AWG 6...AWG 1/0, aluminium/copper
    • Carbon Footprint Of The Distribution Phase A4 : 1.3477626943, 1 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.2 kg CO2 eq., 0.2439034192
    • Carbon Footprint Of The Installation Phase A5 : 0.0880656917, 0.1 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 17 kg CO2 eq., 17.2659733624
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0.1 kg CO2 eq., 0.0873405405
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Return Indicator : Y
    • Stocking Flag : N
    • Stock Policy : 2
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Load centers (equipped)
    • H And D Enrichment Class 4 : single-phase main lug only indoor load center
    • Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 2532
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : No
    • China Rohs Label : 1
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 3
    • Tier : 3
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • Product Kit Identifier : N
    • Awg Gauge : AWG 8...AWG 1 aluminium/copper
    • Box Number : 4
    • Cover Type : surface cover with door
    • Device Composition : grounding bar (ordered separately)
    • Enclosure Material : welded sheet steel
    • Energy Efficiency Optimized : False
    • Number Of Circuits : 16
    • Number Of Tandem Circuit Breakers : 8
    • Phase : 1 phase 3 wires
    • Product Availability : Stock - Normally stocked in distribution facility
    • Range Of Product : QO
    • Returnability : Yes
    • Short Circuit Current : 10 kA
    • Software Version : EIME v5.9.4
    • Surface Finish : baked enamel Gray
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 19 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Warranty In Months : 18
    • Pep Code : ENVPEP2212002EN
    • Database Version : 2022-01
    • Pep Verification Date : 2023-08-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Psr Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent external review
    • Data Source : extrapolated product
    • Functional-unit Description : Protect persons during 20 years against direct contact with live parts and allow grouping monitoring. control and protection devices in a single enclosure or a cabinet having the following dimensions 952.5mm x1219.2mm x 101.6mm. comply with UL 67 and CSA22.2 with an available offer:& 10-suitable for use on 120/240 Vac and 48 Vdc systems& 10-rated 30–125 A& 10-supplies from two to sixteen circuits& 10-surface or flush-mounted cover& 10-Types 1 & 3R& 10-main lugs only
    • Functional-unit Quantity : 1
    • Functional-unit Unit : unit
    • Reference Lifetime, In Y : 20
    • Energy Model - Manufacturing [A1-a3] : Energy model used: Tlaxcala Mexico
    • Energy Model - Installation [A5] : Electricity mix; AC; consumption mix. at consumer; 120V; US
    • Energy Model - Use [B6] : Electricity mix; AC; consumption mix. at consumer; 120V; US
    • Energy Model - End Of Life [C1-c4] : Electricity mix; AC; consumption mix. at consumer; 120V; US
    • Offer Owner Code : 190788
    • Pn : 1
    • Height Nominal : 319 mm
    • Width Nominal : 222 mm
    • Certificate Agency : UL Listed
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Ambient Air Temperature For Operation : -5 °C, -5 °C, 40 °C
    • Nema Degree Of Protection : NEMA 1 indoor enclosure
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 19.0330457082
    • Environmental Disclosure : ENVPEP2212002EN
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2212002EN
    • Pep Verification Date : 2023-08-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Psr Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Product Or Component Type : Load Center
    • Phase : 1 phase 3 wires
    • Range Of Product : QO
  • ETIM
    • ETIM 8 : EC000214
    • ETIM 9 : EC000214
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
    • Depth : 95 mm
