QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems,

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.0053758291
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.7 kg CO2 eq.
• 0.7143273057
• Ue Rated Operational Voltage
• 120/240 V AC
• Phase
• 1 phase 3 wires
• Material
• tin plated copper: busbar
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 49 kg CO2 eq.
• 49.1638102941
• Nema Degree Of Protection
• NEMA 1 indoor enclosure
• Persona Type Names
• End User
• Consumer
• Contractor
• Original Equipment Manufacturer
• Electrician
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 0.1 kg CO2 eq.
• 0.087341
• Persona Type Ids
• EU
• EUA
• LC
• OM
• SC
• Carbon Footprint Of The Distribution Phase A4
• 2.3030373214
• 2 kg CO2 eq.
• Tightening Torque
• main lugs 50 lb.in, AWG 6...AWG 2/0, aluminium/copper
• Cover 20 lb.in
• AWG Gauge
• AWG 6...AWG 2/0 aluminium/copper
• Ambient Air Temperature For Operation
• -5 °C
• 40 °C
• Surface Finish
• baked enamel Gray

• Conformance Attributes
• Product Certifications : UL listed file E-6294
• Complementary Attributes
• Line Rated Current : 125 A
• Important Information Attributes
• Country Id : US
• B2B Bullet Point 1 : Provides superior performance and durability
• B2B Bullet Point 2 : Straight in wiring saves wire, labor, and time
• B2B Bullet Point 3 : Faster installation using PoN breakers that connect directly
• B2B Bullet Point 4 : 50% more terminations for clutter-free wiring
• B2B Bullet Point 5 : Complies with UL 67 listed, CSA, and IEC standards
• Local Data Status : Publishable
• Local Publishable Date : 2025-05-31
• Html Descr : Load center, QO, 1 phase, 30 spaces, 30 circuits, 125A convertible main lugs, PoN, NEMA1, grnd bar, UL
• Manufacturer : Schneider Electric
• Manufacturing Carbon Footprint : 49.1638102941
• Distribution Carbon Footprint : 2.3030373214
• Installation Carbon Footprint : 0.0053758291
• Use Carbon Footprint : 0.087341
• End Of Life Carbon Footprint : 0.7143273057
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 2531
• ROHS Eur Full Compliance Status : Compliant
• ROHS Eur Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : RESIDENTIAL
• Market Segmentation : Residential
• H And D Domain : Safety
• H And D Subrange : RESI
• H And D Enrichment Assignment : no
• H And D Enrichment Function : ENCLOSURES
• H And D Enrichment Class 3 : Load centers (equipped)
• H And D Enrichment Class 4 : single-phase main lug only indoor load center
• Box Number : 7
• Cover Type : order separately
• Device Composition : grounding bar included (not installed)
• Electrical Connection : lugs
• Enclosure Material : welded sheet steel
• Energy Efficiency Optimized : False
• Load Center Type : PoN Convertible Mains (lugs)
• Number Of Circuits : 34
• Number Of Spaces : 30
• Number Of Tandem Circuit Breakers : 4
• Package Weight Lbs : 7.194 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : Load Center
• Range Of Product : QO
• Returnability : Yes
• Short Circuit Current : 65 kA
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 52 kg CO2 eq.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 52.2738917504
• Relationshiptype : Compatible relationship
• Accessories : PK23GTAL
• General Attributes
• Product Or Component Type : Load Center
• Range Of Product : QO
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=455794491&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 52.2738917504
• Environmental Disclosure : ENVPEP2212003
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Specifications
• Country of Origin : United States

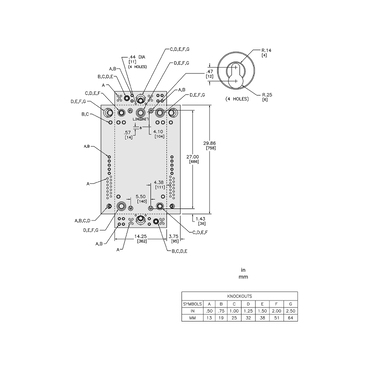

• Height : 29.84 in
• Width : 14.25 in
• Depth : 3.74 in
