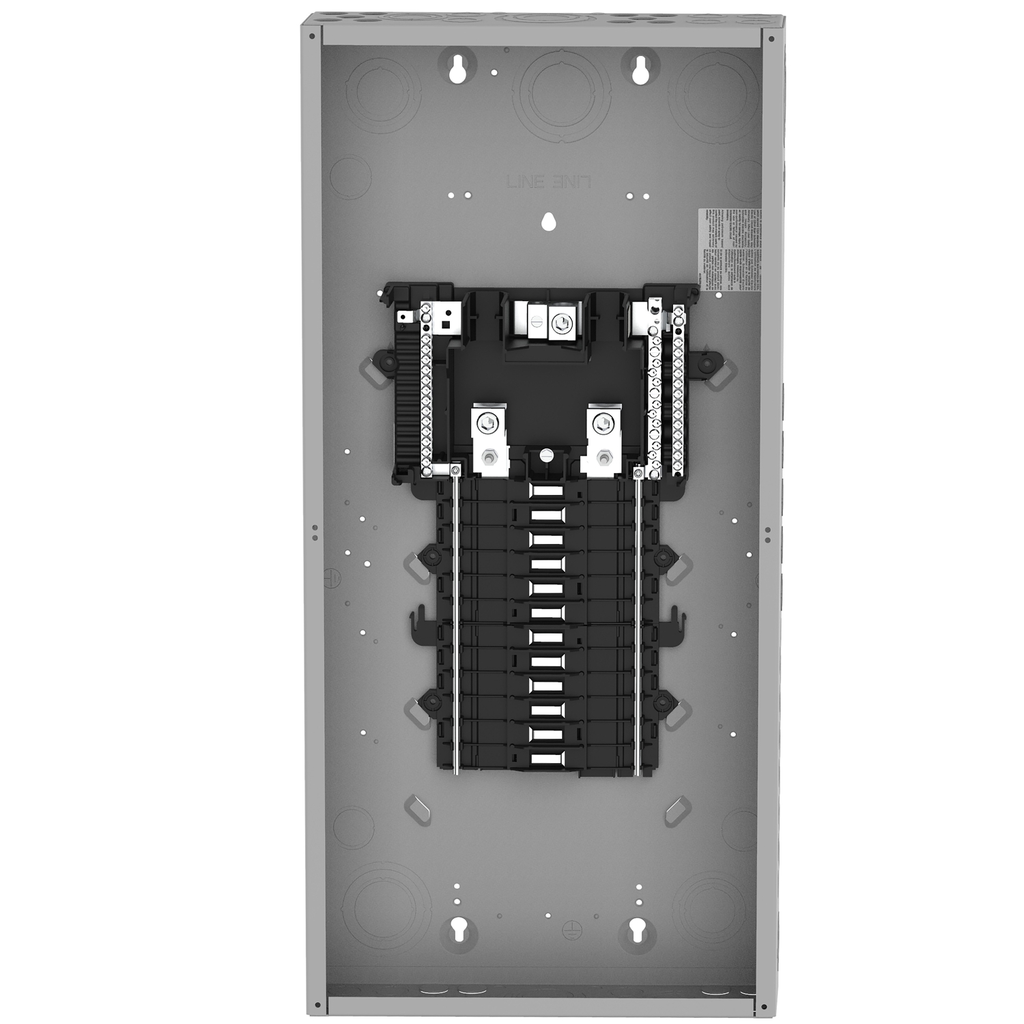

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems,

• Ambient Air Temperature For Operation
• -5 °C
• 40 °C
• Tightening Torque
• Cover 20 lb.in
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Nema Degree Of Protection
• NEMA 1 indoor enclosure

• Conformance Attributes
• Product Certifications : UL Listed
• Complementary Attributes
• Line Rated Current : 200 A
• Important Information Attributes
• Country Id : US
• B2B Bullet Point 1 : Provides superior performance and durability
• B2B Bullet Point 2 : Straight in wiring saves wire, labor, and time
• B2B Bullet Point 3 : Faster installation using PoN breakers that connect directly
• B2B Bullet Point 4 : 50% more terminations for clutter-free wiring
• B2B Bullet Point 5 : Complies with UL 67 listed, CSA, and IEC standards
• Local Data Status : Publishable
• Local Publishable Date : 2025-05-31
• Legacy WEEE Scope : In
• WEEE Product Category : 4
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 2531
• ROHS Eur Full Compliance Status : Compliant
• ROHS Eur Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : L - LOB initialized
• H And D Domain : Safety
• H And D Subrange : RESI
• H And D Enrichment Assignment : no
• H And D Enrichment Function : ENCLOSURES
• H And D Enrichment Class 3 : Load centers (equipped)
• H And D Enrichment Class 4 : single-phase main lug only indoor load center
• Box Number : 9
• Device Composition : grounding bar included (not installed)
• Energy Efficiency Optimized : False
• Load Center Type : PoN Convertible Mains (lugs)
• Number Of Circuits : 36
• Number Of Spaces : 24
• Number Of Tandem Circuit Breakers : 12
• Package Weight Lbs : 7.362 kg
• Phase : 1 phase
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : Load Center
• Provided Equipment : grounding bar
• Range Of Product : QO
• Returnability : Yes
• Short Circuit Current : 65 kA
• Sustainable Packaging : No
• Relationshiptype : Compatible relationship
• Accessories : PKGTALP1
• General Attributes
• Phase : 1 phase
• Product Or Component Type : Load Center
• Provided Equipment : grounding bar
• Range Of Product : QO
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=513928452&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2212003
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Specifications
• Country of Origin : United States
• Height : 29.84 in
• Width : 14.25 in
• Depth : 3.74 in
