SQUARE D

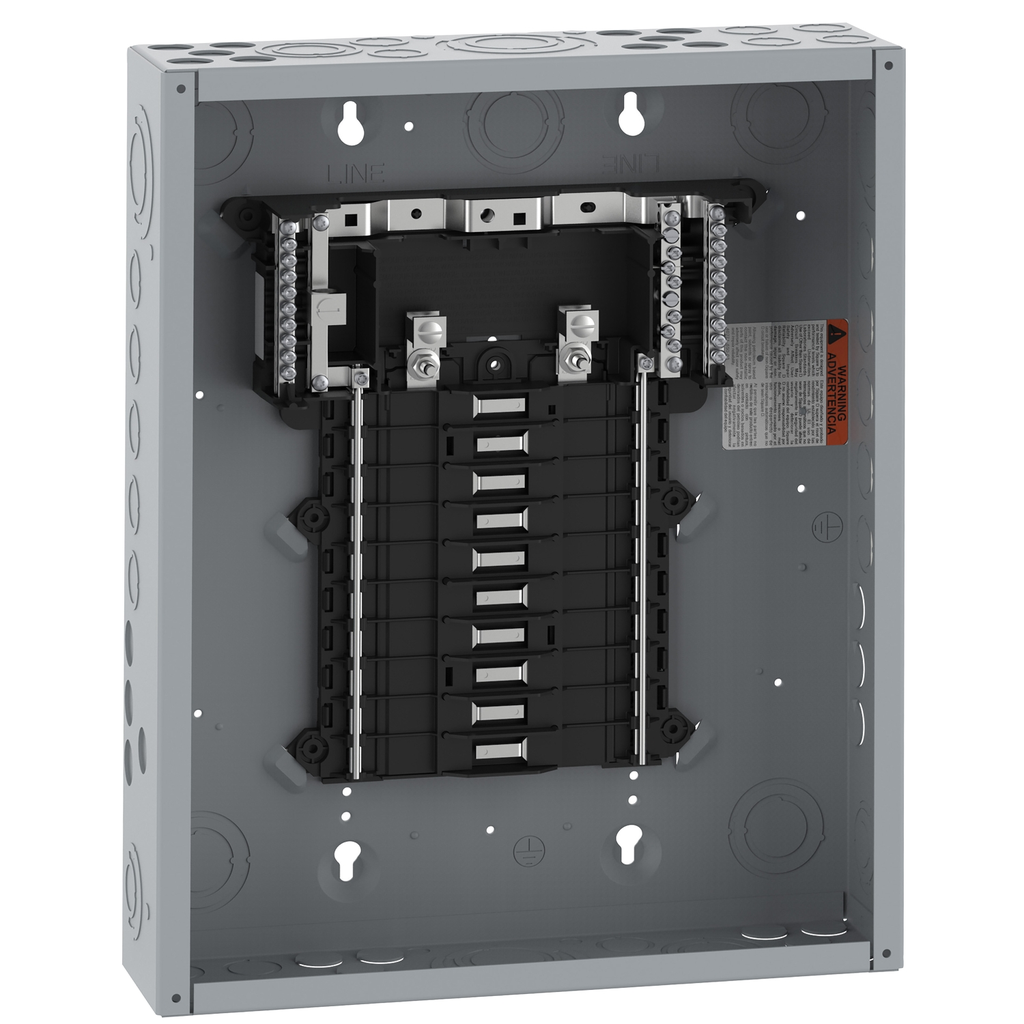

Load center, QO, 1 phase, 20 spaces, 24 circuits, 125A convertible main lugs, PoN, NEMA1, gnd bar, UL

LOADCENTER MLO 125A 1PH N1

SQDQO120L125PG QO120L125PG 785901609407
97.18 / EA
http://schema.org/OutOfStock
Mayer-DDS-Load center, QO, 1 phase, 20 spaces, 24 circuits, 125A convertible main lugs, PoN, NEMA1, gnd bar, UL-1
  • Certifications: UL
  • Depth: 95 mm
  • Height: 455 mm
  • Line Rated Current: 125 A
  • Net Weight: 5.350 kg
  • Number of Circuits: 24
  • Number of Phases: 1
  • Short Circuit Current: 65 kA
  • Width: 362 mm
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 20 spaces and 24 circuits. This system provides 125A convertible main lugs in a NEMA 1 enclosure It also includes plug on neutral, ground bar, and is UL rated.
QTY
  • Product Description
  • Specifications
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 20 spaces and 24 circuits. This system provides 125A convertible main lugs in a NEMA 1 enclosure It also includes plug on neutral, ground bar, and is UL rated.
  • Complementary
    • Height : 455 mm
    • Tightening Torque : Cover 20 lb.in
    • Number Of Circuits : 24
    • Number Of Spaces : 20
    • Phase : 1 phase
    • Net Weight : 5.350 kg
    • Short-Circuit Current : 65 kA
    • Number Of Tandem Circuit Breakers : 4
    • Line Rated Current : 125 A
    • Width : 362 mm
    • Depth : 95 mm
    • Load Center Type : PoN Convertible Mains (lugs)
    • Device Composition : grounding bar included (not installed)
    • Box Number : 6
  • Environment
    • Product Certifications : UL Listed
    • Nema Degree Of Protection : NEMA 1 indoor
    • Ambient Air Temperature For Operation : -5 °C || 40 °C
  • Specifications
    • Range Of Product : QO
    • Provided Equipment : grounding bar
    • Product Or Component Type : Load Center
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2212001
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Circularity Profile : N/A
    • Eu Rohs Directive : Compliant
