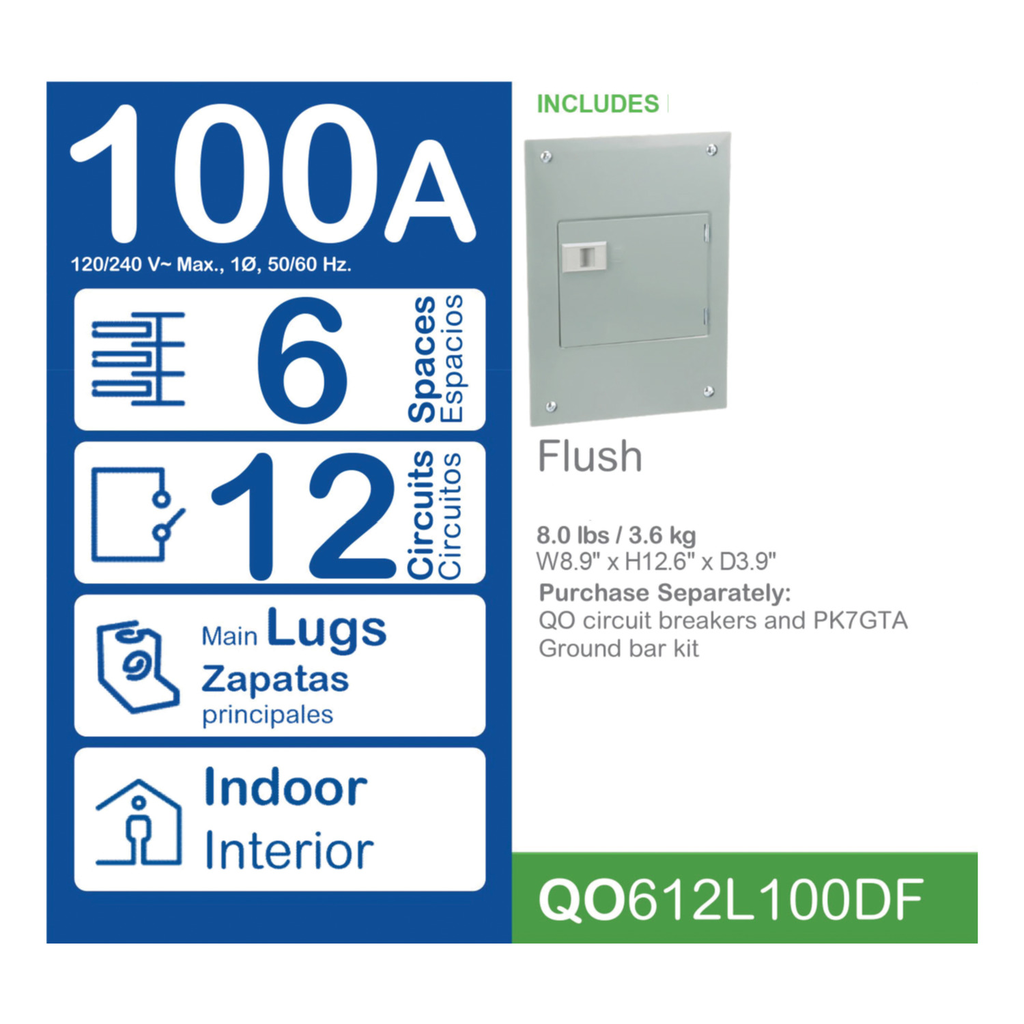

Load center, QO, 1 phase, 6 spaces, 12 circuits, 100A fixed main lugs, NEMA1, door flush cover

LOAD CENTER QO MLO 240V 100A 1

SQDQO612L100DF QO612L100DF 785901785644
71.55 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Load center, QO, 1 phase, 6 spaces, 12 circuits, 100A fixed main lugs, NEMA1, door flush cover-2
  • Country of Origin: Mexico
  • Cover Type: Flush Cover With Door
  • Depth: 3.74 in
  • Enclosure Material: Welded Sheet Steel
  • Height: 12.56 in
  • Number of Circuits: 12
  • Number of Spaces: 6
  • Warranty Length: 18 mth
  • Width: 8.9 in
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems,
QTY
  • Product Description
  • Features
  • Specifications
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems,
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0.0829633153
    • 0.1 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.2 kg CO2 eq.
    • 0.2297720699
  • Ue Rated Operational Voltage
    • 120/240 V AC
  • Phase
    • 1 phase 3 wires
  • Material
    • tin plated aluminium: busbar
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 16 kg CO2 eq.
    • 16.2656122271
  • Nema Degree Of Protection
    • NEMA 1 indoor enclosure
  • Accessories
    • PK2MB
    • PKSB1QOBF
  • Persona Type Names
    • End User
    • Consumer
    • Contractor
    • Original Equipment Manufacturer
    • Electrician
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 0.1 kg CO2 eq.
    • 0.0873405405
  • Persona Type Ids
    • EU
    • EUA
    • LC
    • OM
    • SC
  • Carbon Footprint Of The Distribution Phase A4
    • 1.2696756157
    • 1 kg CO2 eq.
  • Tightening Torque
    • main lugs 50 lb.in, AWG 8, aluminium/copper
    • main lugs 50 lb.in, AWG 6...AWG 1/0, aluminium/copper
    • main lugs 50 lb.in, AWG
  • AWG Gauge
    • AWG 8...AWG 1 aluminium/copper
  • Ambient Air Temperature For Operation
    • -5 °C
    • 40 °C
  • Surface Finish
    • baked enamel Gray
  • Conformance Attributes
    • Product Certifications : UL Listed
  • Complementary Attributes
    • Line Rated Current : 100 A
  • Important Information Attributes
    • Country Id : US
    • B2B Bullet Point 1 : Provides superior performance and durability
    • B2B Bullet Point 2 : Straight in wiring saves wire, labor, and time
    • B2B Bullet Point 3 : Faster installation using PoN breakers that connect directly
    • B2B Bullet Point 4 : 50% more terminations for clutter-free wiring
    • B2B Bullet Point 5 : Complies with UL 67 listed, CSA, and IEC standards
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-05-31
    • Manufacturing Carbon Footprint : 16.2656122271
    • Distribution Carbon Footprint : 1.2696756157
    • Installation Carbon Footprint : 0.0829633153
    • Use Carbon Footprint : 0.0873405405
    • End Of Life Carbon Footprint : 0.2297720699
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • ROHS Eur In Scope : Yes
    • ROHS Eur Status : Compliant
    • ROHS Eur Conformity Date : 2531
    • ROHS Eur Full Compliance Status : Compliant
    • ROHS Eur Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • China ROHS Label : 1
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Load centers (equipped)
    • H And D Enrichment Class 4 : single-phase main lug only indoor load center
    • Box Number : 4
    • Cover Type : flush cover with door
    • Device Composition : grounding bar (ordered separately)
    • Electrical Connection : lugs
    • Enclosure Material : welded sheet steel
    • Energy Efficiency Optimized : False
    • Load Center Type : Fixed Mains (lugs)
    • Number Of Circuits : 12
    • Number Of Spaces : 6
    • Number Of Tandem Circuit Breakers : 6
    • Package Weight Lbs : 3.756 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Load Center
    • Range Of Product : QO
    • Returnability : Yes
    • Short Circuit Current : 10 kA
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 18 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 17.9353637685
    • Relationshiptype : Compatible relationship
    • Base Plate : QON612L100
  • General Attributes
    • Product Or Component Type : Load Center
    • Range Of Product : QO
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=360945&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 17.9353637685
    • Environmental Disclosure : ENVPEP2212003
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
    • Height : 12.56 in
    • Width : 8.9 in
    • Depth : 3.74 in
