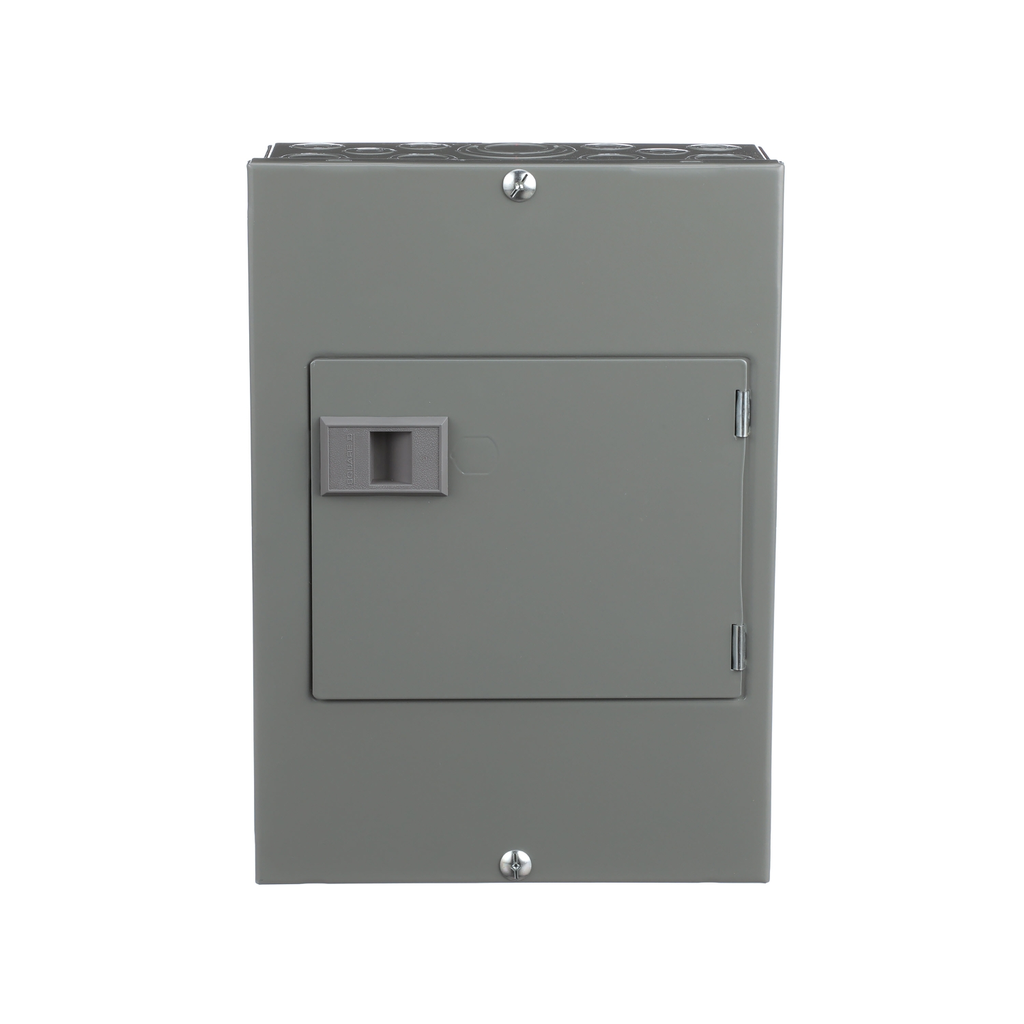

Generator panel, QO, 1 phase, 4 spaces, 8 circuits, 60A main breaker with interlock, NEMA1, surface cover door, UL

LOADCTR QO MB GEN PANEL 240V 6

SQDQO48M60DSGP QO48M60DSGP 785901824343
263.66 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Generator panel, QO, 1 phase, 4 spaces, 8 circuits, 60A main breaker with interlock, NEMA1, surface cover door, UL-2
  • Country of Origin: Mexico
  • Cover Type: Surface Cover With Door
  • Depth: 3.82 in
  • Enclosure Material: Welded Sheet Steel
  • Height: 12.56 in
  • Number of Circuits: 8
  • Number of Spaces: 4
  • Warranty Length: 18 mth
  • Width: 8.9 in
Square D® QO® Generator Panels connects directly to the main load center and provides four single pole spaces that will accommodate up to eight circuit dedicated for back-up power. They are designed to meet residential, commercial, and industrial require
QTY
  • Product Description
  • Features
  • Specifications
Square D® QO® Generator Panels connects directly to the main load center and provides four single pole spaces that will accommodate up to eight circuit dedicated for back-up power. They are designed to meet residential, commercial, and industrial require
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Phase
    • 1 phase 3 wires
  • Material
    • tin plated aluminium: busbar
  • Nema Degree Of Protection
    • NEMA 1 indoor enclosure
  • Accessories
    • PK7GTA
    • PK8FL
  • Persona Type Names
    • End User
    • Consumer
    • Contractor
    • Electrician
  • Persona Type Ids
    • EU
    • EUA
    • LC
    • SC
  • Tightening Torque
    • Cover 20 lb.in
  • AWG Gauge
    • AWG 8...AWG 2 aluminium/copper
  • Ambient Air Temperature For Operation
    • -5 °C
    • 40 °C
  • Surface Finish
    • baked enamel Gray
  • Conformance Attributes
    • Product Certifications : UL Listed
  • Complementary Attributes
    • Line Rated Current : 60 A
  • Important Information Attributes
    • Country Id : US
    • B2B Bullet Point 1 : QO™ Generator Panels provide a manual method to switch power easily
    • B2B Bullet Point 2 : Safety interlock prevents both main breakers from being "ON" at the same time
    • B2B Bullet Point 3 : Accommodates up to eight circuits dedicated for back-up power
    • B2B Bullet Point 4 : Indoor and Outdoor enclosure options available to provide flexibility
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : Yes
    • ROHS Eur Status : Compliant with Exemptions
    • ROHS Eur Conformity Date : 2532
    • ROHS Eur Full Compliance Status : Compliant with Exemptions
    • ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 3
    • Tier : 3
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Load centers (equipped)
    • H And D Enrichment Class 4 : Single-phase convertible mains indoor load center
    • Box Number : 4
    • Cover Type : surface cover with door
    • Device Composition : grounding bar (ordered separately)
    • Electrical Connection : lugs
    • Enclosure Material : welded sheet steel
    • Energy Efficiency Optimized : False
    • Load Center Type : main breaker
    • Number Of Circuits : 8
    • Number Of Spaces : 4
    • Number Of Tandem Circuit Breakers : 4
    • Package Weight Lbs : 4.282 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : panel
    • Range Of Product : QO
    • Returnability : Yes
    • Short Circuit Current : 10 kA
    • Sustainable Packaging : No
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Product Or Component Type : panel
    • Range Of Product : QO
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=360929&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2212001
    • Eu Rohs Directive : Compliant with Exemptions
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
    • Height : 12.56 in
    • Width : 8.9 in
    • Depth : 3.82 in
