SQUARE D

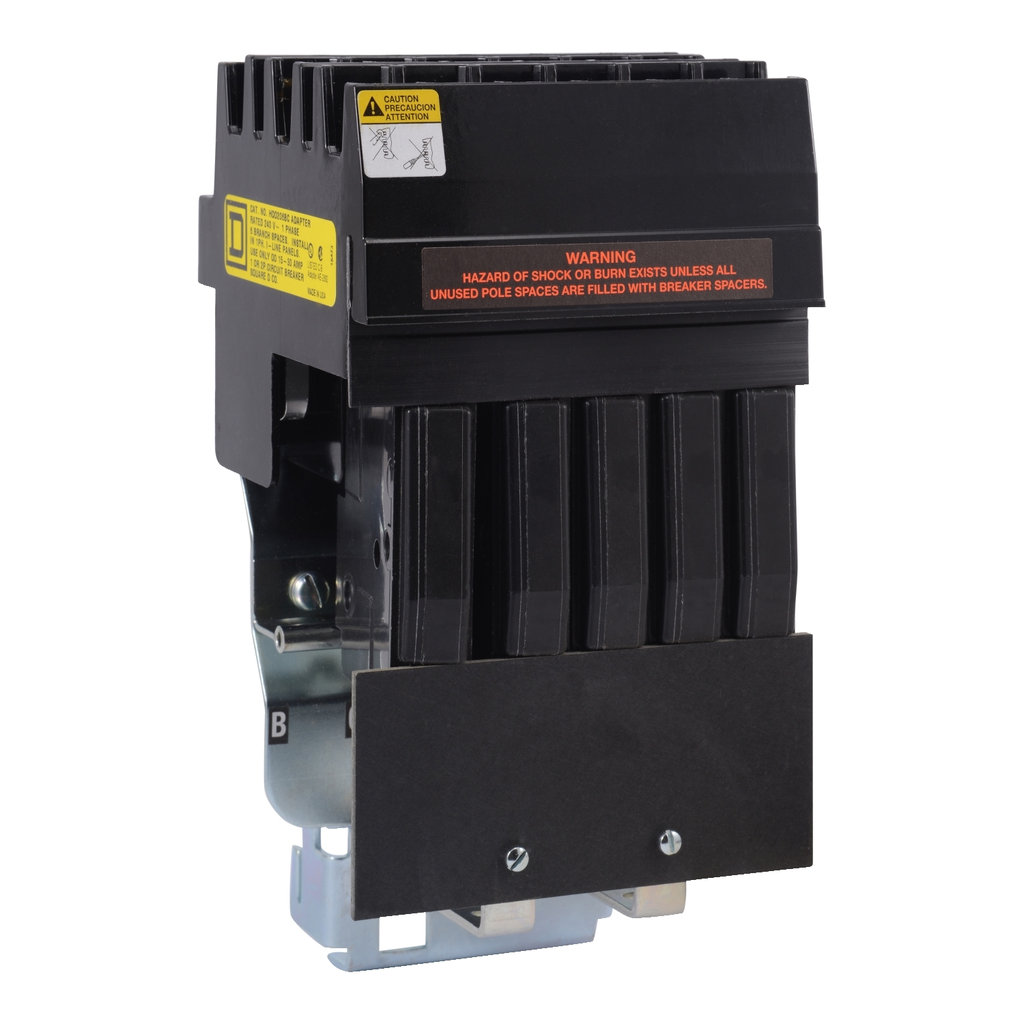

Distribution panel, QO, for I-Line panelboards, 240V, 30A, 2 pole, BC

DISTRIBUTION PANEL

SQDHQO206BC HQO206BC 785901650065
333.21 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Distribution panel, QO, for I-Line panelboards, 240V, 30A, 2 pole, BC-1
  • Circuit Breaker Type: QO
  • Line Rated Current: 30 A
  • Number of Phases: 1
  • Short Circuit Current: 25 kA
  • Warranty Length: 18 mth
I-Line power distribution panelboards are ideal for service entrance equipment or downstream distribution panels in the electrical system of a large commercial or industrial facility. The I-Line power distribution panelboard has a circuit breaker engagement system and is used to feed NQ and NF panelboards. I-Line panelboards are capable of feeding large motor loads and are utilized in most every market segment. This QO distribution panel only mounts in HCM, HCP, HCP-SU or HCR-U I-Line panelboards. This QO distribution will accept up to six 30A single pole QO circuit breakers. This panel has a 240 VAC maximum rating. Panel provides 25 kA breaking capacity. It has an BC phase connection. The panel will accept 14 AWG or 12 AWG copper or aluminum wire.
QTY
  • Product Description
  • Specifications
I-Line power distribution panelboards are ideal for service entrance equipment or downstream distribution panels in the electrical system of a large commercial or industrial facility. The I-Line power distribution panelboard has a circuit breaker engagement system and is used to feed NQ and NF panelboards. I-Line panelboards are capable of feeding large motor loads and are utilized in most every market segment. This QO distribution panel only mounts in HCM, HCP, HCP-SU or HCR-U I-Line panelboards. This QO distribution will accept up to six 30A single pole QO circuit breakers. This panel has a 240 VAC maximum rating. Panel provides 25 kA breaking capacity. It has an BC phase connection. The panel will accept 14 AWG or 12 AWG copper or aluminum wire.
  • Environment
    • Ambient Air Temperature For Operation : -5 °C || 40 °C
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Compliant with Exemptions
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Circuit Breaker Type : QO
    • Awg Gauge : AWG 14...AWG 12 copper or aluminium
    • Phase Connection : BC
  • Specifications
    • Short-Circuit Current : 25 kA
    • Range Of Product : QO
    • [Ue] Rated Operational Voltage : 120/240 V AC
    • Line Rated Current : 30 A
    • Product Or Component Type : panel
    • Number Of Spaces : 6
    • Phase : 1 phase
