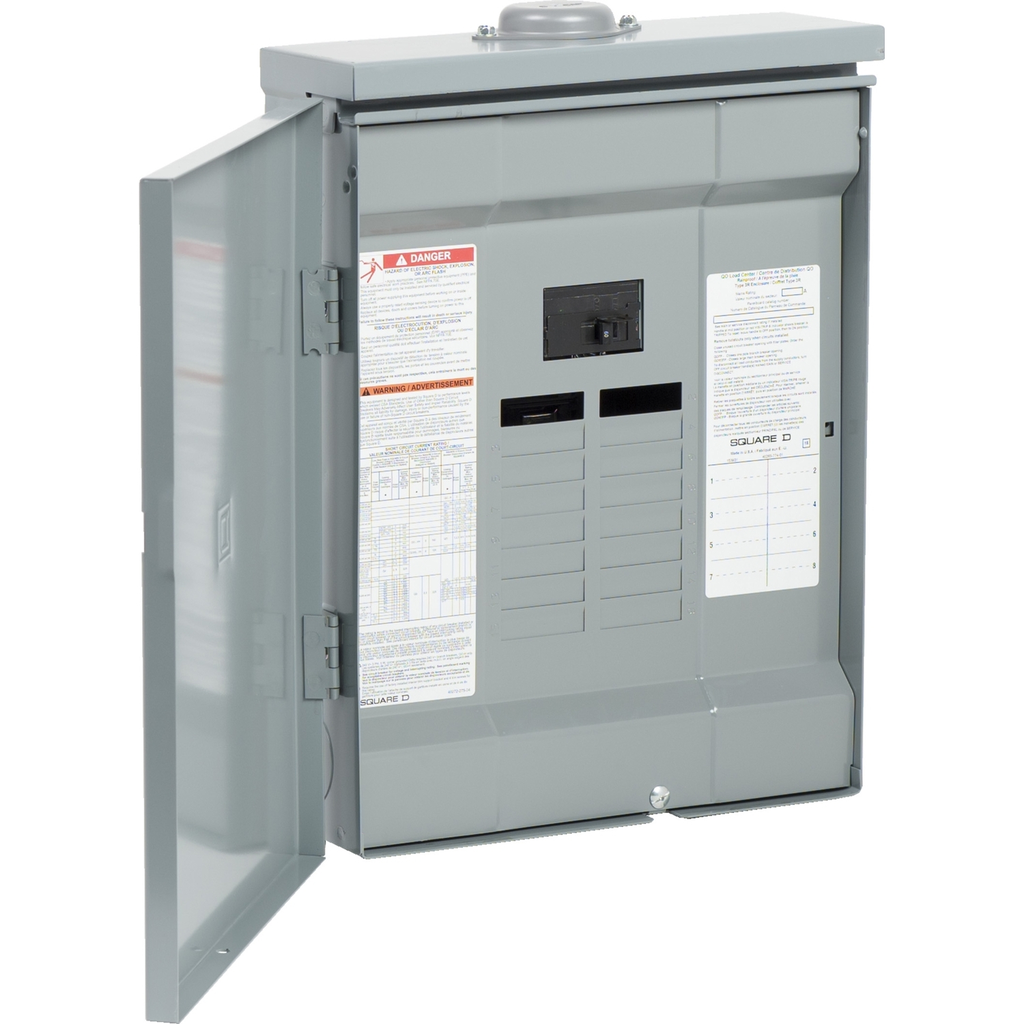

CQO Load Centers offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside CQO Load Centers enable the use of a full complement of accessories. Systems can be single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 180 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. CQO Load Centers feature plated copper bus, providing superior performance and durability. This CQO load center with a factory installed 60A main breaker that has bus rated 100A single phase. This CQO load center provides a 22 kA breaking capacity. This system provides 18 spaces in a NEMA 3R outdoor enclosure. The electrical connections are lugs. The box lugs will accept a wire range of 6 AWG to 2/0 AWG copper or aluminum wire. Load center has a surface mounted cover. CQO load centers are CSA certified.

• Phase
• 1 phase 3 wires
• Material
• tin plated copper: busbar
• Nema Degree Of Protection
• NEMA 3R weatherproof enclosure
• Persona Type Names
• End User
• Contractor
• Persona Type Ids
• EU
• LC
• UE Rated Operational Voltage
• 120/240 V AC

• Assets
• CAD : https://download.schneider-electric.com/files?p_Doc_Ref=PTFDS-0QN9-0006
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-13
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 2532
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : RESIDENTIAL
• Market Segmentation : Residential
• H And D Domain : Safety
• H And D Subrange : RESI
• H And D Enrichment Assignment : no
• H And D Enrichment Function : ENCLOSURES
• Cover Type : surface cover
• Electrical Connection : lugs
• Energy Efficiency Optimized : False
• Load Center Type : main breaker
• Number Of Spaces : 8
• Number Of Tandem Circuit Breakers : 0
• Package Weight Lbs : 10.510 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : Load Center
• Range Of Product : QO
• Returnability : Yes
• Sustainable Packaging : No
• Pep Code : ENVPEP2212001
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : Load Center
• Range Of Product : QO
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=4047283&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2212001
• EU ROHS Directive : Compliant with Exemptions
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2212001
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
