Loadcentre, QO Canadian, 1 phase, 40 spaces, 80 circuits, 200A main lugs, PoN, NEMA3R, gnd bar, CSA

Loadcentre, QO, 1 phase, 40 sp

SQDCQO140L200PGRB CQO140L200PGRB 785901971887
678.05 / EA
http://schema.org/OutOfStock

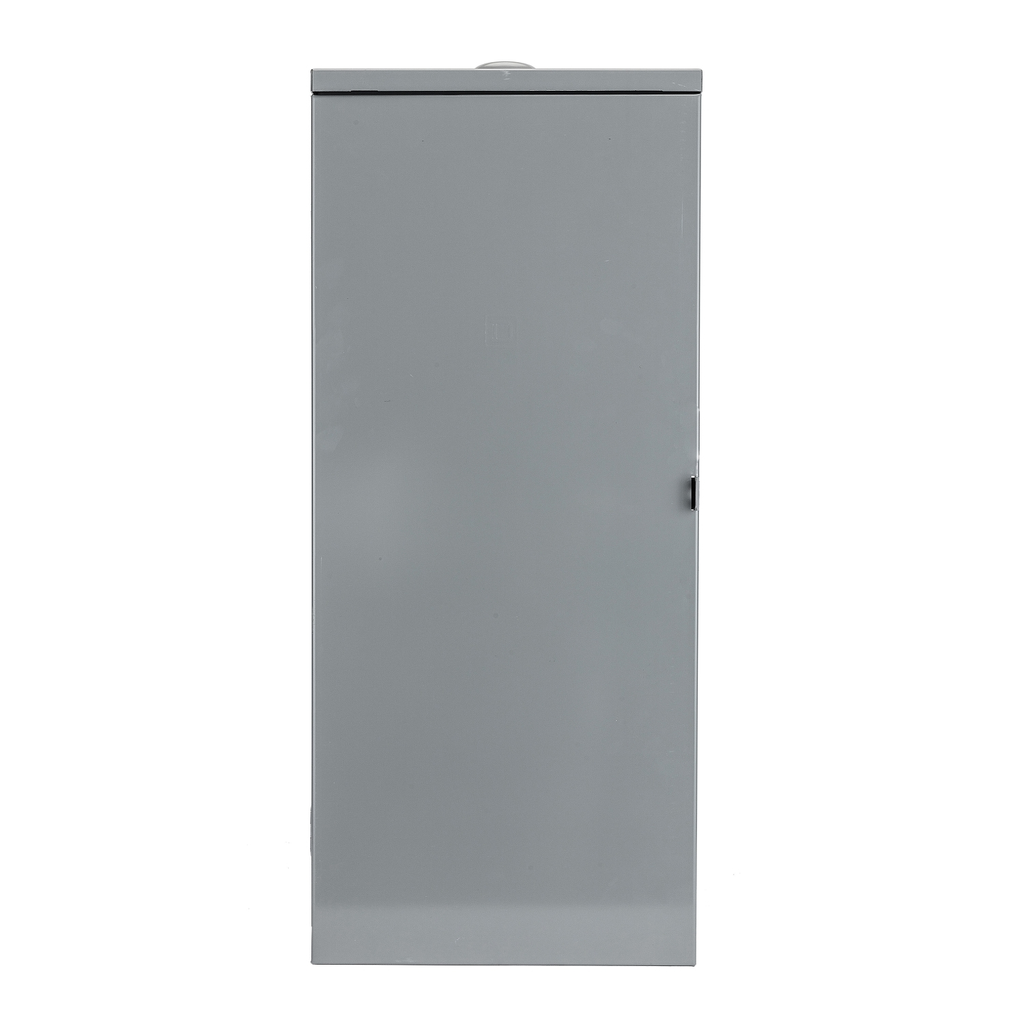

Mayer-DDS-Loadcentre, QO Canadian, 1 phase, 40 spaces, 80 circuits, 200A main lugs, PoN, NEMA3R, gnd bar, CSA-1
  • Country of Origin: USA
  • Depth: 95 mm
  • Height: 858 mm
  • Number of Circuits: 80
  • Number of Spaces: 40
  • Short Circuit Current Rating: 65 kA
  • Width: 362 mm
QO Loadcentres offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Loadcentres are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Loadcentres enable the use of a full complement of accessories. This 1 phase loadcentre has 40 spaces and 60 circuits. This system provides 200A main lugs in a NEMA 3R enclosure. It also includes plug on neutral, ground bar, and is CSA rated.
QTY
  • Product Description
  • Features
  • Specifications
QO Loadcentres offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Loadcentres are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Loadcentres enable the use of a full complement of accessories. This 1 phase loadcentre has 40 spaces and 60 circuits. This system provides 200A main lugs in a NEMA 3R enclosure. It also includes plug on neutral, ground bar, and is CSA rated.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Height : 858 mm
    • Phase : 1 phase
    • Tightening Torque : main lugs 250 lb.in, AWG 4...250 kcmil, aluminium/copper
    • [Ue] Rated Operational Voltage : 240 V AC
    • Number Of Circuits : 80
    • Number Of Spaces : 40
    • Short-Circuit Current : 65 kA
    • Line Rated Current : 200 A
    • Width : 362 mm
    • Depth : 95 mm
    • Load Center Type : PoN Convertible Mains (lugs)
    • Device Composition : grounding bar included (not installed)
  • Specifications
    • Country of Origin : United States
    • Width : 362 mm
    • Height : 858 mm
    • Range Of Product : QO
    • Product Or Component Type : Load Center
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Take-Back : No
  • Environment
    • Product Certifications : CSA
    • Ambient Air Temperature For Operation : -5 °C || 40 °C
    • Nema Degree Of Protection : NEMA 3R weatherproof enclosure
