SQUARE D

Load center, QO, 1 phase, 32 spaces, 40 circuits, 150A convertible main breaker, PoN, NEMA1

LOADCENTER MB 150A 1PH N1

SQDQO132M150P QO132M150P 785901611325
228.30 / EA
http://schema.org/OutOfStock

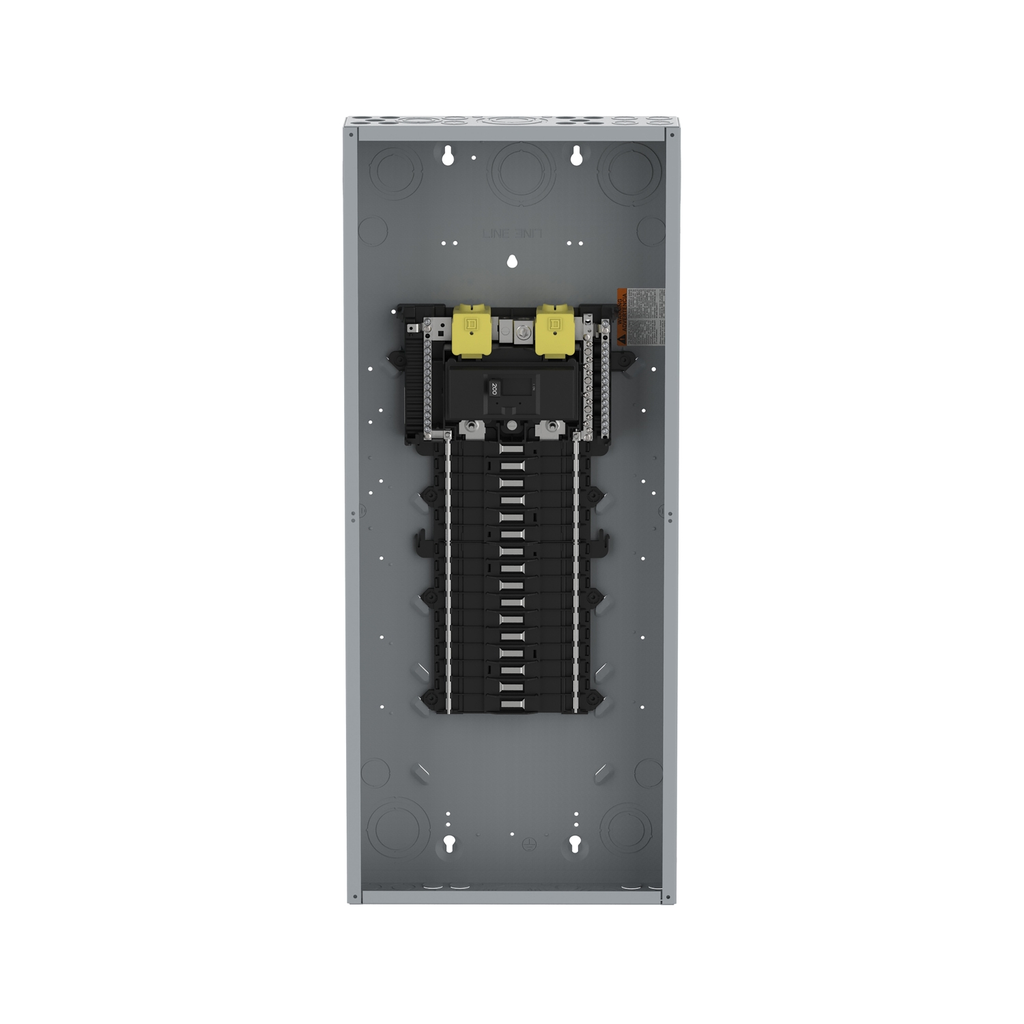

Mayer-DDS-Load center, QO, 1 phase, 32 spaces, 40 circuits, 150A convertible main breaker, PoN, NEMA1-2
  • Country of Origin: USA
  • Depth: 95 mm
  • Height: 858 mm
  • Net Weight: 8.620 kg
  • Number of Circuits: 40
  • Number of Spaces: 32
  • Short Circuit Current Rating: 22 kA
  • Weight: 8.620 kg
  • Width: 362 mm
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 32 spaces and 40 circuits. This system provides a 150A convertible main breaker in a NEMA 1 enclosure. It also includes plug on neutral and is UL rated.
QTY
  • Product Description
  • Features
  • Specifications
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 32 spaces and 40 circuits. This system provides a 150A convertible main breaker in a NEMA 1 enclosure. It also includes plug on neutral and is UL rated.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2212001
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : N/A
    • Take-Back : No
    • Eu Rohs Directive : Compliant with Exemptions
  • Specifications
    • Country of Origin : United States
    • Width : 362 mm
    • Height : 858 mm
    • Weight : 8.620 kg
    • Range Of Product : QO
    • Product Or Component Type : Load Center
  • Complementary
    • Height : 858 mm
    • Phase : 1 phase
    • Tightening Torque : Cover 20 lb.in
    • Number Of Circuits : 40
    • Number Of Spaces : 32
    • Net Weight : 8.620 kg
    • Short-Circuit Current : 22 kA
    • Number Of Tandem Circuit Breakers : 10
    • Line Rated Current : 150 A
    • Width : 362 mm
    • Depth : 95 mm
    • Load Center Type : PoN Convertible Mains (breaker)
    • Device Composition : grounding bar (ordered separately)
    • Box Number : 10
  • Environment
    • Product Certifications : UL Listed
    • Ambient Air Temperature For Operation : -5 °C || 40 °C
    • Nema Degree Of Protection : NEMA 1 indoor enclosure
