Load center, QO, 1 phase, 32 spaces, 38 circuits, 125A convertible main lugs, PoN, NEMA1, gnd bar

Load center, QO, 1 phase, 32 spaces, 38 circuits, 125A convertible main lugs, PoN, NEMA1, gnd bar

SQDQO132L125PG QO132L125PG 785901611226
174.75 / EA
http://schema.org/OutOfStock

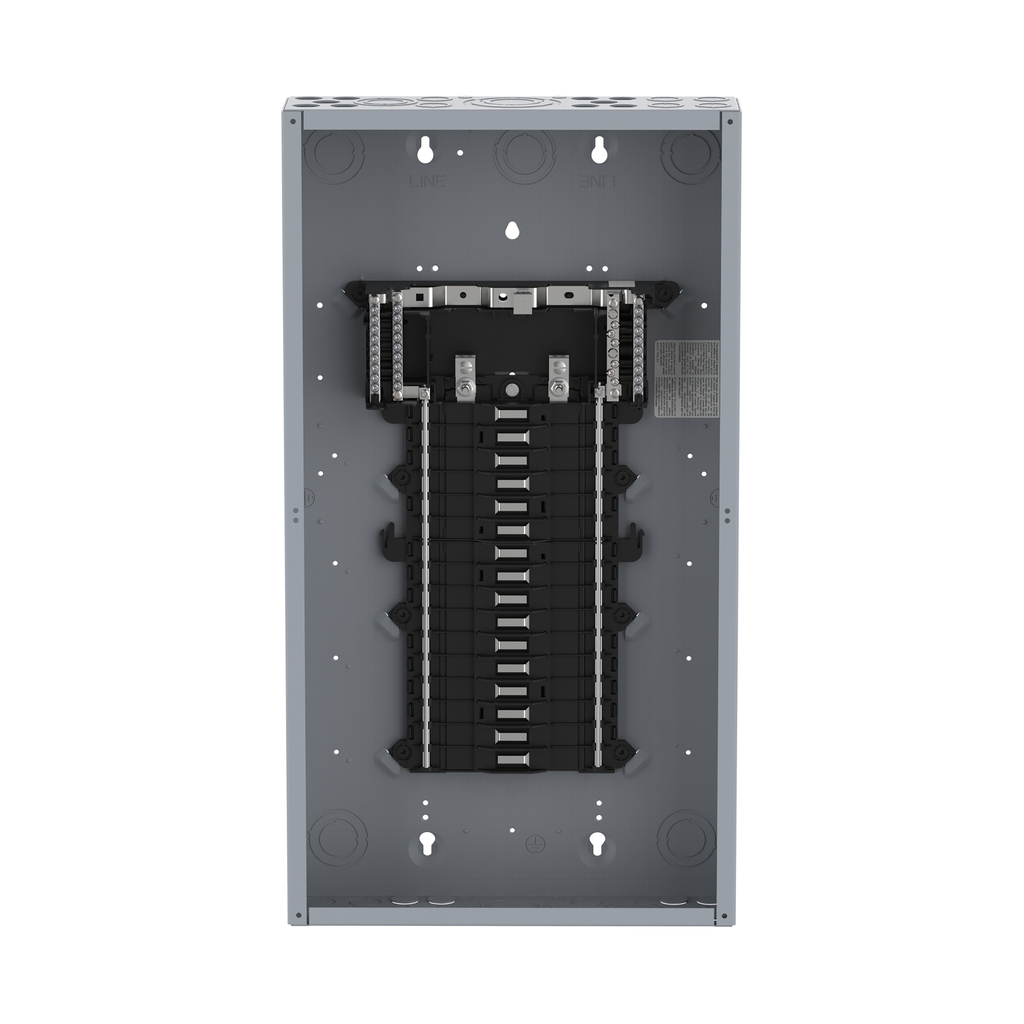

Mayer-DDS-Load center, QO, 1 phase, 32 spaces, 38 circuits, 125A convertible main lugs, PoN, NEMA1, gnd bar-1
  • Depth: 95 mm
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 32 spaces and 38 circuits. This system provides 125A convertible main lugs in a NEMA 1 enclosure. It also includes plug on neutral, ground bar, and is UL rated.
QTY
  • Product Description
  • Features
  • Specifications
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 32 spaces and 38 circuits. This system provides 125A convertible main lugs in a NEMA 1 enclosure. It also includes plug on neutral, ground bar, and is UL rated.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=PWFDS-SYRS-0213
  • Conformance Attributes
    • Product Certifications : UL Listed
  • Complementary Attributes
    • Line Rated Current : 125 A
    • Rated Current : 125 A
  • Important Information Attributes
    • Persona Type Ids : EU, EUA, LC, OM, SC
    • Persona Type Names : End User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
    • Carbon Footprint Of The Distribution Phase A4 : 3.8806845721, 4 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 1 kg CO2 eq., 1.0725661462
    • Carbon Footprint Of The Installation Phase A5 : 0.0464577889, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 57 kg CO2 eq., 57.4286820737
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0.1 kg CO2 eq., 0.087341
    • Medium Desc : Load center, QO, 1 phase, 32 spaces, 38 circuits, 125A convertible main lugs, PoN, NEMA1, gnd bar
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-18
    • Global Commercial Status : Commercialised
    • Return Indicator : Y
    • Stocking Flag : N
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Load centers (equipped)
    • H And D Enrichment Class 4 : single-phase main lug only indoor load center
    • Legacy Weee Scope : In
    • Scope Perimeter : Outside of Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : No
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • Product Kit Identifier : N
    • Device Composition : grounding bar included (not installed)
    • Energy Efficiency Optimized : False
    • Load Center Type : PoN Convertible Mains (lugs)
    • Phase : 1 phase
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Load Center
    • Provided Equipment : grounding bar
    • Range Of Product : QO
    • Returnability : Yes
    • Short Circuit Current : 65 kA
    • Software Version : EIME v5.9.4
    • Sustainable Packaging : No
    • Tightening Torque : Cover 20 lb.in
    • Total Lifecycle Carbon Footprint : 63 kg CO2 eq.
    • Pep Code : ENVPEP2212003EN
    • Database Version : 2022-01
    • Pep Verification Date : 2025-08-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Psr Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent external review
    • Data Source : extrapolated product
    • Functional Unit Description : Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1000mm x362mm x 95mm, that is certified for UL 67.
    • Functional Unit Unit : unit
    • Energy Model Manufacturing A1 A3 2 : Energy model used: Tlaxcala Mexico
    • Energy Model Installation A5 2 : Electricity mix; AC; consumption mix, at consumer; 120V; US
    • Energy Model Use B6 2 : Electricity mix; AC; consumption mix, at consumer; 120V; US
    • Energy Model End Of Life C1 C4 2 : Electricity mix; AC; consumption mix, at consumer; 120V; US
    • Height Nominal : 661 mm
    • Width Nominal : 362 mm
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Ambient Air Temperature For Operation : -5 °C, 40 °C
    • Take Back : Nej
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 62.5157315809
    • Environmental Disclosure : ENVPEP2212003EN
    • Eu Rohs Directive : Compliant
    • Nema Degree Of Protection : NEMA 1 indoor enclosure
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2212003EN
    • Pep Verification Date : 2025-08-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Psr Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Phase : 1 phase
    • Product Or Component Type : Load Center
    • Provided Equipment : grounding bar
    • Range Of Product : QO
  • Specifications
    • Depth : 95 mm
