Load center, QO, 1 phase, 24 spaces, 36 circuits, 150A convertible main breaker, PoN, NEMA1, UL

LOADCENTER MB 150A 1PH N1

SQDQO124M150P QO124M150P 785901609650
163.45 / EA
http://schema.org/OutOfStock

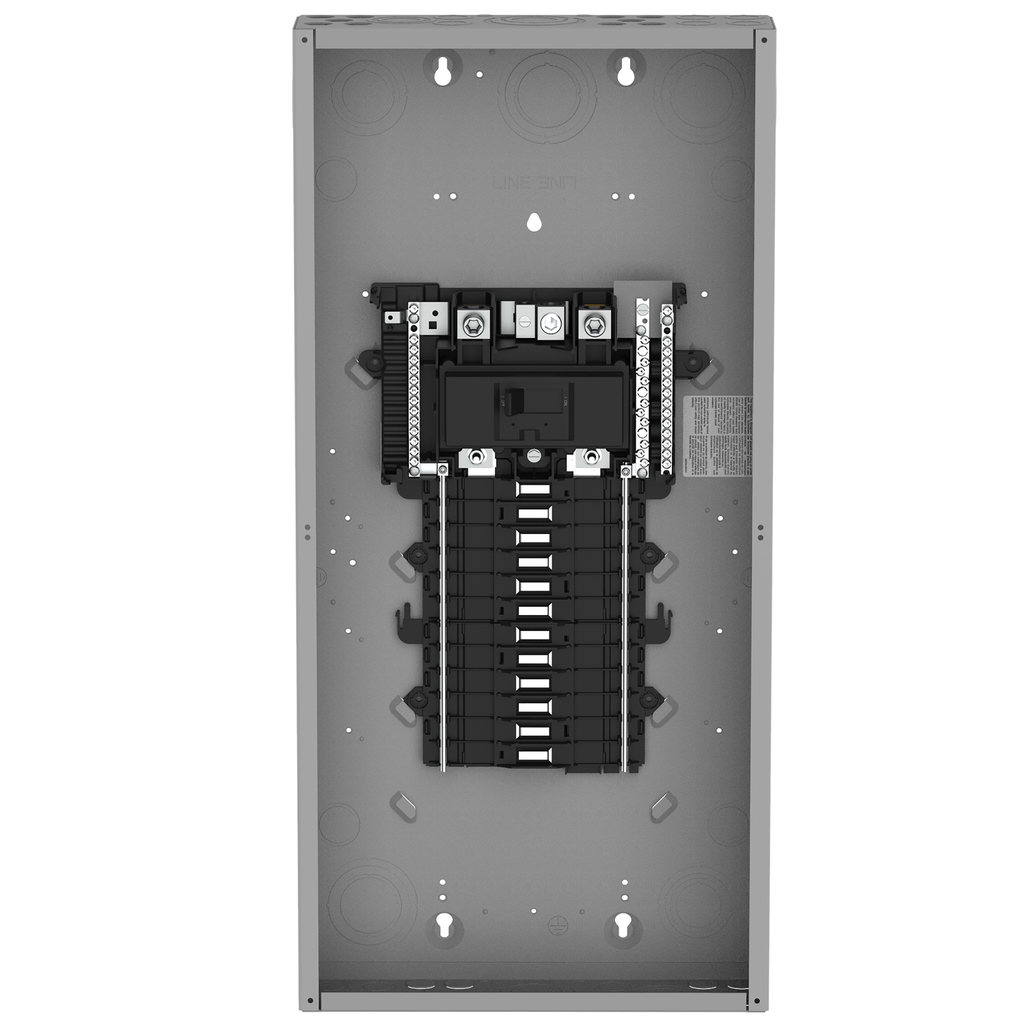

Mayer-DDS-Load center, QO, 1 phase, 24 spaces, 36 circuits, 150A convertible main breaker, PoN, NEMA1, UL-2
  • Certifications: UL
  • Depth: 95 mm
  • Height: 758 mm
  • Line Rated Current: 150 A
  • Net Weight: 11.790 kg
  • Number of Circuits: 36
  • Number of Phases: 1
  • Short Circuit Current: 22 kA
  • Width: 362 mm
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 24 spaces and 36 circuits. This system provides a 150A convertible main breaker in a NEMA 1 enclosure. It also includes plug on neutral and is UL rated.
QTY
  • Product Description
  • Specifications
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 24 spaces and 36 circuits. This system provides a 150A convertible main breaker in a NEMA 1 enclosure. It also includes plug on neutral and is UL rated.
  • Complementary
    • Height : 758 mm
    • Tightening Torque : Cover 20 lb.in
    • Number Of Circuits : 36
    • Number Of Spaces : 24
    • Phase : 1 phase
    • Net Weight : 11.790 kg
    • Short-Circuit Current : 22 kA
    • Number Of Tandem Circuit Breakers : 12
    • Line Rated Current : 150 A
    • Width : 362 mm
    • Depth : 95 mm
    • Load Center Type : PoN Convertible Mains (breaker)
    • Device Composition : grounding bar (ordered separately)
    • Box Number : 9
  • Environment
    • Product Certifications : UL Listed
    • Nema Degree Of Protection : NEMA 1 indoor
    • Ambient Air Temperature For Operation : -5 °C || 40 °C
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2212001
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Circularity Profile : N/A
    • Eu Rohs Directive : Compliant
  • Specifications
    • Range Of Product : QO
    • Product Or Component Type : Load Center
