Load center, QO, 1 phase, 24 spaces, 34 circuits, 125A convertible main breaker, PoN, NEMA1

LOADCENTER MB 125A 1PH N1

SQDQO124M125P QO124M125P 785901609544
181.95 / EA
http://schema.org/OutOfStock

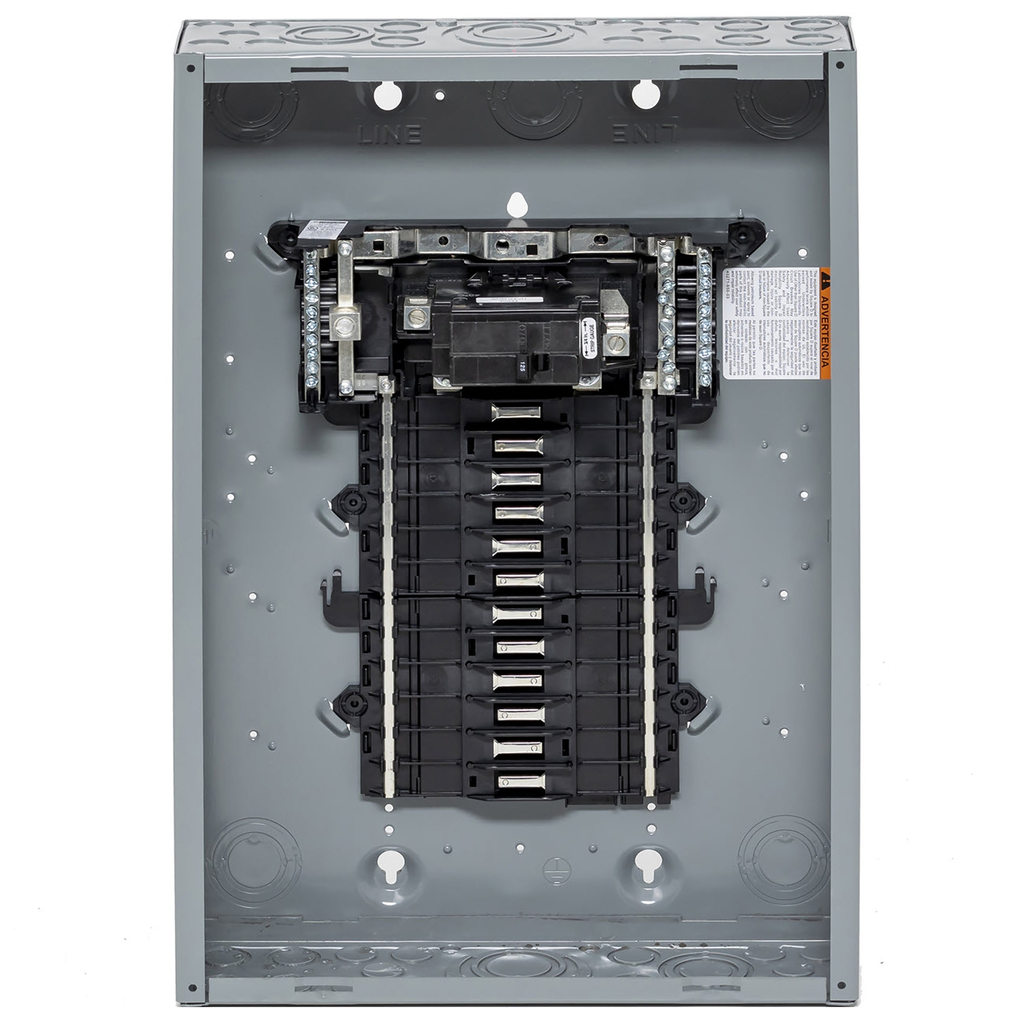

Mayer-DDS-Load center, QO, 1 phase, 24 spaces, 34 circuits, 125A convertible main breaker, PoN, NEMA1-2
  • Country of Origin: USA
  • Depth: 95 mm
  • Height: 531 mm
  • Net Weight: 8.620 kg
  • Number of Circuits: 34
  • Number of Spaces: 24
  • Short Circuit Current Rating: 22 kA
  • Weight: 8.620 kg
  • Width: 362 mm
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 24 spaces and 34 circuits. This system provides a 125A convertible main breaker in a NEMA 1 enclosure. It also includes plug on neutral and is UL rated.
QTY
  • Product Description
  • Features
  • Specifications
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 24 spaces and 34 circuits. This system provides a 125A convertible main breaker in a NEMA 1 enclosure. It also includes plug on neutral and is UL rated.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Height : 531 mm
    • Phase : 1 phase
    • Tightening Torque : Cover 20 lb.in
    • Number Of Circuits : 34
    • Number Of Spaces : 24
    • Net Weight : 8.620 kg
    • Short-Circuit Current : 22 kA
    • Number Of Tandem Circuit Breakers : 10
    • Line Rated Current : 125 A
    • Width : 362 mm
    • Depth : 95 mm
    • Load Center Type : PoN Convertible Mains (breaker)
    • Device Composition : grounding bar (ordered separately)
    • Box Number : 7
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2212001
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : N/A
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 0.087341
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 49.0988647059
    • Carbon Footprint Of The Distribution Phase [A4] : 2 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq.
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 52 kg CO2 eq.
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.7133836765
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 52.20495311
  • Specifications
    • Country of Origin : United States
    • Width : 362 mm
    • Height : 531 mm
    • Weight : 8.620 kg
    • Range Of Product : QO
    • Product Or Component Type : Load Center
  • Environment
    • Product Certifications : UL Listed
    • Ambient Air Temperature For Operation : -5 °C || 40 °C
    • Nema Degree Of Protection : NEMA 1 indoor enclosure
