SQUARE D

Load center, QO, 1 phase, 24 spaces, 24 circuits, 200A convertible main breaker, PoN, NEMA1, wide gutter

QO124M200PWG WITH 125A MB

SQDQO124M200PWG125 QO124M200PWG125 785901611196
251.67 / EA
http://schema.org/OutOfStock

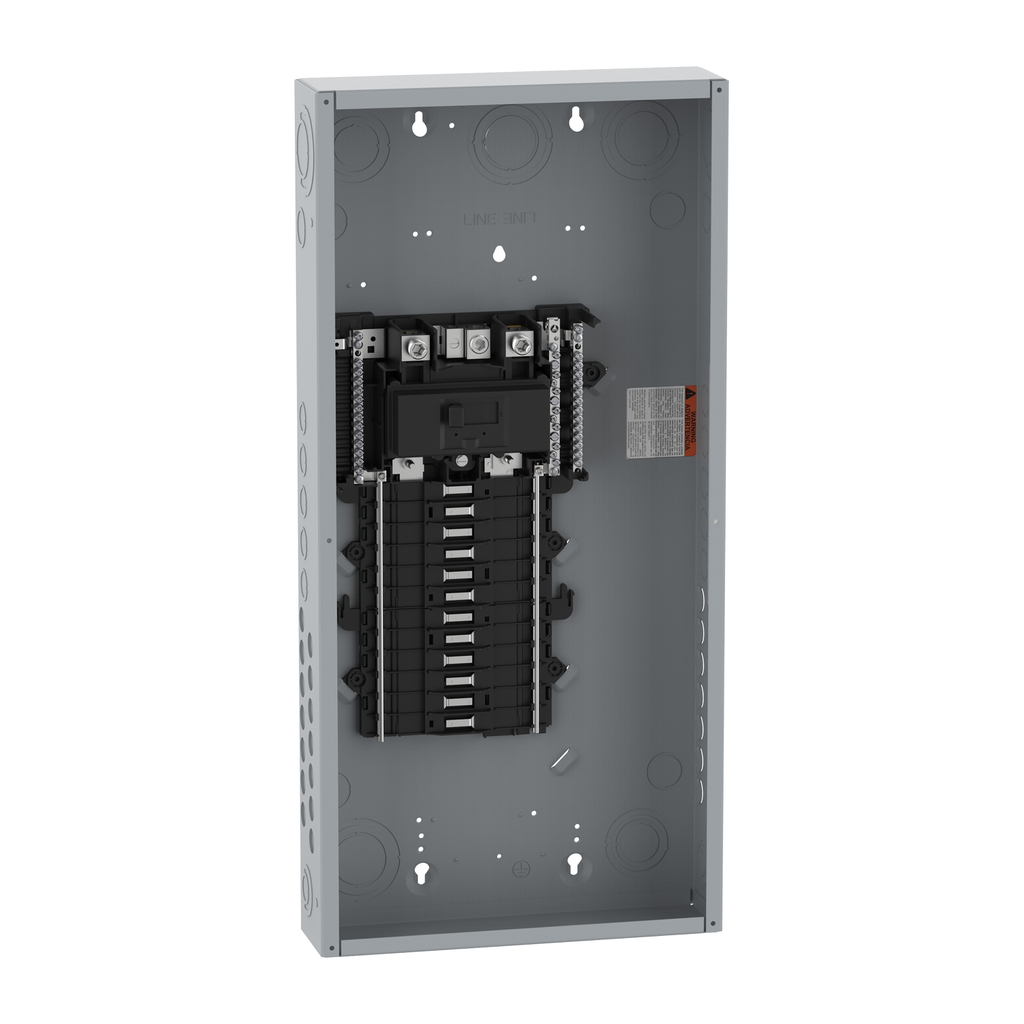

Mayer-DDS-Load center, QO, 1 phase, 24 spaces, 24 circuits, 200A convertible main breaker, PoN, NEMA1, wide gutter-1
  • Country of Origin: USA
  • Depth: 3.75 in
  • Height: 29.86 in
  • Number of Circuits: 24
  • Number of Spaces: 24
  • Short Circuit Current Rating: 22 kA
  • Width: 14.25 in
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 24 spaces and 24 circuits. This system provides a 200A convertible main breaker in a NEMA 1 enclosure. It also includes plug on neutral, wide gutter, and is UL rated.
QTY
  • Product Description
  • Features
  • Specifications
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 24 spaces and 24 circuits. This system provides a 200A convertible main breaker in a NEMA 1 enclosure. It also includes plug on neutral, wide gutter, and is UL rated.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2212001
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : N/A
    • Take-Back : No
    • Eu Rohs Directive : Compliant with Exemptions
  • Specifications
    • Country of Origin : United States
    • Width : 14.25 in
    • Height : 29.86 in
    • Range Of Product : QO
    • Product Or Component Type : Load Center
  • Complementary
    • Height : 29.86 in
    • Phase : 1 phase
    • Tightening Torque : Cover 20 lb.in
    • Number Of Circuits : 24
    • Number Of Spaces : 24
    • Short-Circuit Current : 22 kA
    • Number Of Tandem Circuit Breakers : 12
    • Line Rated Current : 200 A
    • Width : 14.25 in
    • Depth : 3.75 in
    • Load Center Type : PoN Convertible Mains (breaker)
    • Device Composition : grounding bar (ordered separately)
    • Box Number : 9
  • Environment
    • Product Certifications : UL Listed
    • Ambient Air Temperature For Operation : -5 °C || 40 °C
    • Nema Degree Of Protection : NEMA 1 indoor enclosure
