Load center, QO, 1 phase, 24 spaces, 24 circuits, 100A convertible main breaker, PoN, NEMA1, combo cover, UL, value pack

QO PLUG-ON NEUT VALPK INDR 100

SQDQO124M100PCVP QO124M100PCVP 785901978930
193.91 / EA
http://schema.org/OutOfStock

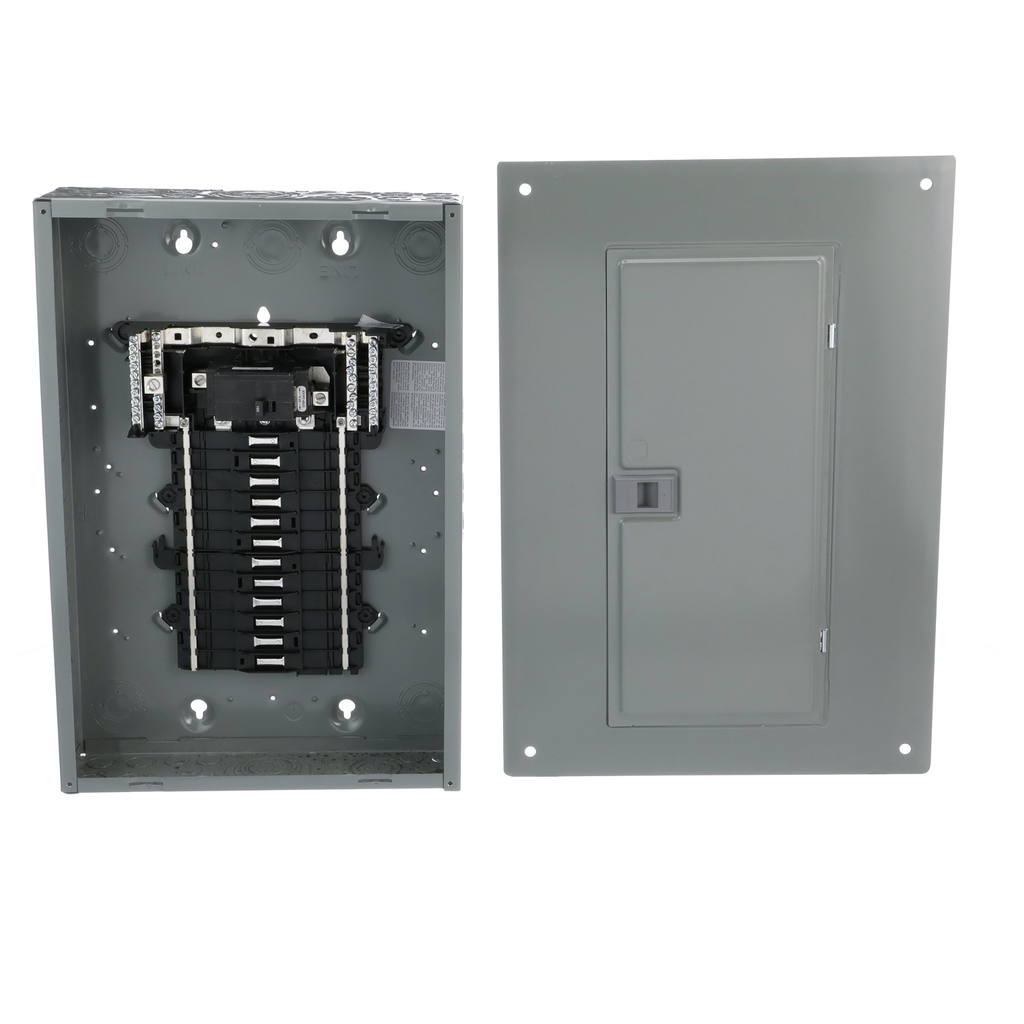

Mayer-DDS-Load center, QO, 1 phase, 24 spaces, 24 circuits, 100A convertible main breaker, PoN, NEMA1, combo cover, UL, value pack-2
  • Certifications: UL
  • Enclosure Material: Welded Sheet Steel
  • Height: 531 mm
  • Line Rated Current: 100 A
  • Material: Tin Plated Copper: Busbar
  • Number of Circuits: 24
  • Number of Phases: 1
  • Short Circuit Current: 22 kA
  • Width: 362 mm
QO® Circuit Breaker Load Centers, QO124M100PCVP, from Square D® are Underwriters Laboratories (UL) Listed and CSA rated panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 24 spaces and 24 circuits. This system provides a 100A convertible main breaker in a NEMA 1 enclosure. It also includes plug on neutral, combination cover, and is UL rated. This product is a value pack.
QTY
  • Product Description
  • Specifications
QO® Circuit Breaker Load Centers, QO124M100PCVP, from Square D® are Underwriters Laboratories (UL) Listed and CSA rated panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 24 spaces and 24 circuits. This system provides a 100A convertible main breaker in a NEMA 1 enclosure. It also includes plug on neutral, combination cover, and is UL rated. This product is a value pack.
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2212001
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Circularity Profile : N/A
    • Eu Rohs Directive : Compliant
  • Specifications
    • Range Of Product : QO
    • Provided Equipment : load center 1 ) 24P 125 A 120/240 V AC || circuit-breaker 3 ) 1P 20 A 120 V AC downstream || circuit-breaker 2 ) 2P 30 A 120/240 V AC downstream
    • Product Or Component Type : Load Center
    • Cover Type : combination flush/surface cover
  • Complementary
    • Height : 531 mm
    • Tightening Torque : Cover 20 lb.in
    • Electrical Connection : lugs
    • Number Of Circuits : 24
    • Number Of Spaces : 24
    • Phase : 1 phase
    • Short-Circuit Current : 22 kA
    • Number Of Tandem Circuit Breakers : 0
    • Material : tin plated copper: busbar
    • Surface Finish : baked enamel Gray
    • Line Rated Current : 100 A
    • Enclosure Material : welded sheet steel
    • Awg Gauge : AWG 6...AWG 2/0 aluminium/copper
    • Width : 362 mm
    • Wiring Configuration : 3-wire
    • Load Center Type : PoN Convertible Mains (breaker)
    • Device Composition : grounding bar (ordered separately)
    • Box Number : 7
  • Environment
    • Product Certifications : UL Listed
    • Nema Degree Of Protection : NEMA 1 indoor
    • Ambient Air Temperature For Operation : -5 °C || 40 °C
