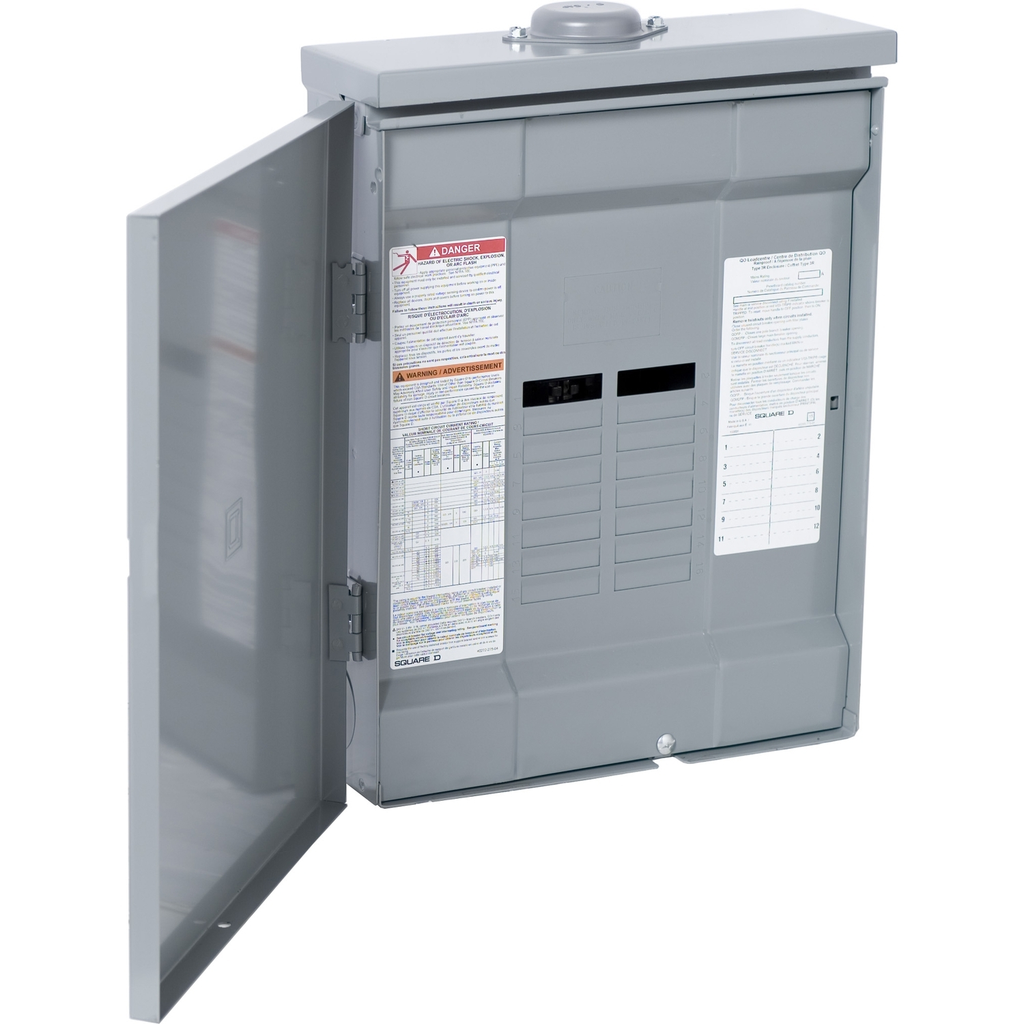

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 12 spaces and 12 circuits. This system provides 100A convertible main lugs in a NEMA 3R enclosure. This product is CSA and UL rated.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Conformance Attributes
• Product Certifications : cULus, UL Listed
• Complementary Attributes
• Line Rated Current : 125 A
• Ue Rated Operational Voltage : 120/240 V AC
• Important Information Attributes
• Persona Type Ids : EU, EUA, OM, SC
• Persona Type Names : End User, Consumer, Original Equipment Manufacturer, Electrician
• Carbon Footprint Of The Distribution Phase A4 : 3.3364125, 3 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 1 kg CO2 eq., 1.0348466912
• Carbon Footprint Of The Installation Phase A5 : 0.0077879691, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 71 kg CO2 eq., 71.2236617647
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0.1 kg CO2 eq., 0.087341
• Local Data Status : Publishable
• Local Publishable Date : 2025-12-16
• Global Commercial Status : Commercialised
• Return Indicator : Y
• Stocking Flag : N
• H And D Domain : Safety
• H And D Subrange : COM
• H And D Enrichment Assignment : no
• H And D Enrichment Function : ENCLOSURES
• H And D Enrichment Class 3 : Load centers (equipped)
• H And D Enrichment Class 4 : Three-phase main lugs only load center
• Legacy Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : Outside of Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 2436
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : No
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : COMMERCIAL
• Market Segmentation : Commercial
• Product Kit Identifier : N
• Awg Gauge : AWG 4...AWG 2/0 aluminium/copper
• Box Number : 4RB
• Cover Type : surface cover
• Device Composition : grounding bar (factory installed)
• Electrical Connection : lugs
• Enclosure Material : welded galvannealed steel
• Energy Efficiency Optimized : False
• Load Center Type : main lugs
• Number Of Circuits : 12
• Number Of Spaces : 12
• Phase : 3 phase 4 wires
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : Load Center
• Range Of Product : QO
• Returnability : Yes
• Software Version : EIME v5.9.4
• Sustainable Packaging : No
• Tightening Torque : main lugs 50 lb.in, AWG 4...AWG 2/0, aluminium/copper
• Total Lifecycle Carbon Footprint : 76 kg CO2 eq.
• Warranty In Months : 18
• Pep Code : ENVPEP2212001EN
• Database Version : 2022-01
• Pep Verification Date : 2023-08-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent external review
• Data Source : extrapolated product
• Functional Unit Description : Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 858mm×361mm×95mm, comply with UL 67 and CSA22.2 with an available offer:& 10•Suitable for use on 120/240 Vac and 48 Vdc systems& 10•Rated 30 to 400 amps 2 to 60 circuits& 10•3/4" circuit breaker width& 10•Single and three phase
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Product Weight In G2 : 9870
• Reference Lifetime In Y2 : 20
• Energy Model Manufacturing A1 A3 2 : Energy model used: Lexington
• Energy Model Installation A5 2 : Electricity mix; AC; consumption mix, at consumer; 120V; US
• Energy Model Use B6 2 : Electricity mix; AC; consumption mix, at consumer; 120V; US
• Energy Model End Of Life C1 C4 2 : Electricity mix; AC; consumption mix, at consumer; 120V; US
• Offer Owner Code : 190788
• Height Nominal : 575 mm
• Width Nominal : 479 mm
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 2 : 1.0634
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2 : 1.1052
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 2 : 1.1758
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2 : 1.1052
• Air Pollution M3 Operational Energy Use B6 2 : 7.4172
• Water Pollution M3 Manufacturing A1 A3 2 : 3394.575
• Water Pollution M3 Operational Energy Use B6 2 : 4.3059
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
• Ambient Air Temperature For Operation : -5 °C, 40 °C
• Take Back : Nej
• Recycled Metal Content At Cr Level : 0 %
• Mercury Free : Yes
• Carbon Footprint : 75.690049925
• Environmental Disclosure : ENVPEP2212001EN
• Eu Rohs Directive : Compliant By Exemption
• Nema Degree Of Protection : NEMA 3R weatherproof enclosure
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2212001EN
• Pep Verification Date : 2023-08-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Phase : 3 phase 4 wires
• Product Or Component Type : Load Center
• Range Of Product : QO
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
