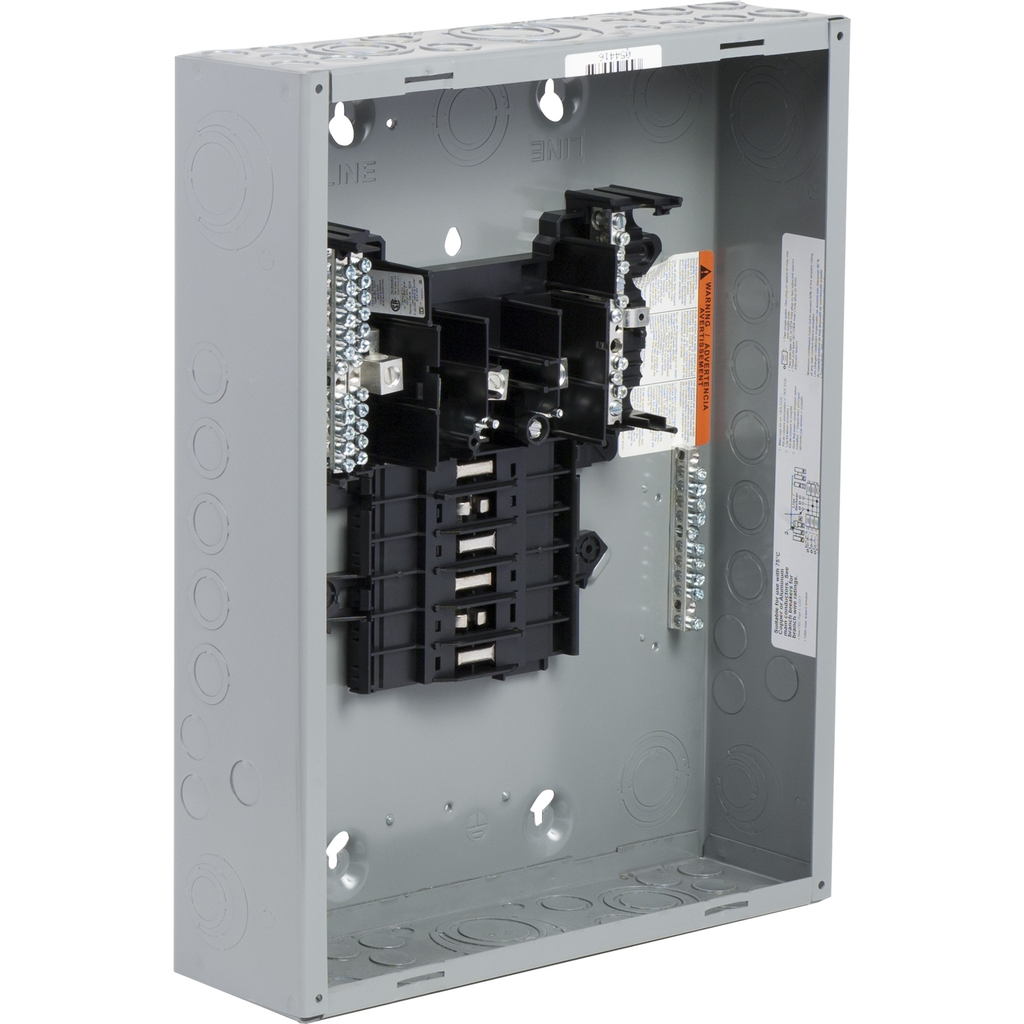

Load center, QO, 3 phase, 12 spaces, 24 circuits, 100A convertible main lugs, NEMA1, CSA

LOADCTR QO MLO 240V 100A 3PH C

SQDQO312ML1 QO312ML1 785901751052
335.39 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Load center, QO, 3 phase, 12 spaces, 24 circuits, 100A convertible main lugs, NEMA1, CSA-1
  • Country of Origin: USA
  • Cover Type: Order Separately
  • Enclosure Material: Welded Sheet Steel
  • Height: 455 mm
  • Number of Circuits: 24
  • Number of Spaces: 12
  • Warranty Length: 18 mth
  • Width: 362 mm
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 12 spaces and 12 circuits. This system provides 100A convertible main lugs in a NEMA 1 enclosure. This product is CSA and UL rated.
QTY
  • Product Description
  • Features
  • Specifications
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 12 spaces and 12 circuits. This system provides 100A convertible main lugs in a NEMA 1 enclosure. This product is CSA and UL rated.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Specifications
    • Country of Origin : United States
    • Width : 362 mm
    • Height : 455 mm
    • Range Of Product : QO
    • Product Or Component Type : Load Center
    • Cover Type : order separately
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2212001
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : N/A
    • Take-Back : No
    • Eu Rohs Directive : Compliant with Exemptions
  • Complementary
    • Height : 455 mm
    • Phase : 3 phase 4 wires
    • Tightening Torque : main lugs 50 lb.in, AWG 4...AWG 2/0, aluminium/copper || Cover 20 lb.in
    • [Ue] Rated Operational Voltage : 120/240 V AC
    • Electrical Connection : lugs
    • Number Of Circuits : 24
    • Number Of Spaces : 12
    • Number Of Tandem Circuit Breakers : 0
    • Line Rated Current : 125 A
    • Enclosure Material : welded sheet steel
    • Awg Gauge : AWG 4...AWG 2/0 aluminium/copper
    • Width : 362 mm
    • Load Center Type : main lugs
    • Device Composition : grounding bar (ordered separately)
    • Box Number : 7
  • Contractual warranty
    • Warranty : 18 months
