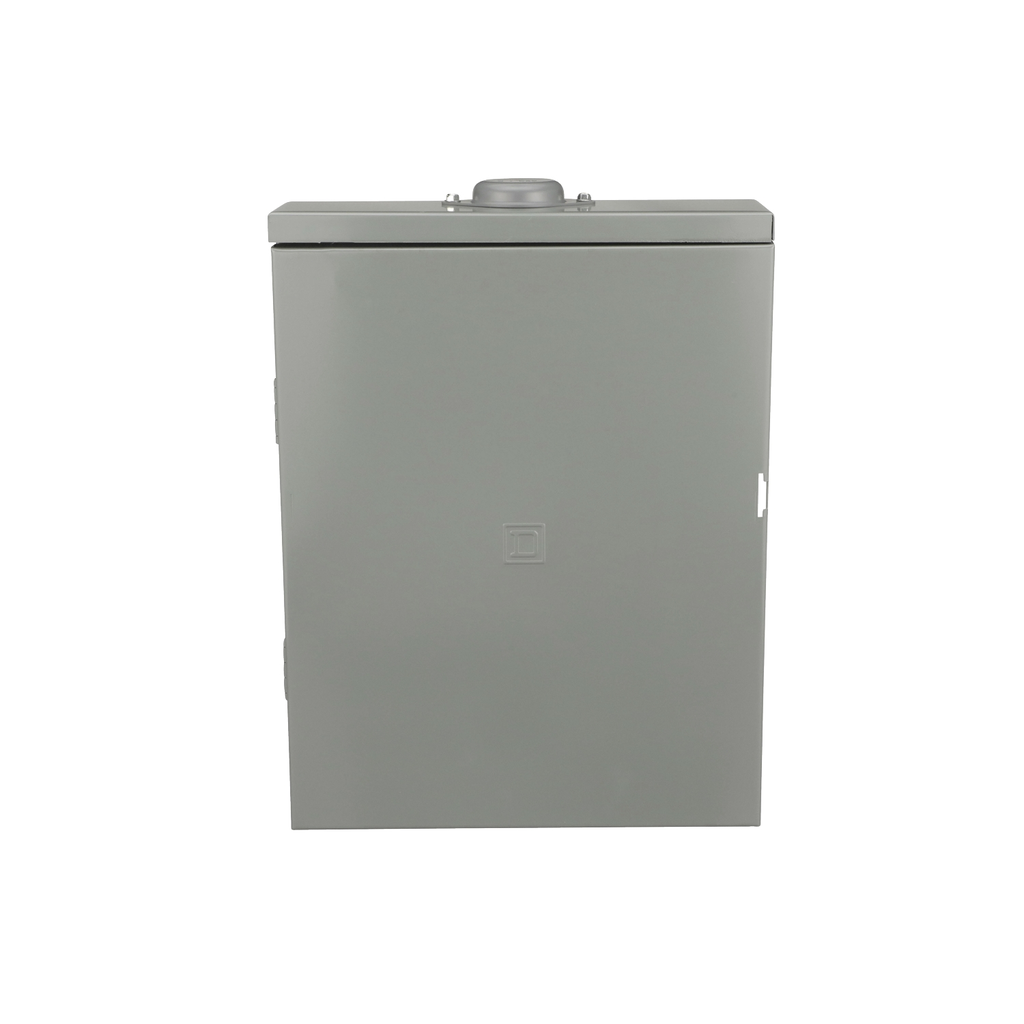

Load center, QO, 1 phase, 6 spaces, 12 circuits, 125A convertible main breaker, NEMA3R, feedthru lugs

LD CTR QO MB 240V 125A 1PH 6SP

SQDQO1612M125FTRB QO1612M125FTRB 785901868163
461.84 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Load center, QO, 1 phase, 6 spaces, 12 circuits, 125A convertible main breaker, NEMA3R, feedthru lugs-2
  • Country of Origin: USA
  • Cover Type: Surface Cover
  • Depth: 108 mm
  • Enclosure Material: Steel
  • Height: 492 mm
  • Net Weight: 11.340 kg
  • Number of Circuits: 12
  • Number of Spaces: 6
  • Short Circuit Current Rating: 22 kA
  • Surface Finish: Baked Enamel Gray
  • Warranty Length: 18 mth
  • Weight: 11.340 kg
  • Width: 375 mm
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 6 spaces and 12 circuits. This system provides a 125A convertible main breaker in a NEMA 3R enclosure. It also includes a ground bar, and is UL rated. QO load center is UL Listed.
QTY
  • Product Description
  • Features
  • Specifications
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 6 spaces and 12 circuits. This system provides a 125A convertible main breaker in a NEMA 3R enclosure. It also includes a ground bar, and is UL rated. QO load center is UL Listed.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL Listed
    • Ambient Air Temperature For Operation : -5 °C || 40 °C
    • Nema Degree Of Protection : NEMA 3R weatherproof enclosure
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2212001
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : N/A
    • Take-Back : No
    • Eu Rohs Directive : Compliant with Exemptions
  • Complementary
    • Height : 492 mm
    • Phase : 1 phase 3 wires
    • [Ue] Rated Operational Voltage : 120/240 V AC
    • Electrical Connection : feed-thru lugs
    • Number Of Circuits : 12
    • Number Of Spaces : 6
    • Net Weight : 11.340 kg
    • Short-Circuit Current : 22 kA
    • Number Of Tandem Circuit Breakers : 6
    • Material : tin plated copper: busbar
    • Surface Finish : baked enamel Gray
    • Line Rated Current : 125 A
    • Enclosure Material : welded galvannealed steel
    • Awg Gauge : AWG 4...AWG 2/0 aluminium/copper
    • Width : 375 mm
    • Depth : 108 mm
    • Load Center Type : main breaker
    • Device Composition : grounding bar (ordered separately)
    • Box Number : 3R
  • Specifications
    • Country of Origin : United States
    • Width : 375 mm
    • Height : 492 mm
    • Weight : 11.340 kg
    • Range Of Product : QO
    • Product Or Component Type : Load Center
    • Cover Type : surface cover
