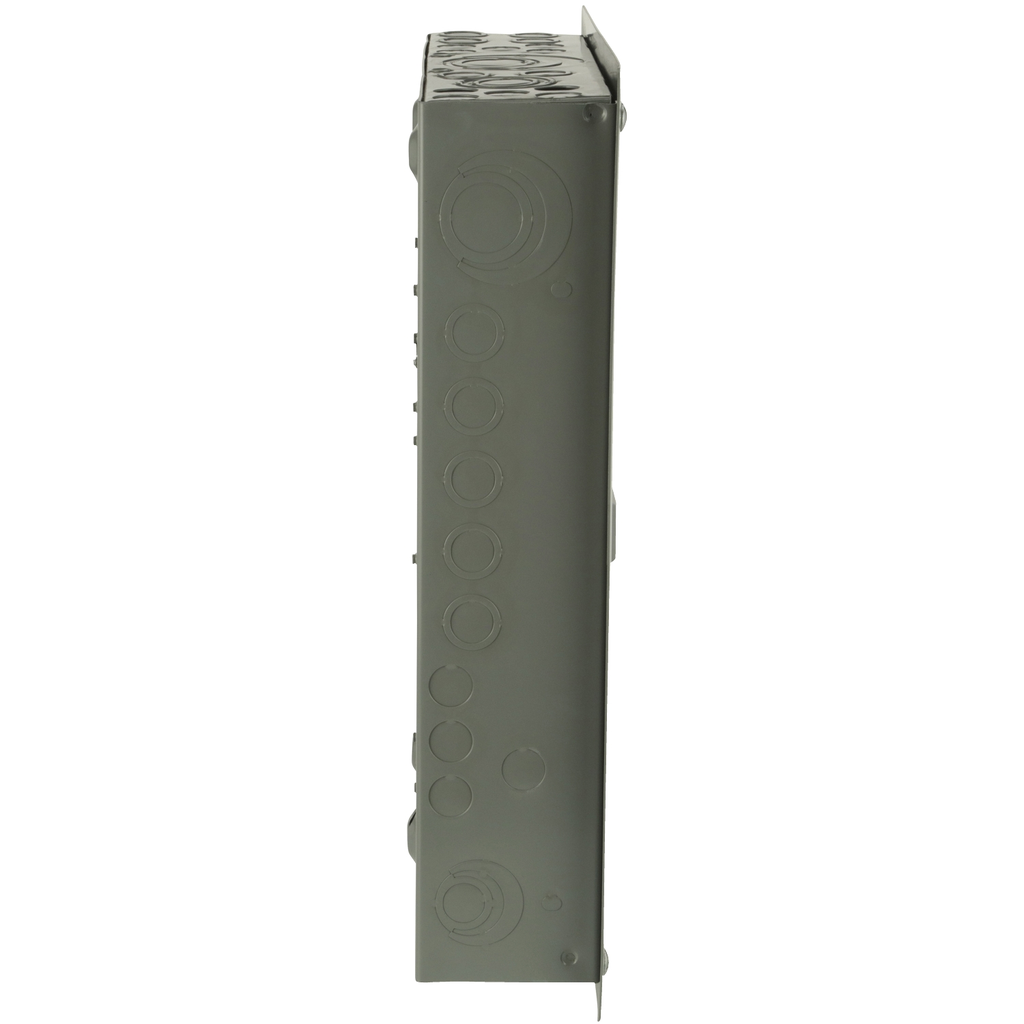

Load center, QO, 1 phase, 12 spaces, 24 circuits, 100A convertible main breaker, NEMA1, UL

12 CIR LOADCENTER W/MAIN

SQDQO112M100P QO112M100P 785901595878
103.84 / EA
http://schema.org/OutOfStock
Mayer-DDS-Load center, QO, 1 phase, 12 spaces, 24 circuits, 100A convertible main breaker, NEMA1, UL-3
  • Certifications: UL
  • Depth: 95 mm
  • Height: 379 mm
  • Line Rated Current: 100 A
  • Net Weight: 4.610 kg
  • Number of Circuits: 24
  • Number of Phases: 1
  • Short Circuit Current: 22 kA
  • Width: 362 mm
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 12 spaces and 24 circuits. This system provides a 100A convertible main breaker in a NEMA 1 enclosure. This product is UL rated.
QTY
  • Product Description
  • Specifications
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 12 spaces and 24 circuits. This system provides a 100A convertible main breaker in a NEMA 1 enclosure. This product is UL rated.
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2212001
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Circularity Profile : N/A
    • Eu Rohs Directive : Compliant
  • Complementary
    • Height : 379 mm
    • Tightening Torque : Cover 20 lb.in
    • Number Of Circuits : 24
    • Number Of Spaces : 12
    • Phase : 1 phase
    • Net Weight : 4.610 kg
    • Short-Circuit Current : 22 kA
    • Number Of Tandem Circuit Breakers : 12
    • Line Rated Current : 100 A
    • Width : 362 mm
    • Depth : 95 mm
    • Load Center Type : PoN Convertible Mains (breaker)
    • Device Composition : grounding bar (ordered separately)
    • Box Number : 5
  • Specifications
    • Range Of Product : QO
    • Product Or Component Type : Load Center
  • Environment
    • Product Certifications : UL Listed
    • Nema Degree Of Protection : NEMA 1 indoor
    • Ambient Air Temperature For Operation : -5 °C || 40 °C
