Generator panel, QO, 1 phase, 40 spaces, 80 circuits, 100A main breaker, PoN, NEMA1, cover with door, CSA

Generator panel, QO, 1 phase,

SQDQOGP3P604436100P QOGP3P604436100P 785901667025
1000.00 / EA
http://schema.org/OutOfStock

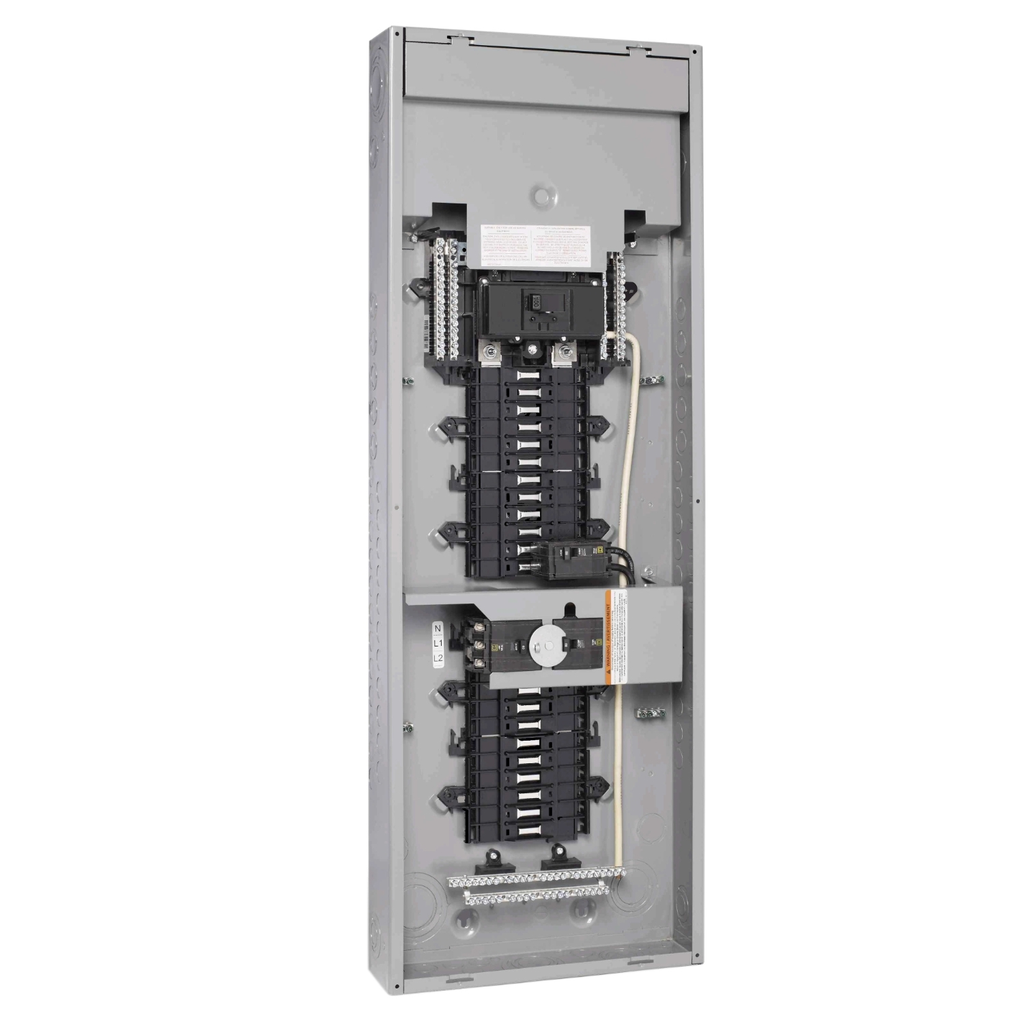

Mayer-DDS-Generator panel, QO, 1 phase, 40 spaces, 80 circuits, 100A main breaker, PoN, NEMA1, cover with door, CSA-1
  • Country of Origin: USA
  • Depth: 95 mm
  • Height: 1000 mm
  • Number of Circuits: 80
  • Number of Spaces: 40
  • Short Circuit Current Rating: 10 kA
  • Width: 362 mm
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase generator panel has 40 spaces and 80 circuits. This system provides 100A main breaker in a NEMA 1 enclosure. It also includes a cover with door, and is CSA rated.
QTY
  • Product Description
  • Features
  • Specifications
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase generator panel has 40 spaces and 80 circuits. This system provides 100A main breaker in a NEMA 1 enclosure. It also includes a cover with door, and is CSA rated.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Height : 1000 mm
    • Phase : 1 phase
    • Tightening Torque : Cover 20 lb.in
    • Number Of Circuits : 80
    • Number Of Spaces : 40
    • Short-Circuit Current : 10 kA
    • Line Rated Current : 100 A || 60 A
    • Width : 362 mm
    • Depth : 95 mm
    • Load Center Type : PoN Convertible Mains (breaker)
    • Device Composition : grounding bar (ordered separately)
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Environmental Disclosure : ENVPEP2212001
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : N/A
    • Take-Back : No
  • Specifications
    • Country of Origin : United States
    • Width : 362 mm
    • Height : 1000 mm
    • Range Of Product : QO
    • Product Or Component Type : panel
  • Environment
    • Product Certifications : CSA
    • Ambient Air Temperature For Operation : -5 °C || 40 °C
    • Nema Degree Of Protection : NEMA 1 indoor enclosure
